COURSE AIMS and GOALS

Upon completion of iTAC advance training program you will be able to:

❑ Use main functions and modules of MES Suite

❑ Understand Machine Assets module

❑ Understand Bill of Material module

❑ Create Work plan and assign the equipment

❑ Create Work Order

❑ Activate Work Order

❑ Administer Equipment

❑ Create Recipe

❑ Administer Material

❑ Understand various setting of iTAC plugin and know its limitation

❑ Use API Module

❑ Test iTAC with DEK machine

❑ Discuss technical details with customer, support sales and escalation

❑ Analyse the log files and describe the exact issue

NOTES:

Issue 2, Mar 18

Objective HO 1: Locate the hazardous areas of the machine / option.

Personal Safety

Watch the video and tick each safety item as it is demonstrated to you by

your instructor:

❑ Board clamps are sharp

❑ Wear eye protection and gloves when working with solder paste and

solvents

❑ If in doubt press the E-stop

❑ Do not bypass camsafe switches

Warning

▪ Moving machine parts can cause injury.

▪ During this course the machine may be operated with covers removed.

▪ Always remove system power prior to undertaking any work on machine.

▪ Ensure you DO NOT push or press any buttons or operate the machine until all

personnel are clear of danger

Strong Magnet warning (Machines with Linear Motors only)

▪ The linear motors inside the machine contain strong

permanent magnets. These

may interfere with pacemakers and metallic implants.

▪ These magnets could potentially erase data on credit cards, ID cards etc.

ESD hazard

▪ The printer contains Electro-Static Sensitive Devices (ESD).

▪ Do not touch any electronic component of PCB unless wearing a

correctly grounded wrist strap

Safety objective

I have been briefed on the above safety aspects and I am fully satisfied with my

responsibilities.

Sign:

Date:

Issue 2, Mar 18

Description of operation

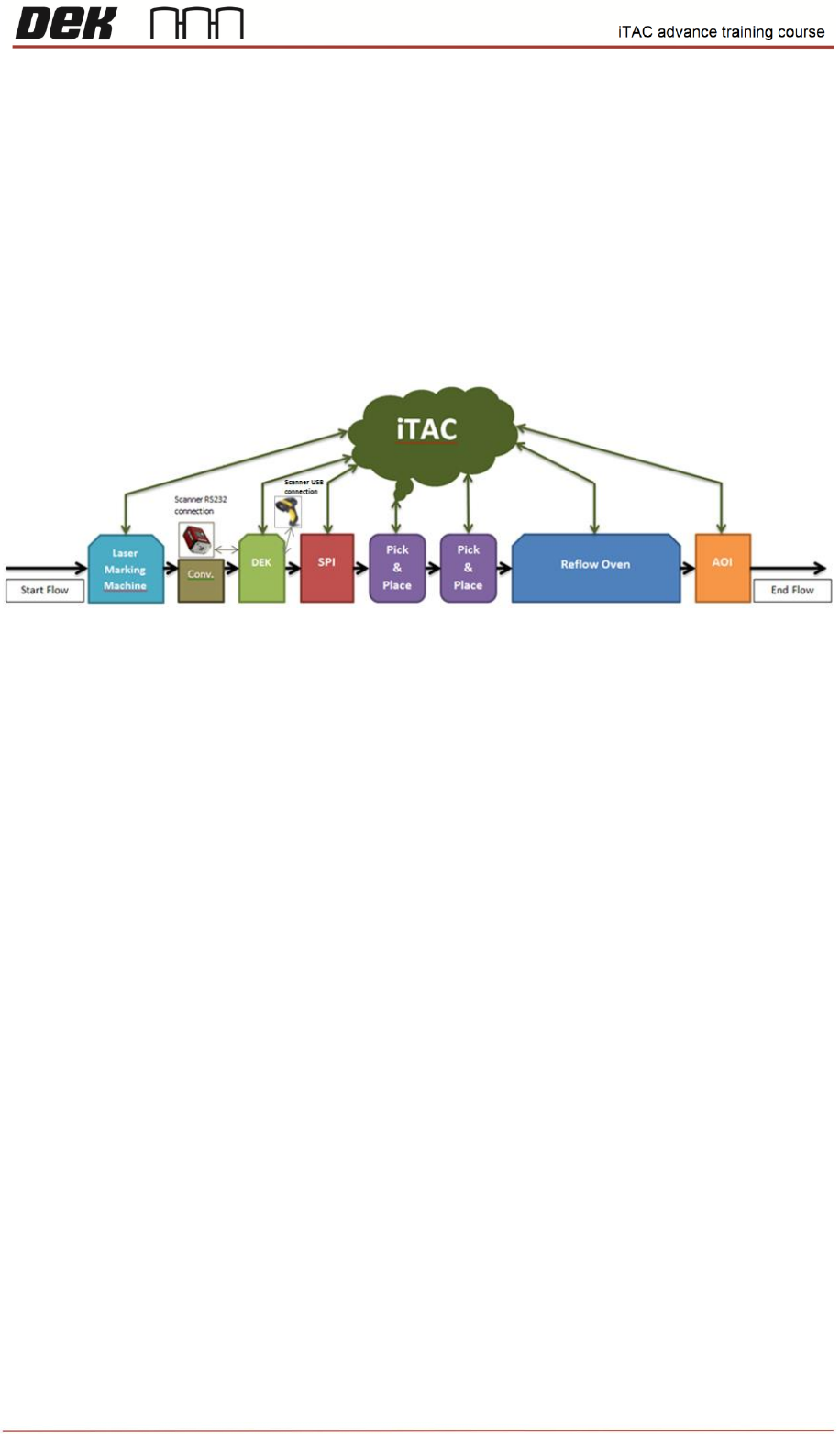

iTAC is Manufacturing Execution System (MES) software running on a master

server located remotely from the manufacturing line. Machines in the production line (including the

DEK printer) are connected to the iTAC server.

Using barcodes, the server verify the product board entering the printer and selected consumables

that are used in the print process. Once board is printed the state and required traceability data (such

as verified items, actual pressure, set pressure) is uploaded into server assigned to the barcode of

currently produced panel.
