65 Issue 2 , Mar 18 A PI Module – Testing API calls on iT A C server Objective HO 18 : Test A PI calls on all machines for all variants State booking to be tested for all variants – multiple panel – Pass/Pass, Pass/Fail,…

Issue 2, Mar 18

Multiple panel

All the barcodes are linked together.

Any of the PCB barcode can be (reference or other) read by scanner and iTAC will recognise all

others.

SN_0 – panel barcode, usually lasered on both sides (layers), that means only 1 scanner necessary.

NOTES:

REF SN = SN_1 …. POS1

Other = SN_2 …. POS2

SN_3 …. POS3

SN_4 …. POS4

REF SN = SN_0 …. POS0

Other = SN_1 …. POS1

SN_2 …. POS2

SN_3 …. POS3

SN_4 …. POS4

Issue 2, Mar 18

API Module – Testing API calls on iTAC server

Objective HO 18: Test API calls on all machines for all variants

State booking to be tested for all variants – multiple panel – Pass/Pass, Pass/Fail, Pass/Scrap and

single panel Scrap

Testing all work steps including Laser and SPI for all variants.

Testing option 4 (Interlocking), 5 (Assign), 5.1 (Merge), 6.2 (Upload process data and status) on the

printer.

List of API calls:

Laser – trAssignSerialNumberForProductOrWorkOrder

trUploadState

Printer - trGetSerialNumberUploadInfo

trCheckSerialNumberState

trVerifyMerge

trAssignSerialNumberMergeAndUploadState

trAssignSerialNumberForProductOrWorkOrder

trUploadResultDataAndRecipe

SPI – trUploadState

trUploadResultDataAndRecipe

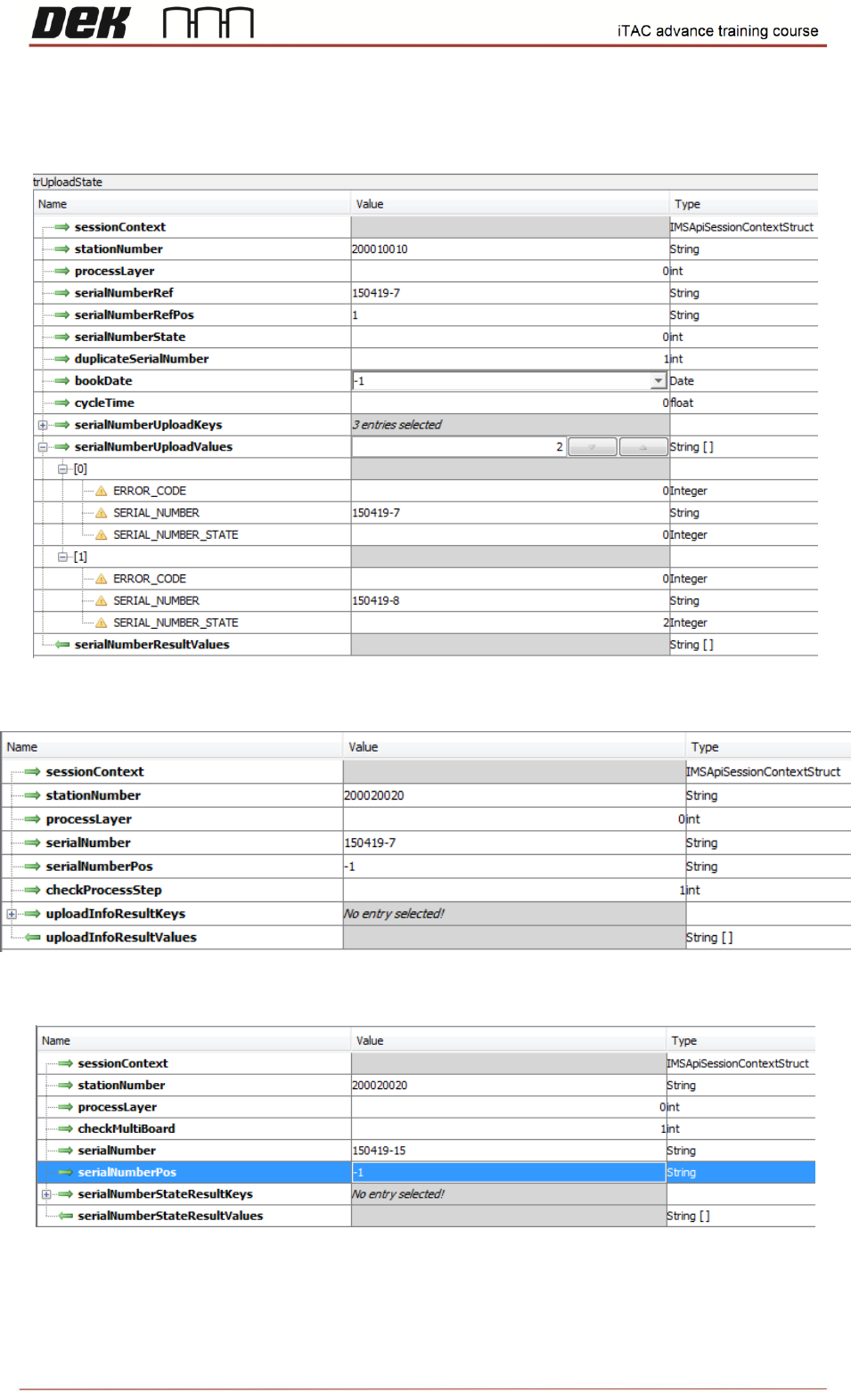

Example of APIs:

trAssignSerialNumberForProductOrWorkOrder

Issue 2, Mar 18

trUploadState

trGetSerialNumberUploadInfo

trCheckSerialNumberState
