Variant 2
Setting for both sides (layers)
iTAC Barcode Verification (Interlocking) - ENABLED
Assign Barcode - ENABLED
Activate Barcode (Merge) – ENABLED
Note: Could be used for panels pre-lasered off-site. This means that the barcodes are new to
iTAC, printer performs assign for the first time on the panel.
Variant 3
Setting for both sides (layers)
iTAC Barcode Verification (Interlocking) - ENABLED
Assign Barcode - DISABLED
Activate Barcode (Merge) – DISABLED
NOTES:
64
Issue 2, Mar 18
Multiple panel
All the barcodes are linked together.
Any of the PCB barcode can be (reference or other) read by scanner and iTAC will recognise all
others.
SN_0 – panel barcode, usually lasered on both sides (layers), that means only 1 scanner necessary.
NOTES:
REF SN = SN_1 …. POS1
Other = SN_2 …. POS2
SN_3 …. POS3
SN_4 …. POS4
REF SN = SN_0 …. POS0
Other = SN_1 …. POS1
SN_2 …. POS2
SN_3 …. POS3
SN_4 …. POS4
65
Issue 2, Mar 18
API Module – Testing API calls on iTAC server
Objective HO 18: Test API calls on all machines for all variants
State booking to be tested for all variants – multiple panel – Pass/Pass, Pass/Fail, Pass/Scrap and
single panel Scrap
Testing all work steps including Laser and SPI for all variants.
Testing option 4 (Interlocking), 5 (Assign), 5.1 (Merge), 6.2 (Upload process data and status) on the
printer.
List of API calls:
Laser – trAssignSerialNumberForProductOrWorkOrder
trUploadState
Printer - trGetSerialNumberUploadInfo
trCheckSerialNumberState
trVerifyMerge
trAssignSerialNumberMergeAndUploadState
trAssignSerialNumberForProductOrWorkOrder
trUploadResultDataAndRecipe
SPI – trUploadState
trUploadResultDataAndRecipe
Example of APIs:

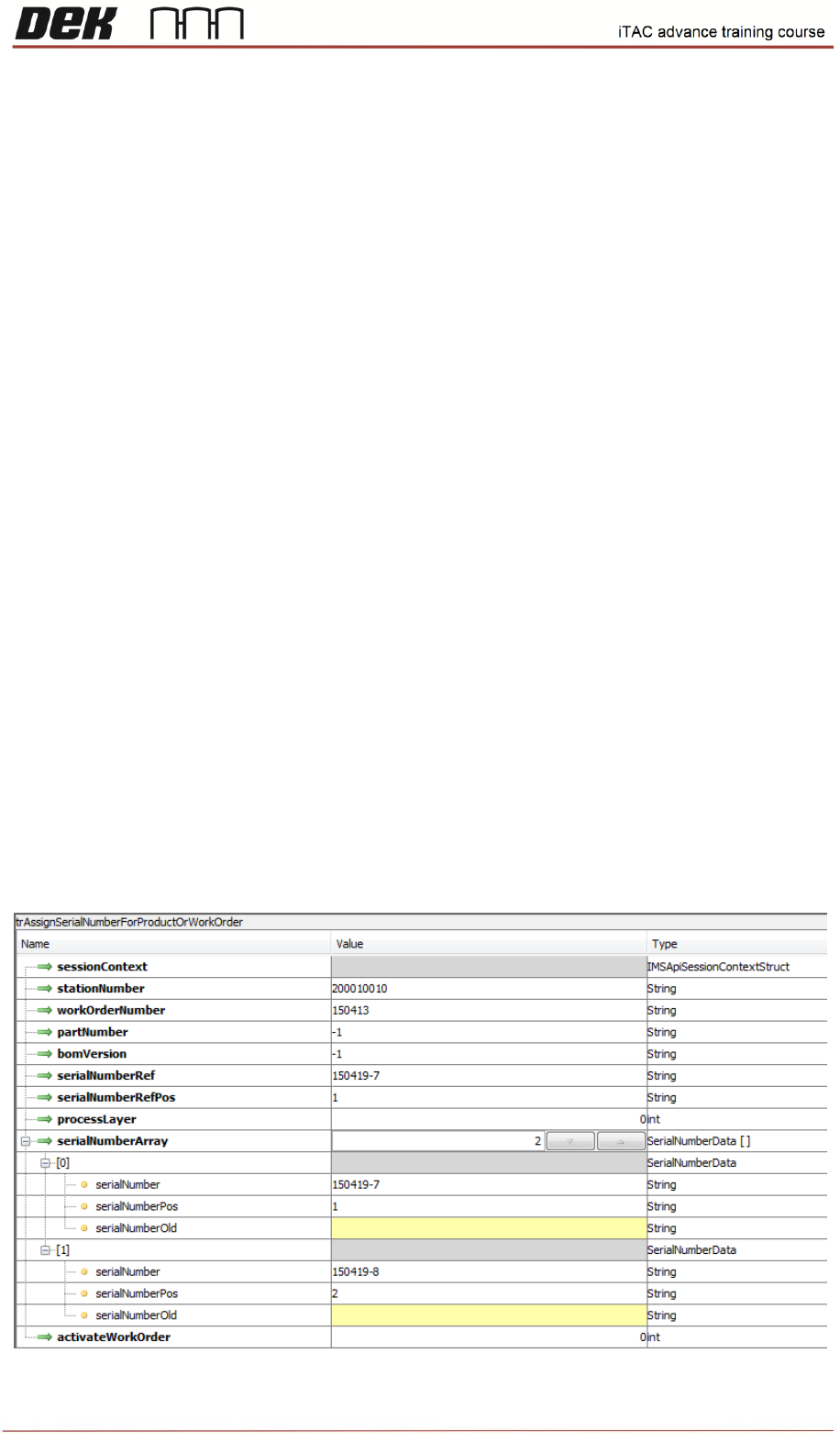

trAssignSerialNumberForProductOrWorkOrder
