Recipe

The recipe is important for product name check – contains program name for Top & Bottom

side. Also contains MES switch. MES switch determines whether station is using MES or not.

❑ Go to MDA, click on MDA types, select Recipe and then on Data Type field select Part.

❑ Then click on Load Data. In this view all the recipes are displayed for whole site.

New Recipe

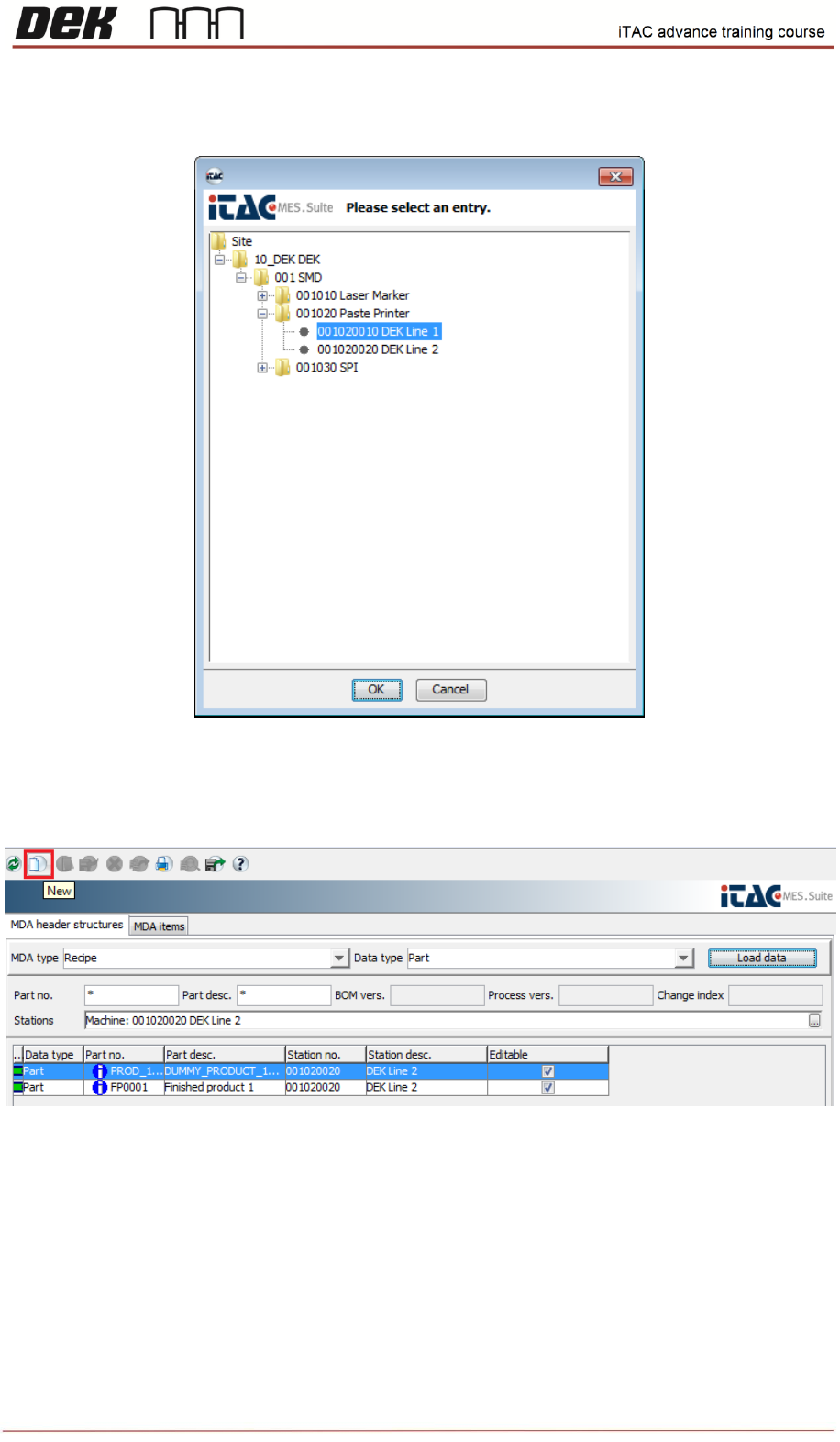

❑ Click on station and select required machine group or station.

Issue 2, Mar 18

❑ Confirm by OK, and then click on load data to display relevant recipes for selected machine

group / station.

❑ Click on new in toolbar

❑ Select required product and confirm by OK.
