维修调整要领书
8 供料器台架 供料器台车（选购品） .................................................................. 8-1
8-1 驱动基板、供料器I/F基板的更换 ........................................................................................ 8-1
8-2 驱动气缸的更换 .................................................................................................................. 8-2
8-3 驱动气缸的速度控制调整 .................................................................................................... 8-3
8-4 台架上升气缸的更换 ........................................................................................................... 8-4
8-5 台架上升气缸的速度控制调整 ............................................................................................ 8-5
8-6 台架上升检测传感器的更换 ................................................................................................ 8-5
8-7 选择器的更换 ...................................................................................................................... 8-6
8-8 机械操纵阀的更换（选购品，供料器台车） ...................................................................... 8-6
9 供料器浮动传感器的更换·调整 ............................................................................. 9-1
9-1 传感器的更换和高度调整 .................................................................................................... 9-1
9-2 传感器的动作确认调整 ....................................................................................................... 9-4
10 开关类 .............................................................................................................. 10-1
10-1 按钮开关的更换 .............................................................................................................. 10-1
10-2 紧急停止开关的更换 ....................................................................................................... 10-3
10-3 外罩开关的更换 .............................................................................................................. 10-4
10-4 安全护罩锁定气缸的更换 ................................................................................................ 10-5
10-5 协助铰链的更换 .............................................................................................................. 10-8
11 电气装置 .......................................................................................................... 11-1
11-1 电气装置部的布局 .......................................................................................................... 11-1
11-2 电气装置单元 .................................................................................................................. 11-3
11-2-1 电气装置单元A ......................................................................................................... 11-3
11-2-2 电气装置单元B ......................................................................................................... 11-9
11-3 控制单元 ....................................................................................................................... 11-21
11-3-1 CPU BOARD (40205765) ....................................................................................... 11-22
11-3-2 IO CONTROL PCB ASM (40128871) .................................................................... 11-30
11-3-3 POSITION BOARD (40196265) ............................................................................. 11-31
11-3-4 SUPERIMPOSE BOARD (40197864) ................................................................... 11-32
11-4 ATX电源 ........................................................................................................................ 11-33
11-5 电池单元 ....................................................................................................................... 11-34
11-6 XY驱动器单元 ............................................................................................................... 11-35
11-6-1 XY单元的构成 ......................................................................................................... 11-35
11-6-2 更换XY驱动器后的调整项目 .................................................................................. 11-36
11-6-3 XY伺服放大器的显示 .............................................................................................. 11-36
11-7 Z,T单元 .......................................................................................................................... 11-37
11-7-1 4吸嘴Head的构成 ................................................................................................... 11-38
11-8
传送单元 ....................................................................................................................... 11-41
11-8-1 传送单元的构成...................................................................................................... 11-41
11-8-2 CONVEYOR基板与传感器的连接 .......................................................................... 11-42
11-8-3 传送马达的连接...................................................................................................... 11-43
11-8-4 其他传感器/电磁阀/束线组列表 .............................................................................. 11-44
11-8-5 CONVEYOR PCB ASM (40128875) ...................................................................... 11-45
11-8-6 步进马达驱动器的调整 ........................................................................................... 11-46
11-9 SAFETY PCB ASM (40128872) ................................................................................... 11-47
维修调整要领书
11-10 Head单元 .................................................................................................................... 11-49
11-10-1 HEAD MAIN PCB ASM (40222388) ..................................................................... 11-49
11-10-2 HEAD RELAY PCB ASM (40222386) .................................................................. 11-50
11-11 MI BANK RELAY PCB ASM (40206240) ................................................................... 11-51
11-11-1 基板外观 ............................................................................................................... 11-51
11-11-2 SW的设定 ............................................................................................................. 11-51
11-11-3 可调电阻的调整 .................................................................................................... 11-51
11-12 CPU BOARD（3D传感器选项） ................................................................................. 11-52
11-12-1 SSD的更换 ........................................................................................................... 11-52
11-12-2 网络的设置 ........................................................................................................... 11-55
11-12-3 关闭防火墙 ........................................................................................................... 11-58
11-12-4 重新取得校准 ....................................................................................................... 11-59
11-13 其他 ............................................................................................................................ 11-60
11-13-1 更换过滤器滤芯.................................................................................................... 11-60
12 其它机器 .......................................................................................................... 12-1
12-1 LCD监视器 ...................................................................................................................... 12-1
12-1-1 LCD监视器的更换方法 ............................................................................................ 12-1
12-1-2 接触式面板的设置 ................................................................................................... 12-2
12-2 系统盘的更换 .................................................................................................................. 12-5
12-2-1 SSD的更换 .............................................................................................................. 12-5
12-2-2 网络的设置（要与JaNets通信的情况下进行设置） ............................................... 12-8
12-2-3 网络的设置（有3D传感器选项时） ...................................................................... 12-19
12-2-4 JM-50系统程序 ...................................................................................................... 12-24
12-2-5 JM-50系统版本升级要领 ....................................................................................... 12-32
12-2-6 3D传感器软件版本升级要领 .................................................................................. 12-37
12-2-7 McAfee Embedded Control ................................................................................... 12-44
13 外輪照明 ........................................................................................................... 13-1
13-1 外輪照明基板的更换 ....................................................................................................... 13-1
13-2 外輪照明的光量 .............................................................................................................. 13-2
14 3D传感器装置 ................................................................................................... 14-1
14-1 镜子、护罩玻璃的保洁 ................................................................................................... 14-1
15 引线矫正装置 ................................................................................................... 15-1
15-1 引线矫正工具 .................................................................................................................. 15-1
JM-50附录 夹具表 ................................................................................................. A-1
JM-50附录 测量仪器列表 ...................................................................................... B-1
维修调整要领书
1 XY
装置

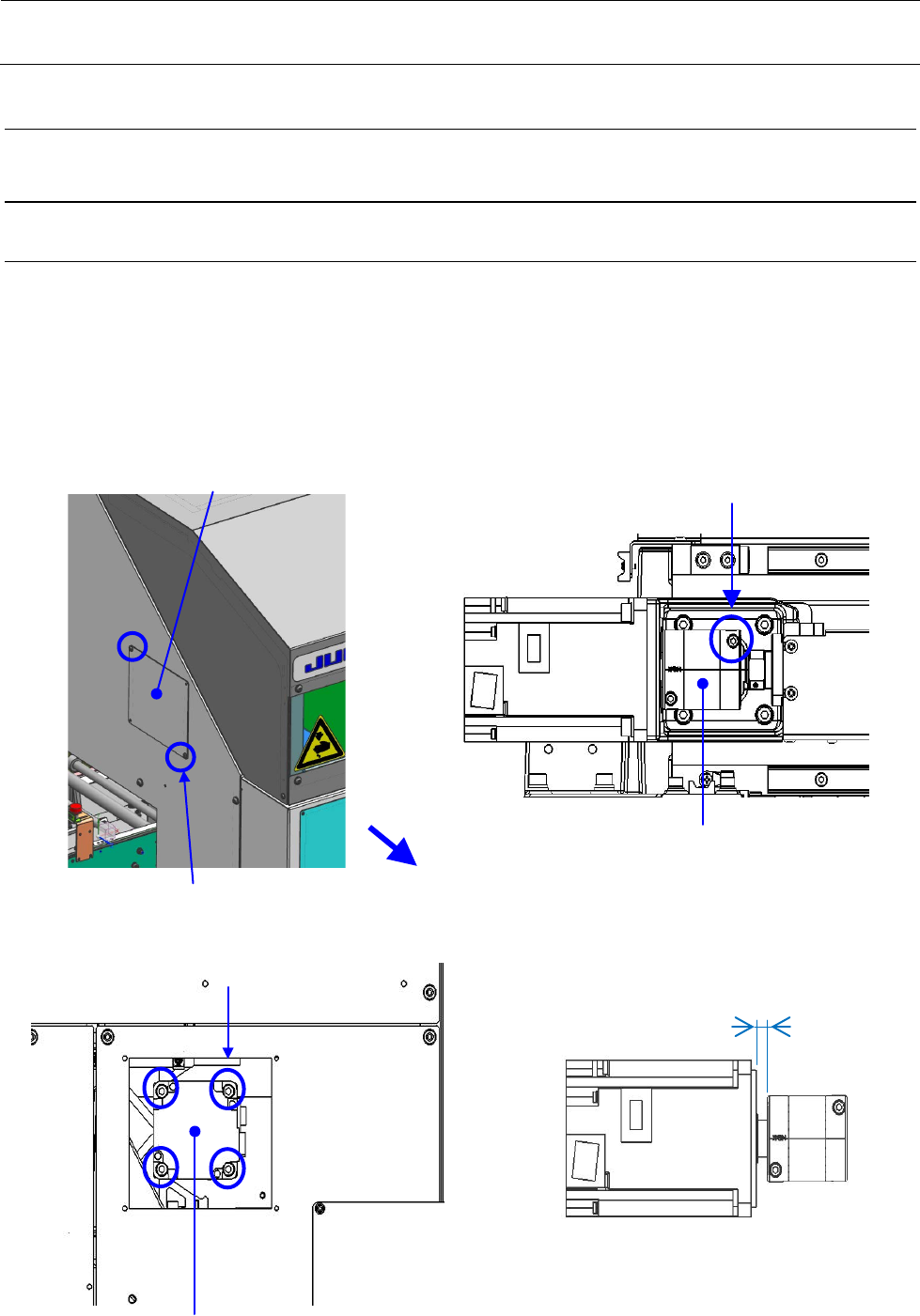

1-1 伺服电动机的更换
1-1-1 X 电动机的更换
1） 请拆下 B_COVER_SCREW，卸下 MOTOR_COVER_R。
2） 请松开 COUPRING_X_螺丝（不拆下），卸下 SERVO MOTOR 750W 线束的连接器。
3） 请拆下 SL6062042TN，更换 SERVO MOTOR 750W。
4） 安装时按相反的步骤进行。
※ COUPLING 与电动机的空隙为 7mm，COUPRING_X_螺丝的安装扭矩为 3.7Nm(图 1-1-1-4)。
要注意电动机朝向。
SERVO MOTOR 750W
SL6062042TN(×4)
图
1-1-1-1
图
1-1-1-2
图
1-1-1-3
图
COUPLING_X_螺丝
COUPLING_X
8
B_COVER_SCREW（×2）
FRONT
MOTOR_COVER_R
1-1
