100 2018 / 2019 ELECTROST A TIC FIELD METER ELECTROST A TIC FIELD METER EFM ® 51 Handheld, portable, digital electrostatic field meter , detects and measures electr ostatic fields. The electrostatic field str ength value…

2020/2021

ELECTROSTATIC VOLTMETERS

ELECTROSTATIC VOLTMETER ESVM 2000

The electrostatic voltmeter ESVM 2000 is a hand-held non-contacting voltmeter which measures the electrostatic charges

on very small objects. It is an ideal instrument for measurements on semiconductors, printed circuit boards, connector

pins and other areas where a conventional electrostatic fieldmeter cannot be used.

The ESVM 2000 comes with a high resolution sensor which provides accurate results even in very small areas.

• Dimension: 6 x 3 x 13 cm (W x H x D)

• Range: 0 up to ± 2 kV DC

• Accuracy: 5% of full scale

• Recommended Probe-to-Test

surface distance: 15 mm ± 10 mm

• Power supply: battery operated

• Display: LCD-Display ( 3 ½ digits)

• Sensor: probe (10 x 80 mm)

Includes:

ESVM 2000, probe, 9 Volt battery,

conductive carrying case, operating instructions in

German and English and calibration certificate.

Part Nr.

7100.ESVM2000 Electrostatic voltmeter ESVM 2000

CONTACT VOLTMETER ESVM 821HH

The electrostatic contact voltmeter ESVM 821 is a hand-held contact voltmeter which measures

the electrostatic charges on very small objects/surfaces. The ESVM 821 HH measures the

surface potentials on conductive or insulative objects without charge transfer to the probe.

Therefore, measurements can be performed with high accuracy.

• Dimension: 240 mm x 140 mm x 52,5 mm (H x W x D)

• Range: 0 up to ± 2 kV DC or AC (peak)

• Accuracy: < 1% of full scale

• Input resistance: > 1 x 10

ohm

• Input capacitance: < 1 x 10

-14

farad

• Output: analog ± 2 V DC

• Temperature/humidity: external temperature and humidity sensor

• Power supply: Battery or line operated

power supply 230 VAC

Includes:

ESVM821HH incl. battery, charger, carrying case,

operating instructions and calibration cerificate

Part Nr.

7100.ESVM821HH Contact voltmeter Model 821HH

application example

sample application

Video

Analog/Digital converter with USB

connector - UAD1 see page 97

Video

100

2018 / 2019

ELECTROSTATIC FIELD METER

ELECTROSTATIC FIELD METER EFM

Handheld, portable, digital electrostatic field meter, detects and

measures electrostatic fields.

The electrostatic field strength value (V/m) will be automatically

translated to the electrostatic potential (V) according to the preset

distance. An additional field strength mode is also available.

• Test method: Rotating chopper

• Test range: 0 V – ± 160 kV distance mode

0 – 800 kV/m Field strength mode

• Display: LCD display

• Operation: Battery operated

• Includes: ground cord, German and English operating

instructions and calibration certificate

Part Nr.

7100.EFM51 Electrostatic Field Meter EFM

with carrying bag

7100.EFM51.PLUS EFM

51 with conductive carrying case

EFM

51 – WALKING TEST KIT

• EFM

51 with conductive base and the measuring head MK51

• By mounting the measuring head MK51 the EFM

51 can be

used for verification measurement of body voltage (walking test)

according to IEC 61340-4-5.

• The measuring head MK51 is specially calibrated for using

the EFM

• The EFM

51 shows the positive and negative „PEAK“ value

of the measured body voltage.

Includes:

• EFM

51 with measuring head MK51 in conductive carrying case

• conductive base, test lead and hand electrode

• 9V rechargeable battery + Charger

Part Nr.

7100.EFM51.WT EFM

51 with carrying case, MK51,

base and connecting cable

Video

101

2020/2021

EFM

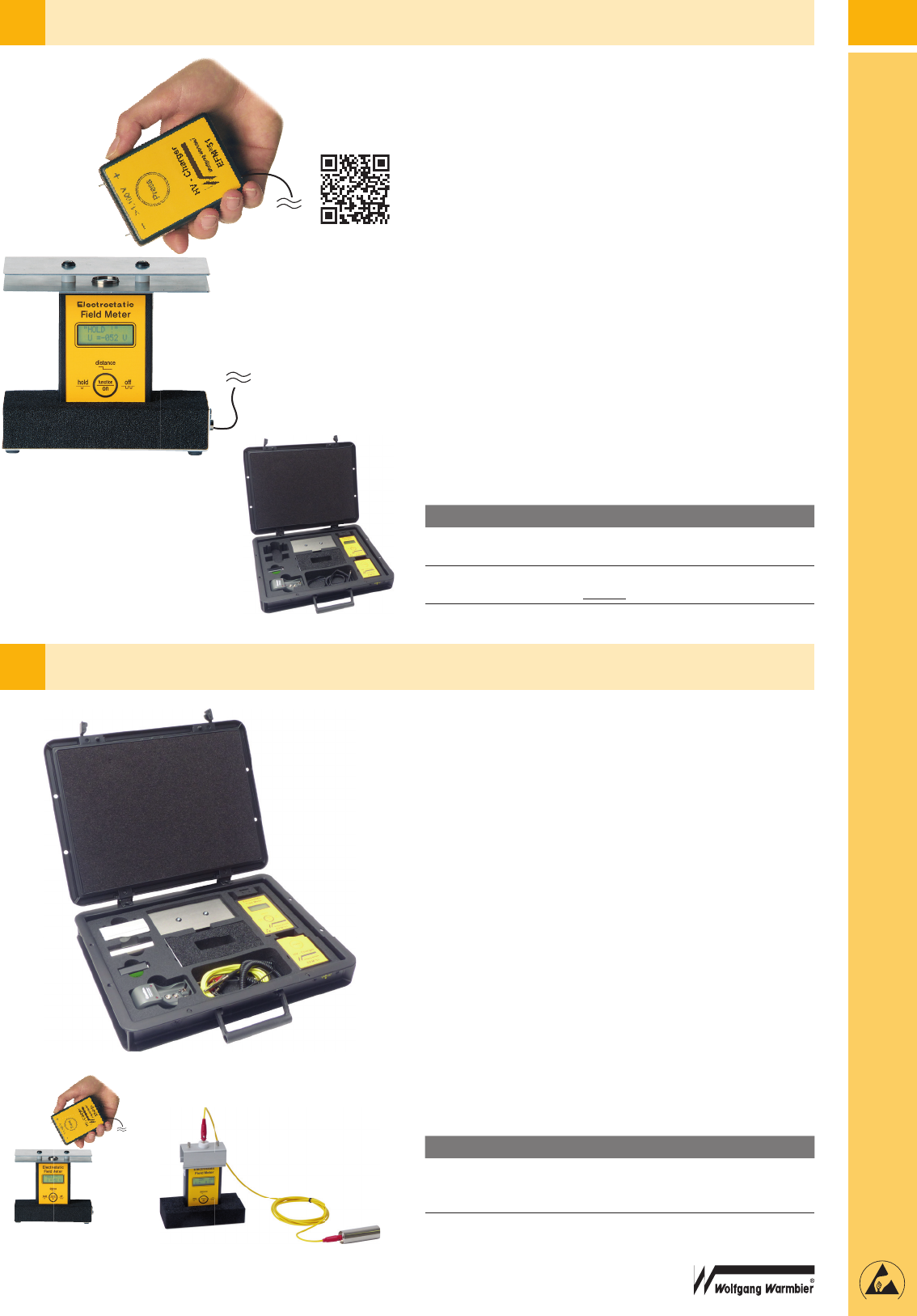

51 – CPS (CHARGED PLATE SET)

• Hand held instrument for measuring air ionizers

efficiency and offset voltage

• Measures the electrostatic decay time from

+/- 1.000 volts to +/- 100 volts

• Measures the plate potential (75x150 mm) with the attached

EFM

• Suitable for measurements inside machines

• Dimensions: 150 x 125 x 75 mm including Stand (W x H x D)

with base

Includes: EFM

51, conductive carrying case, High voltage gene-

rator +/- 1200 Volt, conductive base, charging plate,

ground connection, battery charger for 9 V batteries,

spare 9 V rechargeable battery, calibration certificate,

German and English operating instructions

Part Nr.

7100.EFM51.CPS Electrostatic ﬁ eld meter EFM

with charged plate set

7100.EFM51.CPS.SET Retroﬁ t set - Charge Plate Set

without EFM

ELECTROSTATIC FIELD METER, CHARGED PLATE MONITOR

EFM

51 – VERIFICATION KIT

Verification Kit for measuring electrostatic fields and electrostatic

charges, as well as the body voltage of a person while performing

the walking test. Additionally the decay time and the offset voltage

of ionizers can be measured.

Includes:

• EFM

51 – CPS (Charged Plate Set)

• EFM

51 – Walking Test Kit

• Calibration certificate

• Conductive carrying case

Part Nr.

7100.EFM51.VK EFM

51 with carrying case,

MK51, base, connecting cable

and charged plate set

Video
