162 2020/2021 IEC EN IEC EN 1760 mm 470 mm HANDLING AND STORAGE Width Depth Height Depth Width Height CAROUSEL STORAGE SYSTEM • Galvanized steel • Empty carousel for 12 storage racks 150/1200 series • Dimension: 1760 x 4…
161
2020/2021
IEC
EN
IEC
EN
!
SMALL COMPONENTS BOXES
COMPARTMENTED BOXES
COMPARTMENTED BOXES
• Permanent, carbon loaded, conductive material
• 6 compartments
• Stackable
Part Nr. Outer Dimensions
5150.831 266 x 365 x 305 mm (W x D x H)
6 compartments
drawer dimensions: 250 x 340 x 40 mm
831 box compartment layout - permanent conductive, black
Part Nr. Inner Dimension Compartments
5150.831.B 75 x 160 mm 6
5150.831.D 77 x 79 mm 12
5150.831.G 45 x 63 mm 25
• Permanent, carbon loaded, conductive material
• 6 compartments
• Stackable
Part Nr. Outer Dimensions
5150.810 265 x 355 x 205 mm (W x D x H)
6 compartments
drawer dimensions: 250 x 340 x 22 mm
Suitable for the SMD boxes
described on page 158.
162
2020/2021
IEC
EN
IEC
EN
1760 mm
470 mm
HANDLING AND STORAGE
Width
Depth
Height
Depth
Width
Height
CAROUSEL STORAGE SYSTEM
• Galvanized steel
• Empty carousel for 12 storage racks 150/1200 series
• Dimension: 1760 x 470 x 470 mm
• Includes a grounding cord
Part Nr. Outer Dimensions
5380.LK.1 1760 x 470 x 470 mm
STORAGE RACKS
• Galvanized Steel
• Outer dimensions: 306 x 552 x 150 mm (W x H x D)
• Empty carousel for 12 storage racks
Part Nr. Content Inner Dimension
5380.LK.1.24 24 bins 85 x 55 x 135 mm (W x H X D)
5380.LK.1.48 48 bins 63 x 35 x 135 mm (W x H X D)
5380.LK.1.60 60 bins 50 x 35 x 135 mm (W x H X D)
Storage rack with 60 bins.
163
2020/2021
IEC
EN
HANDLING AND STORAGE

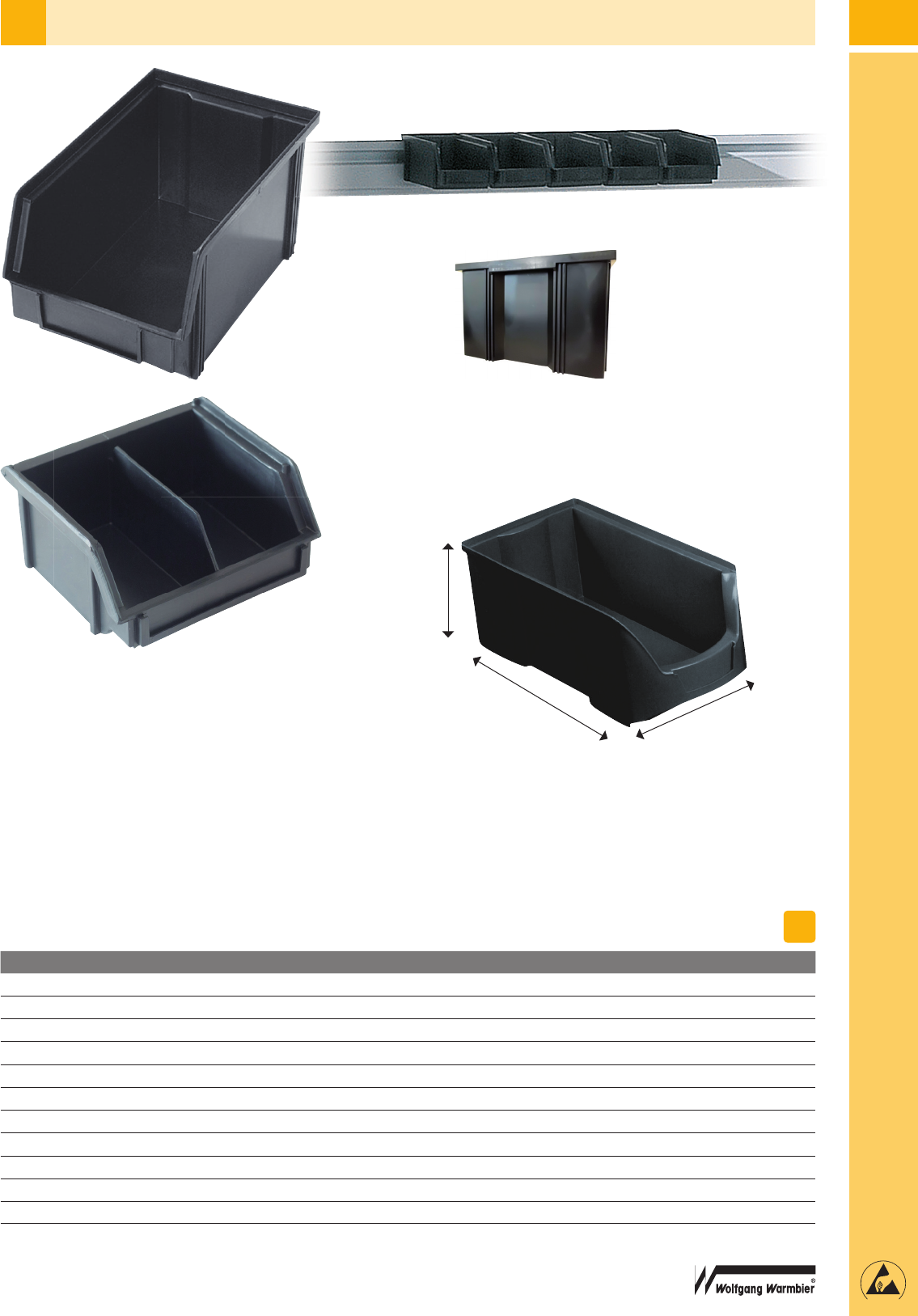

STORAGE BINS – CONDUCTIVE
• Permanent, carbon loaded, conductive Polypropylene
Part Nr. Outer Dim. (D x W x H) Inner Dim. (D x W x H) Stacked pcs per box rail suspension
5320.FA3Z 350 x 200 x 145 mm 280 x 182 x 127 mm 127 mm 12 X
5320.FA4 235 x 145 x 125 mm 180 x 127 x 108 mm 108 mm 25 X
5320.FA5 175 x 100 x 75 mm 129 x 87 x 67 mm 67 mm 42 X
5320.2 500 x 300 x 200 mm 425 x 280 x 183 mm 183 mm 6 –
5320.3 350 x 200 x 200 mm 280 x 182 x 185 mm 185 mm 8 –
5320.3Z 350 x 200 x 145 mm 280 x 182 x 127 mm 127 mm 12 –
5320.4 235 x 145 x 125 mm 180 x 127 x 108 mm 108 mm 27 X
5320.5 175 x 100 x 75 mm 129 x 87 x 67 mm 67 mm 40 X
5320.6 95 x 100 x 50 mm 60 x 87 x 44 mm 44 mm 50 X
5320.6D 95 x 100 x 50 mm 60 x (2 x 43) x 44 mm 44 mm 50 X
(5320.2 and 5320.3 include a handle).
application example
• with separator
Back with recessed grip, models with X
with additional rail suspension
Easy extraction due to rounded corners
Depth
Width
Height
