99 2020/2021 ! ELECTROST A TIC VOL TMETERS ELECTROST A TIC VOL TMETER ESVM 2000 The electrostatic voltmeter ESVM 2000 is a hand-held non-contacting voltmeter which measur es the electrostatic charges on very small object…
98
2020/2021
!
7100.ESVM100.45
ELECTROSTATIC VOLTMETER
ELECTROSTATIC VOLTMETER ESVM 1000
The electrostatic voltmeter ESVM 1000 is a microprocessor based non-contacting voltmeter which measures the electrostatic charges on very
small objects. It is an ideal instrument for measurements on semiconductors, printed circuit boards, connector pins and other areas where a
conventional electrostatic fieldmeter cannot be used.
The ESVM 1000 comes with a high resolution sensor which provides accurate results even in very small areas.
By using the special hand held probe 7100.ESVM1000.45 also the body voltage can be measured (walking test)
• Dimension: 15 x 10 x 22 cm (W x H x D)
• Range: 0 up to ± 1 kV DC or AC (Peak)
• Accuracy: 1% of full scale
• Recommended Probe-to-Test
surface distance: 2,5 mm ± 1 mm
• Power supply: power supply 230 VAC/15 VDC
• Display: LCD-Display (4 x 20 digits)
• Sensor: Side-view probe (10 x 54 mm)
• Output: analog output
Includes:
ESVM 1000 incl. hand held probe, probe (exchangeable), Power supply, conductive carrying case,
operating instructions in German and English and calibration certificate.
For using the analog output we recommend the AD-converter type 7100.UAD1 with the software
“Digilloscope” (see page 88).
Part Nr.
7100.ESVM1000 Electrostatic Voltmeter ESVM 1000, incl. hand held probe for walking test
application example
Analog/Digital converter with USB
connector - UAD1 see page 97
Video
Delivery includes hand held probe
for walking test
99
2020/2021
!
ELECTROSTATIC VOLTMETERS
ELECTROSTATIC VOLTMETER ESVM 2000
The electrostatic voltmeter ESVM 2000 is a hand-held non-contacting voltmeter which measures the electrostatic charges
on very small objects. It is an ideal instrument for measurements on semiconductors, printed circuit boards, connector
pins and other areas where a conventional electrostatic fieldmeter cannot be used.
The ESVM 2000 comes with a high resolution sensor which provides accurate results even in very small areas.
• Dimension: 6 x 3 x 13 cm (W x H x D)
• Range: 0 up to ± 2 kV DC
• Accuracy: 5% of full scale
• Recommended Probe-to-Test
surface distance: 15 mm ± 10 mm
• Power supply: battery operated
• Display: LCD-Display ( 3 ½ digits)
• Sensor: probe (10 x 80 mm)
Includes:
ESVM 2000, probe, 9 Volt battery,
conductive carrying case, operating instructions in
German and English and calibration certificate.
Part Nr.
7100.ESVM2000 Electrostatic voltmeter ESVM 2000
CONTACT VOLTMETER ESVM 821HH
The electrostatic contact voltmeter ESVM 821 is a hand-held contact voltmeter which measures
the electrostatic charges on very small objects/surfaces. The ESVM 821 HH measures the
surface potentials on conductive or insulative objects without charge transfer to the probe.
Therefore, measurements can be performed with high accuracy.
• Dimension: 240 mm x 140 mm x 52,5 mm (H x W x D)
• Range: 0 up to ± 2 kV DC or AC (peak)
• Accuracy: < 1% of full scale
• Input resistance: > 1 x 10
14
ohm
• Input capacitance: < 1 x 10
-14
farad
• Output: analog ± 2 V DC
• Temperature/humidity: external temperature and humidity sensor
• Power supply: Battery or line operated
power supply 230 VAC
Includes:
ESVM821HH incl. battery, charger, carrying case,
operating instructions and calibration cerificate
Part Nr.
7100.ESVM821HH Contact voltmeter Model 821HH
application example
sample application
Video
Analog/Digital converter with USB
connector - UAD1 see page 97
Video
100
2018 / 2019
ELECTROSTATIC FIELD METER

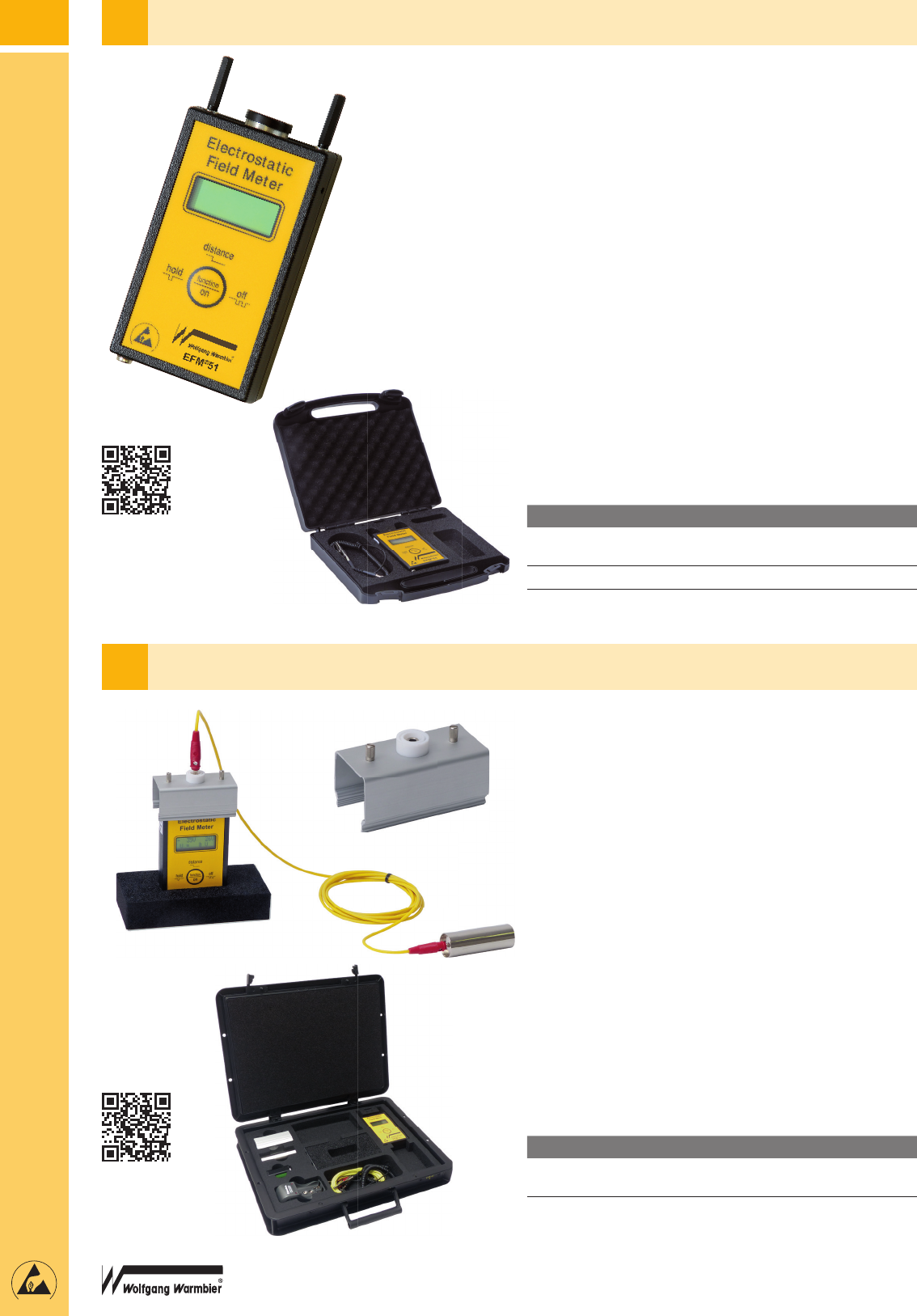

ELECTROSTATIC FIELD METER EFM
®
51
Handheld, portable, digital electrostatic field meter, detects and
measures electrostatic fields.
The electrostatic field strength value (V/m) will be automatically
translated to the electrostatic potential (V) according to the preset
distance. An additional field strength mode is also available.
• Test method: Rotating chopper
• Test range: 0 V – ± 160 kV distance mode
0 – 800 kV/m Field strength mode
• Display: LCD display
• Operation: Battery operated
• Includes: ground cord, German and English operating
instructions and calibration certificate
Part Nr.
7100.EFM51 Electrostatic Field Meter EFM
®
51
with carrying bag
7100.EFM51.PLUS EFM
®
51 with conductive carrying case
EFM
®
51 – WALKING TEST KIT
• EFM
®
51 with conductive base and the measuring head MK51
• By mounting the measuring head MK51 the EFM
®
51 can be
used for verification measurement of body voltage (walking test)
according to IEC 61340-4-5.
• The measuring head MK51 is specially calibrated for using
the EFM
®
51
• The EFM
®
51 shows the positive and negative „PEAK“ value
of the measured body voltage.
Includes:
• EFM
®
51 with measuring head MK51 in conductive carrying case
• conductive base, test lead and hand electrode
• 9V rechargeable battery + Charger
Part Nr.
7100.EFM51.WT EFM
®
51 with carrying case, MK51,
base and connecting cable
