75 2020/2021 2200.121.10.1 2200.121.10 2200.121.10.2 2200.W .3 2200.121.10.13 2200.W .5 2200.110.Y 2201.258 2201.245 2201.230 2200.113.Y 2200.111.Y 2200.115.Y GROUNDING ACCESSORIES EARTH CONNECTING BOX Earth Bonding Poin…

2020/2021

GROUNDING ACCESSORIES

• Grounding box with 7 screws

• Suitable for 4 mm ring terminal connection

• Reliable grounding cords connection to ESD ground or protective

ground

• Removable protection lid

• ESD symbol

Part Nr.

2200.B Central grounding box

Stackable banana plug socket/10 mm, 1 Mohm

resistorized snap, a 3 m cord and a banana plug.

Part Nr. Length Connection

2250.757 3 m 10 mm encapsulated snap /

banana plug socket

• Grounding Cord with protective cap

• 1 Mohm safety resistor

Part Nr. Length Connection

2250.790 1,8 m 10 mm snap/4 mm ring terminal

for table mats

2250.790.2 4,5 m 10 mm snap/4 mm ring terminal

for ﬂ oor mats

• For floor and table mats with 1 Mohm safety resistor

Part Nr. Length Connection

2250.758.1 0,75 m 10 mm snap/4 mm ring terminal

2250.758 1,5 m 10 mm snap/4 mm ring terminal

2250.758.2 3,0 m 10 mm snap/4 mm ring terminal

2250.756 1,5 m 10 mm snap/banana plug

2250.765 3,0 m 10 mm snap/banana plug

2250.762 1,5 m 10 mm snap/10 mm snap

2250.762.1 1,5 m 10 mm snap/10 mm snap without resistor

CENTRAL GROUNDING BOXGROUNDING CORD

GROUNDING CORDGROUNDING CORD

underneath

2020/2021

2200.121.10.1

2200.121.10

2200.121.10.2

2200.W.3

2200.121.10.13

2200.W.5

2200.110.Y

2201.258 2201.2452201.230

2200.113.Y2200.111.Y

2200.115.Y

GROUNDING ACCESSORIES

EARTH CONNECTING BOX

Earth Bonding Point (EBP) includes 2,0 m earthing cable

with a 4 mm ring terminal (1 Mohm resistor for every input).

Part Nr.

2200.121.10 2 x 10 mm snaps and 1 x 4 mm; banana plug socket

2200.121.10.1 With 3 x 10 mm snaps

2200.121.10.2 ith 1 x 10 mm snap and 2 x 4 mm banana plug sockets

2200.W.3 Yellow, right angle with 3 x 10 mm snaps

2200.121.10.13 2 x plug socket for 3M system; 1 x 10 mm snap

2200.W.5 1 x 10 mm snap; 2 x 4 mm banana plug socket

GROUNDING PLUG

Used for direct and easy mat grounding

Part Nr.

2200.110.Y Without cable, banana plug socket, without resistor

2200.111.Y With 2,4 m coil cord, 1 Mohm safety resistor and a 10 mm snap

2200.113.Y 2 m ﬂ at cable, 4 mm ring terminal, without resistor

2200.115.Y With 4,5 m ﬂ at cable, 1 Mohm safety resistor and a 10 mm snap (with protective cap)

2201.230 Without cable, 1 MOhm resistor; 3 x 10 mm snap

2201.245 Without cable, 1 MOhm resistor; 2 x 10 mm snap, 1 x screwed connection for 4 mm ring terminal

2201.258 Without cable, 1 MOhm resistor; 1 x 10 mm snap, 2 x 4 mm banana plug socket

2020/2021

2280.772.12

2280.774.10

2287.10.4

2287.10.10

2280.779.10

2280.771

2280.778

2280.800

2280.778.6.7 2280.778.6.11

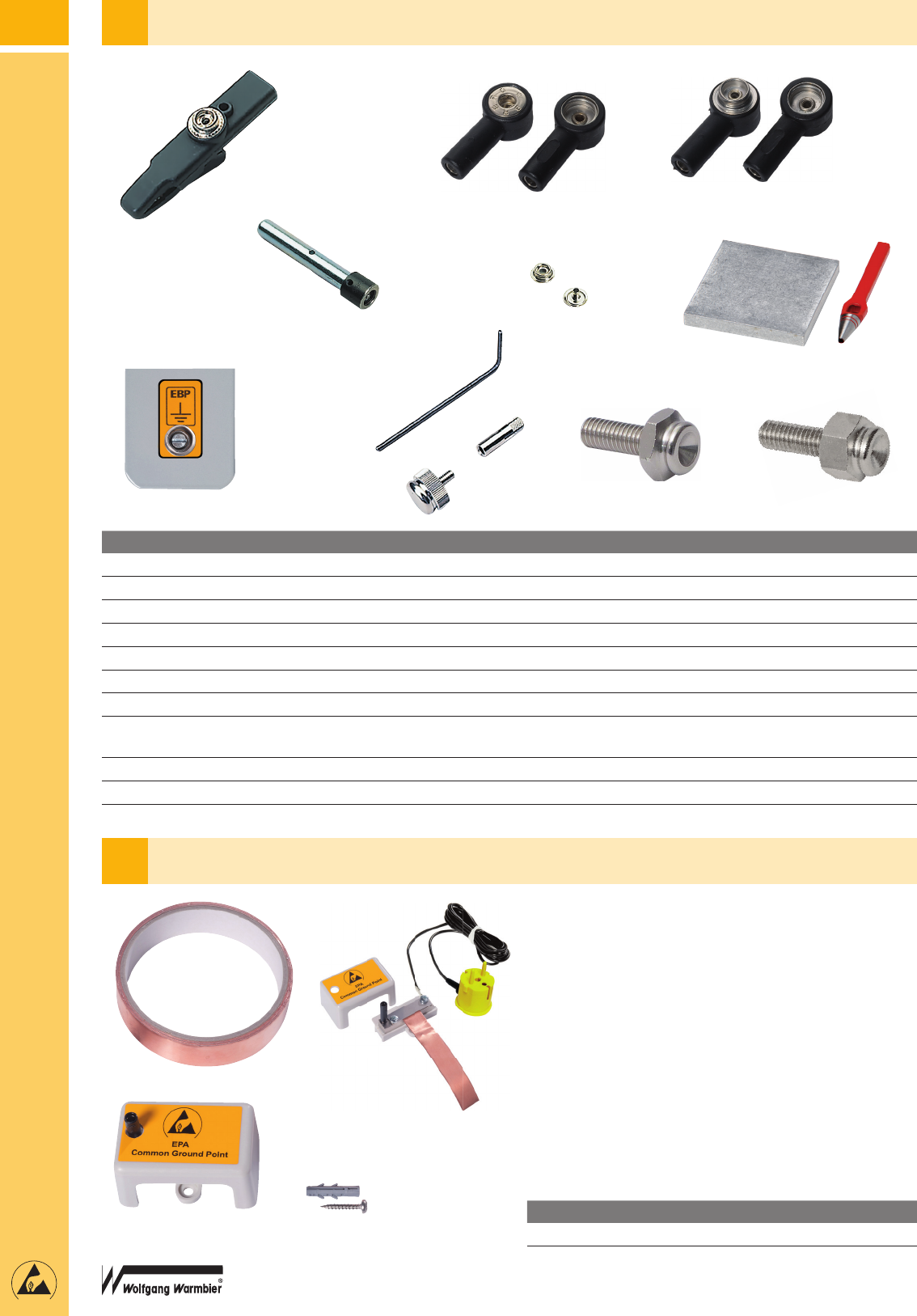

ACCESSORIES

Part Nr.

2280.774.10 Big alligator clip, with a banana plug socket, and a 10 mm snap

2287.10.4 Encapsulated banana plug adapter, includes 10 mm / 4 mm snaps

2287.10.10 10 mm snap 10 mm (stackable snap)

2280.779.10 Tool for 10 mm snap

2280.771 10 mm snap fastener

2280.778 Adapter from a 4 mm banana plug socket to a 10 mm snap fastener

2280.772.12 Top part of 10 mm snap for installation on metal surfaces (without screw)

2280.800 Hollow Punch for punching holes in table mats or floor mats

Forged iron with hardened cutting edges; Aluminium base plate (80 x 80 x 10 mm)

2280.778.6.7 10 mm snap adapter, Hexagon height 3,5 mm, Spanner gap 12 mm, Tread M6 x 16, Total length: 23 mm

2280.778.6.11 10 mm snap adapter, Hexagon height 7 mm, Spanner gap 12 mm, Tread M6 x 16, Total length: 26,5 mm

CENTRAL GROUNDING BOX FOR FLOORING SYSTEMS

Grounding box for connecting ESD flooring material

• Grounding box with 2 screws

• 2 m self-adhesive copper band on roll

• Protection lid

• Banana plug socket

• ESD symbol

Part Nr.

2200.BFE Grounding box with dowel and screw

application

example

sample application

GROUNDING ACCESSORIES

2200.113 .Y
