177
2020/2021
IEC
EN
HANDLING AND STORAGE

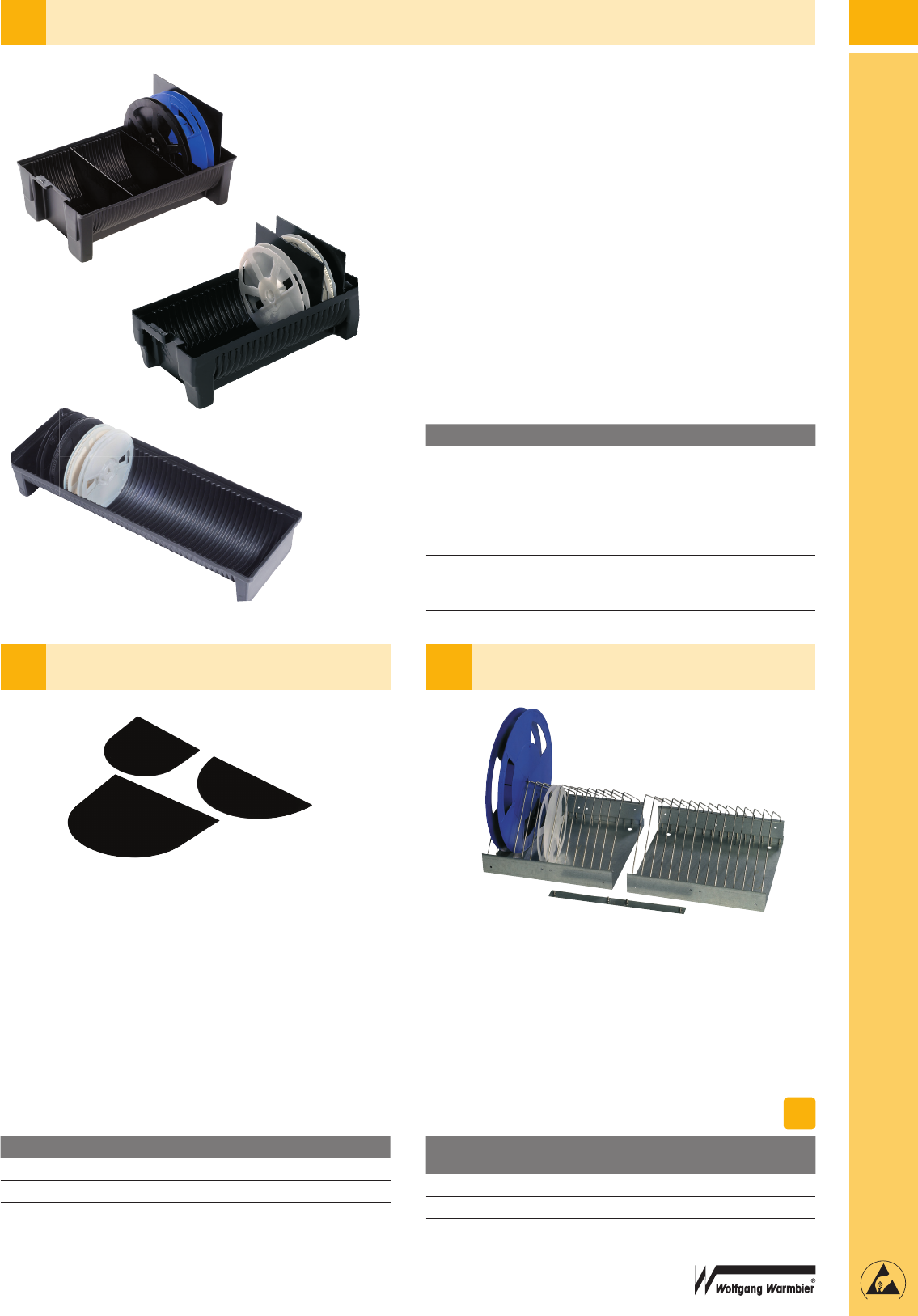

• Permanent, carbon loaded, conductive Polystyrene
Part Nr. Dimensions Qty.
5200.180.180.2 180 x 180 x 2 mm for 180 Ø 10 pcs
5200.330.165.2 330 x 165 x 2 mm for 330 Ø 10 pcs
5200.330.330.2 330 x 330 x 2 mm for 330 Ø 10 pcs
• Permanent, carbon loaded, conductive Polystyrene
• Stackable when empty
• With ESD and Recycling Symbol
• Suitable for:
Utility carts
Shelf storage
Tote boxes
Revolving shelves
Part Nr. Outer Dimensions (W x H x D)
5200.01.560.365.178
560 x 365 x 178 mm
Spool diameter: 330 mm
Holds up to 38 spools
5200.02.362.188.110
362 x 188 x 110 mm
Spool diameter: 180 mm
Holds up to 23 spools
5200.02.600.200.100
600 x 200 x 100 mm
Spool diameter: 180 mm
Holds up to 42 spools
SPOOL RACK SEPARATORS
SMD SPOOL RACKS
METAL SMD SPOOL RACK
• Galvanized steel, rugged construction
• For Spool diameter 180 - 380 mm
• Holds up to 14 spools
• Stainless steel partitions, 20 mm distance, variable
• Linkable, 300 mm width blocks
• Plastic stands
• Labelling frame optional
Part Nr. Description Dimensions
(L x W x H)
5330.14 SMD spool rack 300 x 285 x 175 mm
5330.14.BS labelling frame 300 x 45 x 15 mm
178
2020/2021
HANDLING AND STORAGE

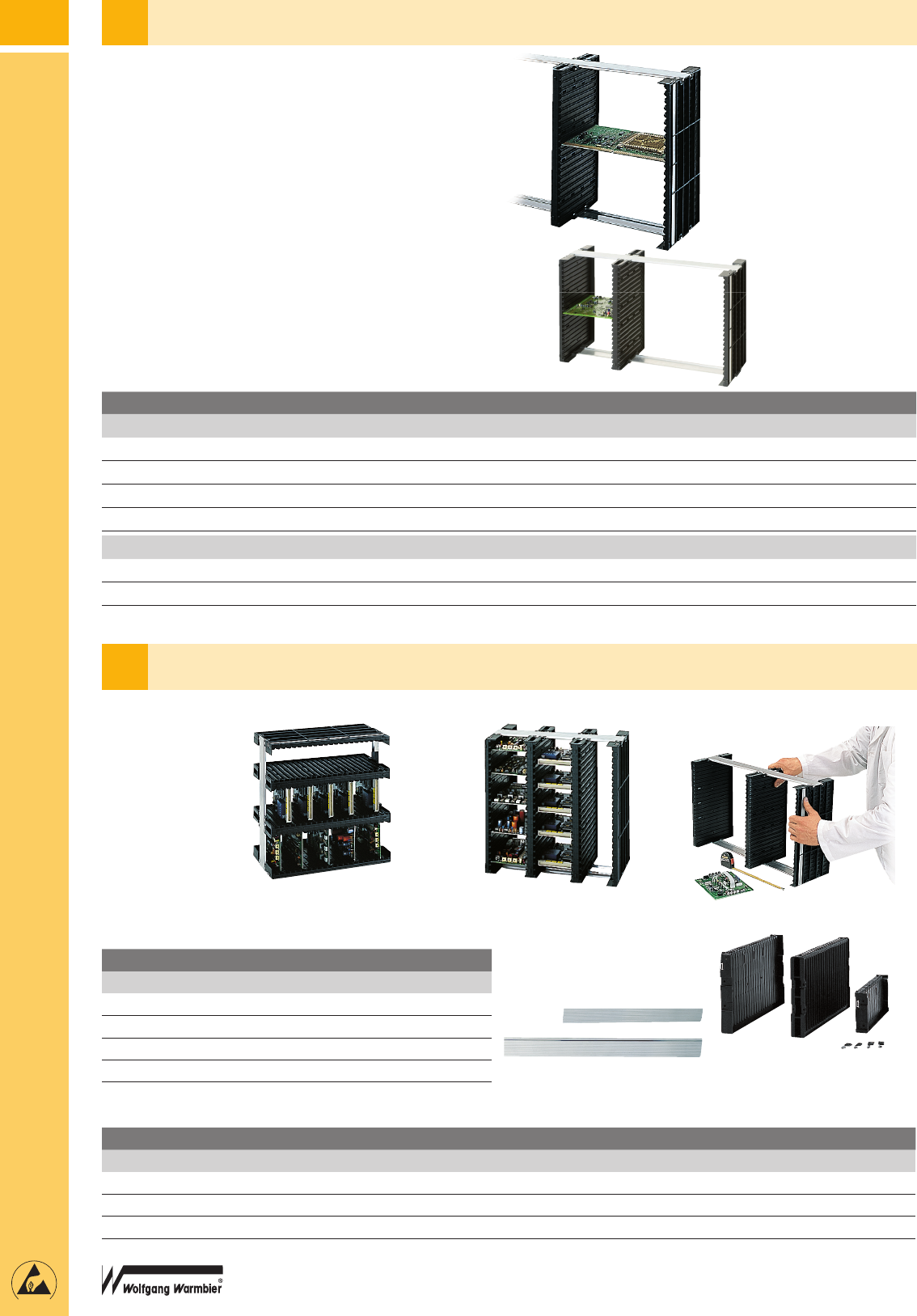

PCB RACK
STANDARD SIZES
Part Nr. Outer Dim. (L x W x H) Max. length of PCB Slot Number of slots
Layout 1: Consists of 2 side walls, 2 aluminium rails and screws
5345.EL.V1 150 x 95 x 250 mm 135 mm 90 mm 15
5345.EL.V2 350 x 95 x 250 mm 335 mm 90 mm 15
5345.EL.V3 250 x 190 x 350 mm 235 mm 185 mm 22
5345.EL.V4 550 x 190 x 350 mm 535 mm 185 mm 22
Layout 2: Consists of 2 side walls, 1 double-sided center wall, 2 aluminium rails and screws
5345.EL.V5 250 x 190 x 350 mm 95 + 95 mm 185 mm 22 + 22
5345.EL.V6 550 x 190 x 350 mm 254 + 254 mm 185 mm 22 + 22
Horizontal usage
Vertical usage
Layout 2
Layout 1
PCB RACK
SINGLE COMPONENTS
Part Nr. Standard sizes
Aluminium profi le rails (Pair)
5345.EL.F1 152 x 53 mm
5345.EL.F2 252 x 53 mm
5345.EL.F4 352 x 53 mm
5345.EL.F6 552 x 53 mm
Part Nr. Sizes Number of slots Slot width Slot depth Slot splitting
Walls (including screws)
5345.EL4.1 350 x 30 x 190 mm 22 2,5 mm 3,0 mm 15,3 mm
5345.EL4.2 350 x 35 x 190 mm 22 + 22 2,5 mm 3,0 mm 15,3 mm
5345.EL3.1 250 x 30 x 95 mm 15 2,5 mm 3,0 mm 15,3 mm
The versatile conductive PCB racks are made of volume con-
ductive polypropylene and are an ideal
aid in the production, storage and transportation of PCB`s.
• The stable and non-flexing construction of the racks allows
manual and automatic handling
• Stackable if the same size is used
• Numbered slots with slot stop
• Slot width 2,5 mm
• Pitch 15,3 mm
• Colour: black
• Recyclable
179
2020/2021

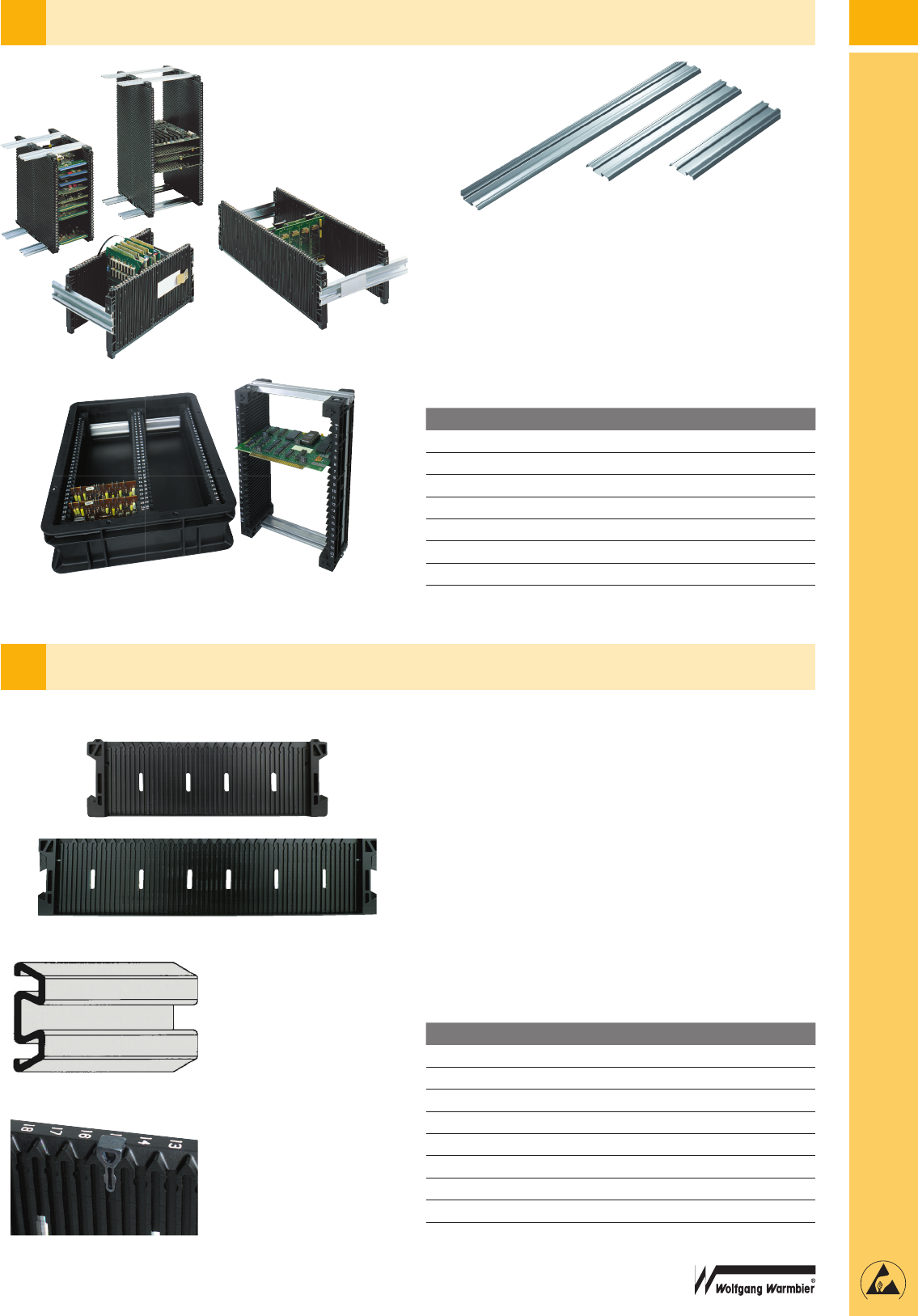

Rails for 180 series walls, standard lengths are suitable for tote
boxes (see page 165 – 169). Custom sizes available on request.
Part Nr. length
5350.9980.074.256 256 mm
5350.9980.074.356 356 mm
5350.9980.074.556 556 mm
5350.9980.074.Z Custom sizes
5350.9980.076.000 Slot clip for Rack Series 180 (100 pcs)
5350.9980.077 Handle for slotted wall
5350.9980.079 Label clamp
ALUMINIUM RACK PROFILE
A sturdy, non-flexing slotted partition 80 mm height. Single-sided
wall with chamfered insertion slots. Clip-on stops for closing off
slots. Completely adjustable using aluminium profile rails. Fast and
easy assembly using the slots at each end of the partitions.
Part Nr. Description Dimensions mm
5350.2510.000.992 Single wall pair 1-300 255 x 80 x 13.5
5350.3510.000.992 Single wall pair 1-400 355 x 80 x 13.5
5350.9980.149.156 Rack profi le rails 1-156 Length = 156
5350.9980.149.256 Rack profi le rails 1-256 Length = 256
5350.9980.149.356 Rack profi le rails 1-356 Length = 356
5350.9980.149.556 Rack profi le rails 1-556 Length = 556
5350.9980.149.Z Rack profi le rails 1-XXX custom sizes
5350.9980.152.000 Slot clip 100 (Qty. 100 pcs)
WEZ RACK 100 SERIES
sample application
180 series
Rack profi le rails 100
series
Rack profi le rails 180 series
sample application
100 series
lot clip for closing
off slots
HANDLING AND STORAGE
