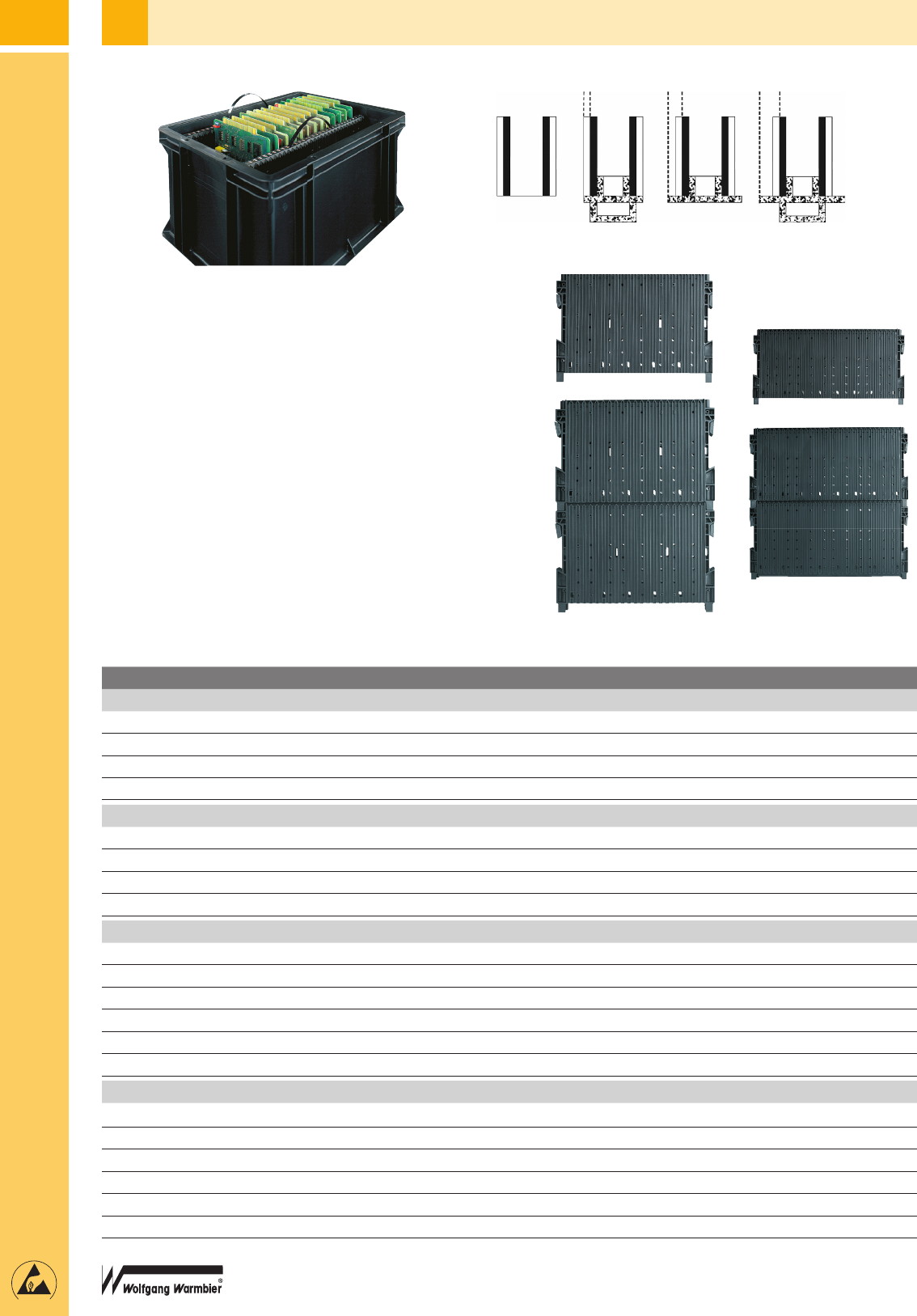

180
2020/2021
HANDLING AND STORAGE
WEZ RACK
®
SYSTEM
180 SERIES
The simplest and safest system for PCB handling during production,
storage and transportation. Slots on both sides of wall with chamfered
leadins for easy PCB insertion. Ideal for automated handling as well.
Clip in slot stops, protect against incorrect PCB insertion.
• Fast and easy fitting
• Flexible, easy handle to facilitate handling.
• Better protection for connectors and other projecting parts on the
PCB due to a 15 mm standoff.
• Label clips for holding documents at various positions
• Robust and warp resistant
• Also available in a double-height version with 345 mm slot length.
• Slot width/depth 3.5 / 2.5 mm
• Slot pitch 10.16 mm
• Colour: black
• Recycable
Part Nr. Description
Option 1: Single wall 300/322: 255 x 180 x 22 mm / Number of slots: 20
5350.2518.000.992 Single wall 300, without slot stop
5350.2518.900.992 Single wall 300, without slot stop Alu reinforced
5350.2518.022.992 Single wall 322, with slot stop 22 (A)
5350.2518.922.992 Single wall 322, with slot stop 22 (A) Alu reinforced
Option 1: Double height wall 300/322: 255 x 345 x 22 mm / Number of slots: 20
5350.2534.000.992 Double height wall 300, without slot stop
5350.2534.900.992 Double height wall 300, without slot stop Alu reinforced
5350.2534.022.992 Double height wall 322, with slot stop 22 (A)
5350.2534.922.992 Double height wall 322, with slot stop 22 (A) Alu reinforced
Option 2: Single wall 400/422/432 - 355 x 180 x 22/32 mm / Number of slots: 30
5350.3518.000.992 Single wall 400, without slot stop
5350.3518.900.992 Single wall 400, without slot stop Alu reinforced
5350.3518.022.992 Single wall 422, with slot stop 22 (A)
5350.3518.922.992 Single wall 422, with slot stop 22 (A) Alu reinforced
5350.3518.032.992 Single wall 432, with slot stop 32 (C)
5350.3518.932.992 Single wall 432, with slot stop 32 (C) Alu reinforced
Option 2: Double height wall 400/422/432: 355 x 345 x 22/32 mm / Number of slots: 30
5350.3535.000.992 Double height wall 400, without slot stop
5350.3535.900.992 Double height wall 400, without slot stop Alu reinforced
5350.3535.022.992 Double height wall 422, with slot stop 22 (A)
5350.3535.922.992 Double height wall 422, with slot stop 22 (A) Alu reinforced
5350.3535.032.992 Double height wall 432, with slot stop 32 (C)
5350.3535.932.992 Double height wall 432, with slot stop 32 (C) Alu reinforced
Slot stops for 180 series
A B C
A = 2,5 mm
(type 22)
open
slot
B = 4,0 mm
(type 25)
C = 7,5 mm
(type 32)
Option 1
Option 2

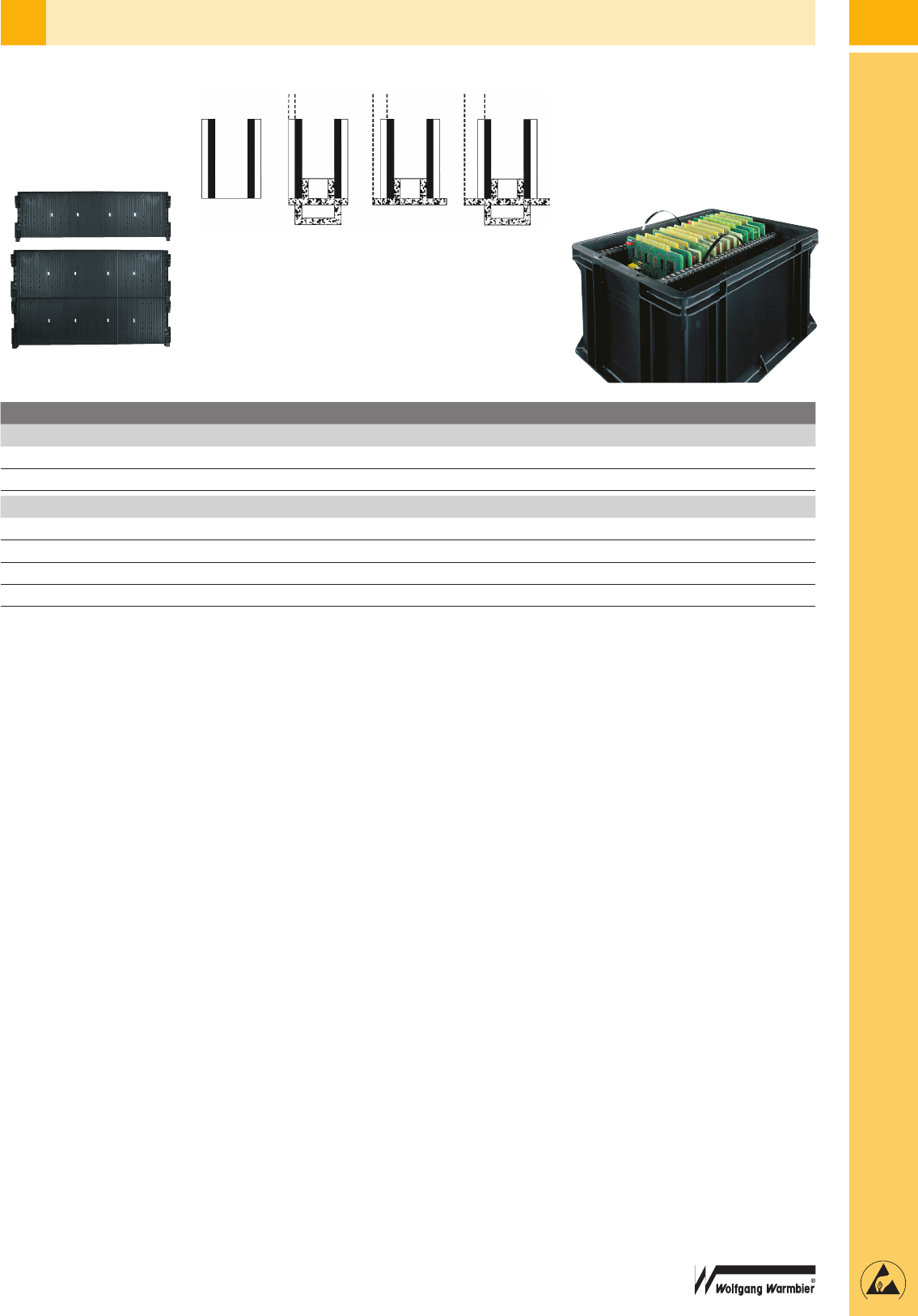

181
2020/2021
HANDLING AND STORAGE
WEZ RACK
®
SYSTEM
180 SERIES
Option 3
Slot stops for 180 series
A B C
A = 2,5 mm
(type 22)
open
slot
B = 4,0 mm
(type 25)
C = 7,5 mm
(type 32)
Part Nr. Description
Option 3: Single wall 600/625: 555 x 180 x 25 mm / Number of slots: 49
5350.5518.000.992 Single wall 600, without slot stop
5350.5518.025.992 Single wall 625, with slot stop 25 (B)
Option 3: Double height wall 600/625: 555 x 345 x 22/25 mm
5350.5535.000.992 Double height wall 600, without slot stop
5350.5535.900.992 Double height wall 600, without slot stop Alu reinforced
5350.5535.025.992 Double height wall 625, with slot stop 25 (B)
5350.5535.925.992 Double height wall 625, with slot stop 25 (B) Alu reinforced
182
2020/2021
5366.550.350.L
5366.550.350.TB
• Made of dissipative PE hard foam
• Permanent, static dissipative, carbon loaded foam
• Cross linked, closed cell
• Abrasion resistant, non-corrosive
• 25 slots / width of slots: 3 mm / length of slots: 12 mm
• Two cut edges
Part Nr. Dimensions
4550.25.0255.LP 355 x 255 x 25 mm
• Permanent black conductive Polypropylene
• Capacity: 25 boards
• Distance between two slots: app 9,5 mm
Part Nr. Outer Dimensions (L x W x H)
5366.210.S 210 x 275 x 95 mm, 3 mm slot
5366.350.L 350 x 270 x 130 mm, 2,4 mm slot
FOAM PCB HOLDERCONDUCTIVE PCB RACK
• Permanent, carbon loaded, dissipative Polypropylene
• For storage of printed circuit boards
• Capacity: Long side up to 29 PCB’s, short side up to 19 PCB’s
• Naps 14 mm, quadratic
• Distance between naps 3 mm
Part Nr.
5366.550.350.L 557 x 357 x 22mm
5366.550.350.TB Carrying handle
• Permanent, carbon loaded, dissipative Polypropylene
• For storage of printed circuit boards
• Capacity: Long side up to 19 PCB’s, short side up to 13 PCB’s
• Naps Ø 15 mm
• Distance between naps 1,8 mm
Part Nr. Dimensions
5366.350.250.G 357 x 257 x 14 mm
DISSIPATIVE PCB HOLDER DISSIPATIVE PCB HOLDER
application example
