86 2020/2021 7100.PGT120.TEST .10 7100.PGT120.TEST .12 7100.PGT120.TEST .13 7100.PGT120.TEST .16 7100.PGT .XK.V3 7100.PGT .XK.ID.V3 TEST AND MEASUREMENT sample application LABEL PRINTER • Label printing for passed tests …

2020/2021











Gate 1 Gate 2

Gate 3 Gate 32









Proﬁ le:

0 - any test

1- shoes

2- wrist strap

3- shoes & wrist strap

Print:

0 – no print

1 – print lable



TEST AND MEASUREMENT

Measurement analysis User management

Open Database

Data Collector

Secure HTTPS

connection

User

storage

Measurement

storage

PGT

120.COM SOFT

Central data maintenance for data terminal

• Ready to integrate into existing infrastructure

• Up to 32 PGT120.COM stations can be networked

• Existing identity cards or time attendance cards can be reused

• Customer systems can be connected via open database interface

• Measurement data is ready to process after a few seconds

• Various databases can be used

• Secure network communication

 The Data Terminal in combina-

tion with PGT120.COM collects

ESD tests measurement data.

 User identification with any USB

HID input device (RFID, bar-

code, magnetic card, keyboard)

 Optional USB relay to trigger a

turnstile gate.

 Central data collecting and con-

trol server synchronizes measu-

rement data and access control

 Open database interface for

connecting customer systems

 Data Terminal DT2

 Data Terminal DT3

 Data Terminal TC18

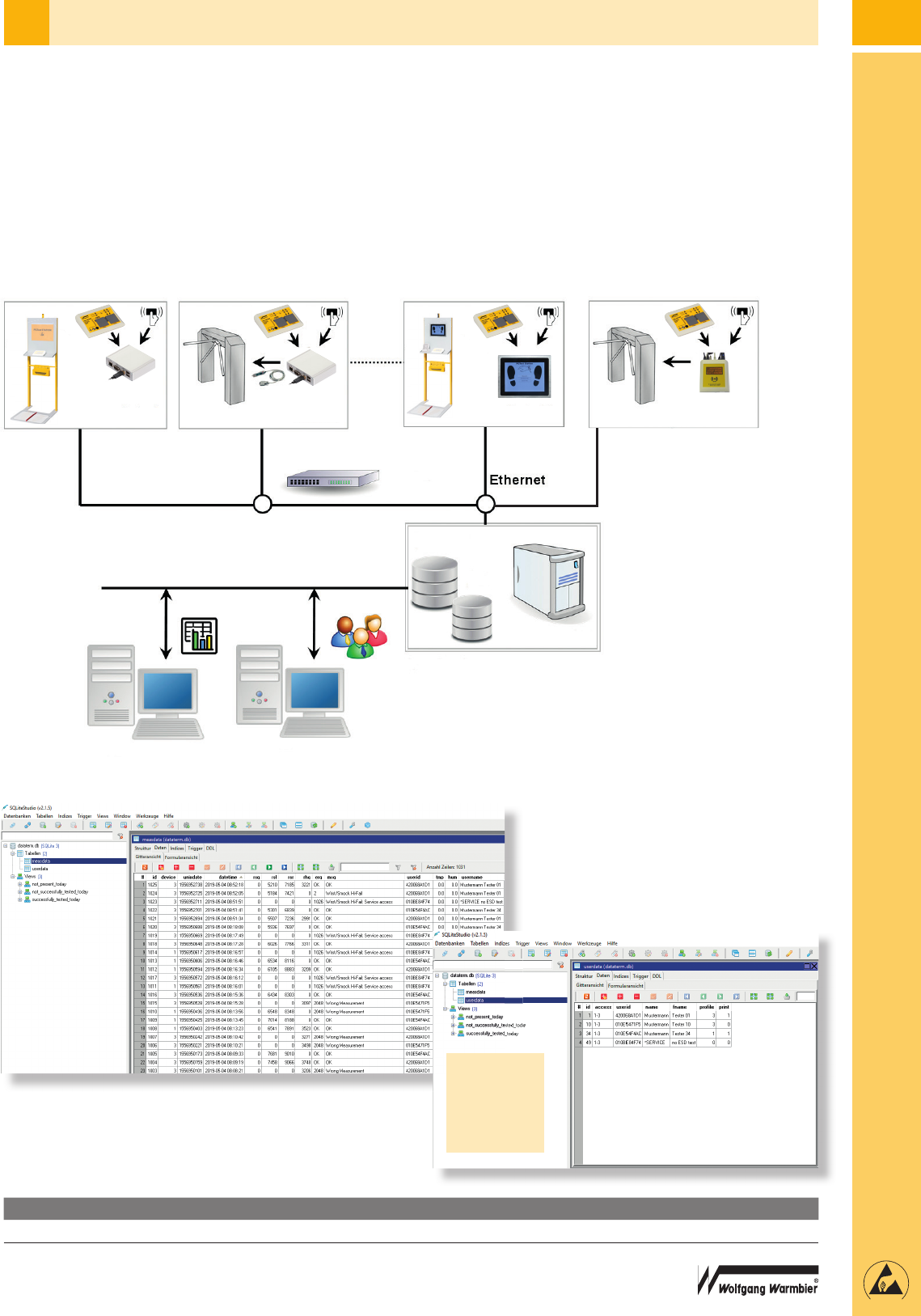

System design example

Part Nr.

7100.PGT120.COM.SOFT Software for „Data Collection“, CD-ROM

Measurement data

2020/2021

7100.PGT120.TEST.10

7100.PGT120.TEST.12

7100.PGT120.TEST.13

7100.PGT120.TEST.16

7100.PGT.XK.V3

7100.PGT.XK.ID.V3

TEST AND MEASUREMENT

sample application

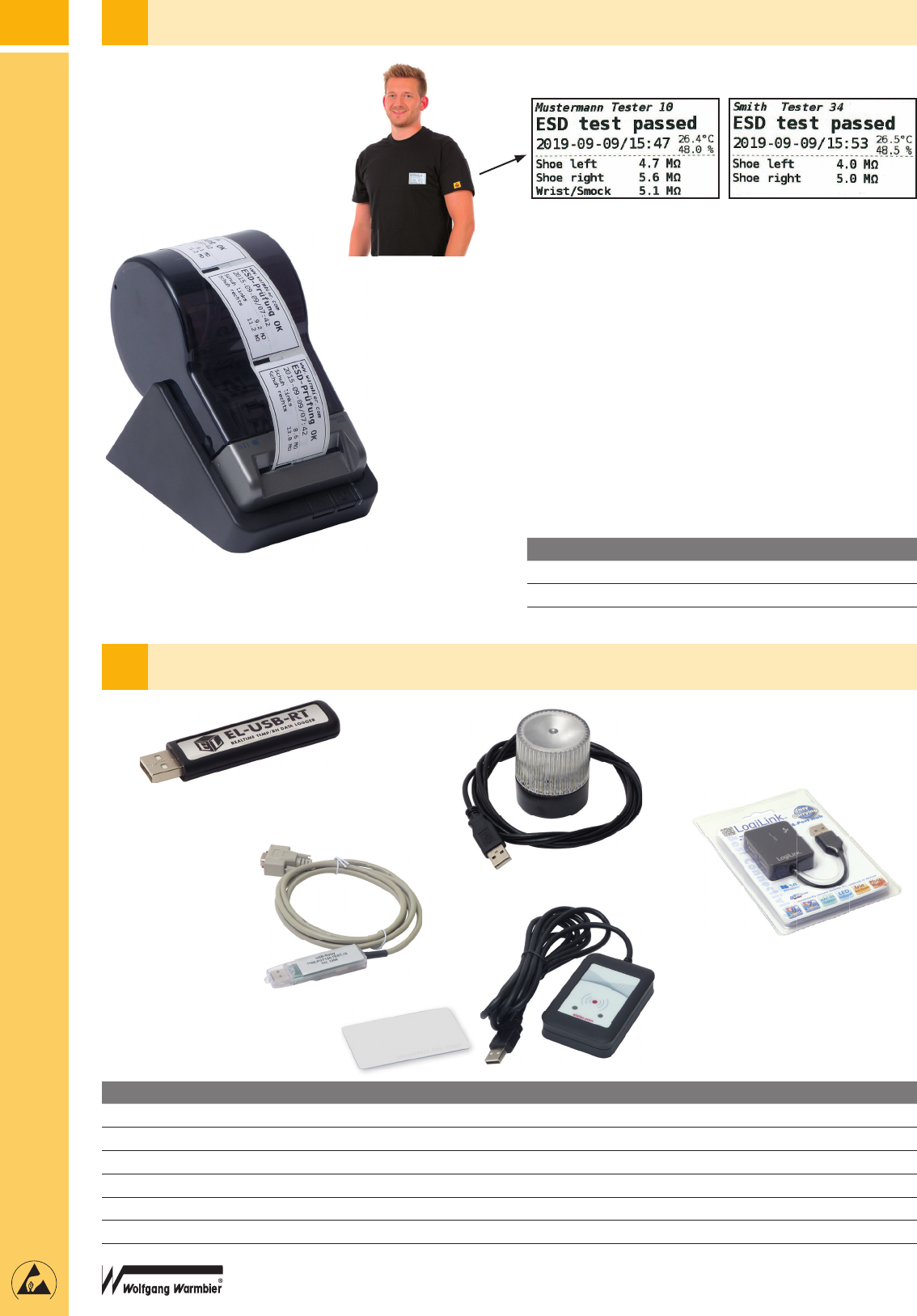

LABEL PRINTER

• Label printing for passed tests with test results and measurement

values from the data terminals DT2/DT3/TC18

(languages: German/English)

• If using a card reader for user identification, the name is shown

on the label.

Includes:

Label printer with power supplies,

2 label rolls with 310 pcs/roll (36 x 67 mm),

operating instructions (german/englisch)

Part Nr.

7100.PGT120.COM.D.2 Label printer

7100.PGT120.COM.D.3 Label rolls 36 x 67 mm, unit: 2 rolls

Part Nr. Qty.

7100.PGT120.TEST.10 Temperature / humidity sensor

7100.PGT120.TEST.12 USB-Relais-Modul, e. g. for switching a turnstile gate

7100.PGT120.TEST.13 Signal light (red/yellow/green) with acoustic sound

7100.PGT120.TEST.16 4-Port-USB-Hub

7100.PGT.XK.V3 HID-compatible USB card reader 1 pcs

7100.PGT.XK.ID.V3 ID card (LEGIC-Format) 10 pcs

ACCESSORIES FOR DATA TERMINAL

2020/2021

7110.600.SET.WT

7110.B530.SET.WT

IEC

TEST AND MEASUREMENT

Part Nr. includes:

7110.B530.

SET.WT

(20 kg)

7110.600.

SET.WT

(20 kg)

7110.600 Aluminium case X X

7100.B530.G* High Resistance Meter Metriso

530B with connecting cables X

7100.3000.G* High Resistance Meter Metriso

3000 with connecting cables X

7100.3000.TF Temperature and humidity sensor Metriso

3000 X

7100.TF530* Thermo-Hygrometer TF-530 X

7220.45 Handheld probe model 45 X X

7220.840* Two-Point-Probe model 840 (Mini Probe) X X

7220.880* Ring probe model 880 X X

7100.SRM110* Surface Resistance Meter SRM 110 X X

7100.EFM51.CPS*

Electrostatic Field Meter with charged plate set X X

7100.EFM51.MK51

Measuring head MK51 for EFM51

X X

7100.WT5000.ML Connecting cable (Handheld probe/MK51) X X

7220.850 Probe model 850 (2 probes) X

7220.870 Probe model 870 (2 probes) X

7220.870.V.SET Extension rod for Probe model 870 (3 pcs.) X

2200.110 Grounding plug X X

7110.E8 8-socket grounding box X X

7100.2000.TR50 Cable reel, 50 m X X

7100.PGT100.102

Metal plate 400 x 300 x 2 mm incl. 10 mm snap with 4 mm banana plug adapter (2287.10.10)

X X

7220.880.6 Insulative plate 120 x 120 x 6 mm (2 pcs.) X X

7220.880.9 Probe made of stainless steel, Ø 120 mm X X

7220.880.L Guard cord, blue, 1,5 m X

* Measuring equipment including calibration certificate

ESD-AUDIT-KIT

The ESD-Audit-Kit includes the relevant test instruments for the verification of the ESD control elements according to IEC 61340-5-1 in an ESD

protected area (EPA)

Applications

• Evaluate packaging material

• Evaluate garments

• Measure flooring, working surface and furniture resistance

• Measure electrostatic fields

• Measure temperature and relative humidity

• Analyze Ionizers performance

• incl walking test function with EFM51 and

MK51 measuring head

Features

• Aluminium embossed conductive surface

• Dissipative foam inserts

• Removable, telescopic handle with castors

• ESD symbol

• Dimensions: 575 x 490 x 250 mm

• Tare: 7 kg
