80 2020/2021 IEC EN ! TEST AND MEASUREMENT PGT ® 120 PERSONNEL GROUNDING TESTER The Personnell Grounding T ester PGT ® 120 is a wrist strap and footwear tester for access control of ESD protected ar eas (EP A ’ s) • The …
79
2020/2021
TEST AND MEASUREMENT
METRISO
®
3000 – SOFTWARE AND TEST REPORT

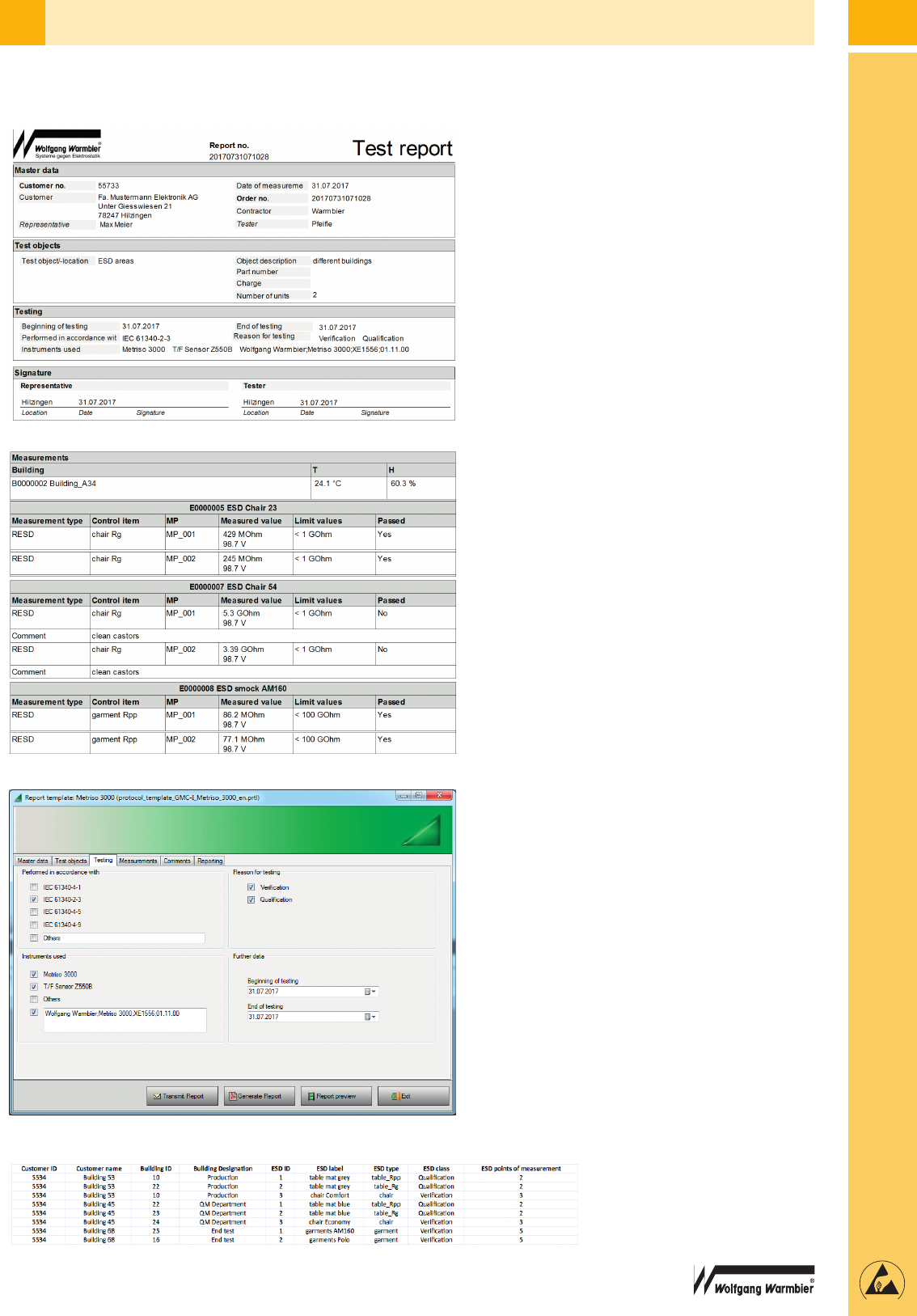

The software provides the option of adding a corporate
logo. A protocol number is automatically generated.
In the test report the ESD control element, the measuring
point, the measured value and the indicated test voltage
are displayed.
By selecting the control element,
the limit value is transfered automatically to the report and
the measurement status is displayed.
Preset ESD standards can be selected in the protocol
assistant. The user can define, whether the measurement
is for verification or qualification.
The used instruments and probes can be selected.
Default texts are also editable.
In the ETC software master data and information can be added to the test object, before performing the testing of ESD
control elements.
Measurement structures can also be imported via Excel / csv.
80
2020/2021
IEC
EN
!
TEST AND MEASUREMENT
PGT
®
120 PERSONNEL GROUNDING TESTER

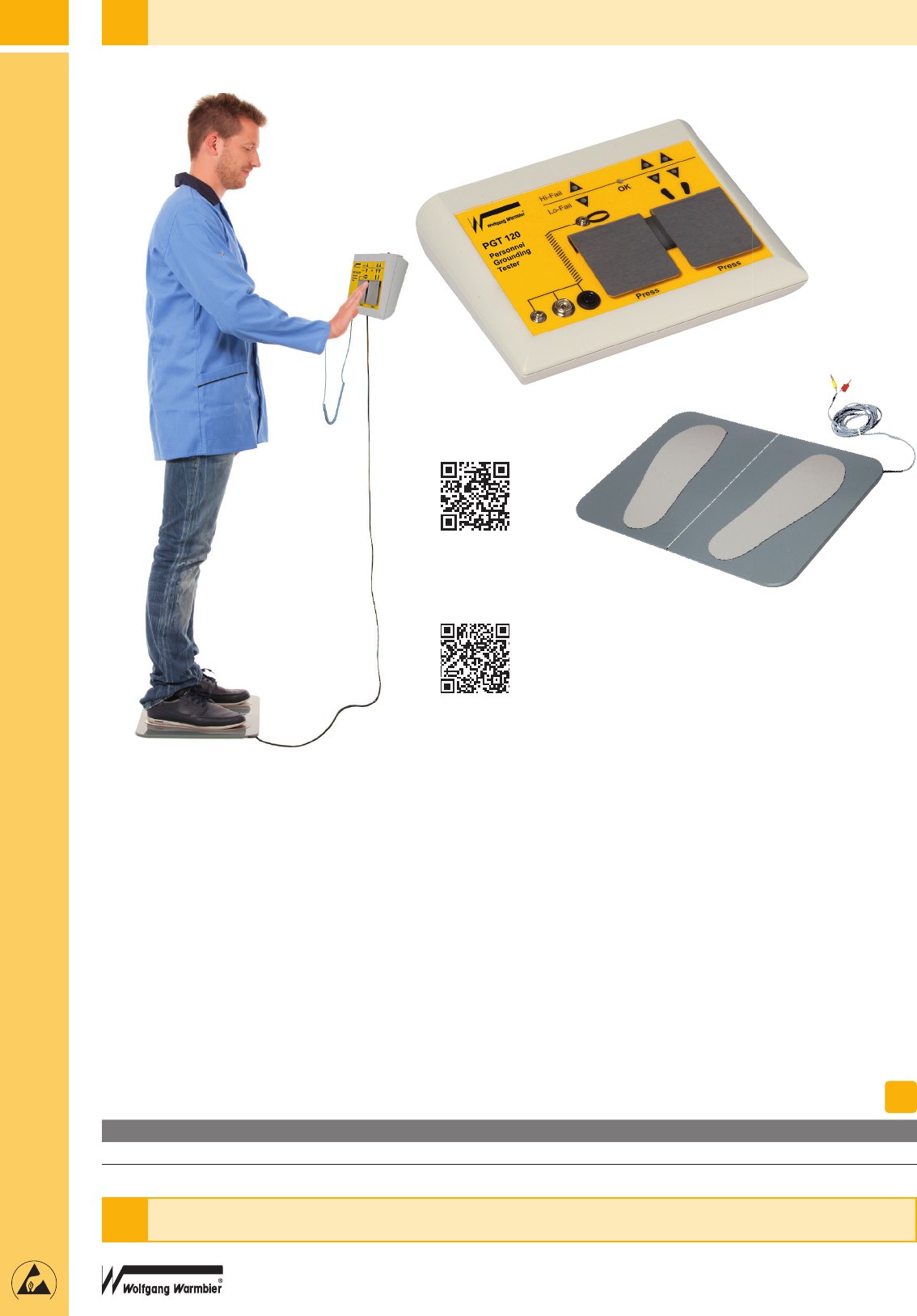

The Personnell Grounding Tester PGT
®
120 is a wrist strap and footwear tester for access control of ESD
protected areas (EPA’s)
• The test result is indicated with audible and visual signals. A relay with a dry contact provides the
connection to a door opening system
• Power supply: Internal battery or external power supply unit
• Wrist strap, right and left shoe testing is simultaneously possible by separate measuring circuits
• In combination with a barrier gate, the footwear measurement can be performed in series without
pressing a button (hands-free mode).
• Separate measurement of left and right shoe
• Lower limit disabling is possible
• The unit can be used on bench tops or as a wall mounted unit (Wall mounting requires an additional wall
mounting plate)
• Adjustable limits and specific functions through 12 dip switches
Includes:
PGT
®
120 unit, footwear testing electrode, operating instructions (english/german),
Calibration Certificate, 9 volt battery and 230 VAC / 12 V power supply
Part Nr.
7100.PGT120 Personnel Grounding Tester PGT
®
120
Footwear electrode for separate
shoe testing
Dimension: 350 x 500 mm
PGT
®
120 accessories see page 81
Video
Video
„hands-free“
81
2020/2021
7100.PGT120.WK.H
1801.G.P.TERM
7100.PGT120.SM.TERM
7100.PGT120.WK.H
1801.G.P.TERM
7100.PGT120.WK
7100.PGT120.WK
7100.PGT120.WK
7100.PGT120.WK
TEST AND MEASUREMENT
Mat for footwear electrode
Dimension: 830 x 680 x 13 mm
Delivered without footwear electrode
Calibration Unit for
PGT
®
120 with
12 Dip switches
application
example
• Powder coated steel post
• Colour: yellow
• Plastic coated steel base in black
• Post height: 960mm
• Base diameter: 350mm
• Weight: 10 kg
• Holder for PGT
®
120 attachable
• Standard wall bracket 7100.PGT120.WK adjustable on holder
Part Nr.
1801.G.P.TERM Steel post incl. dummy and steel
base

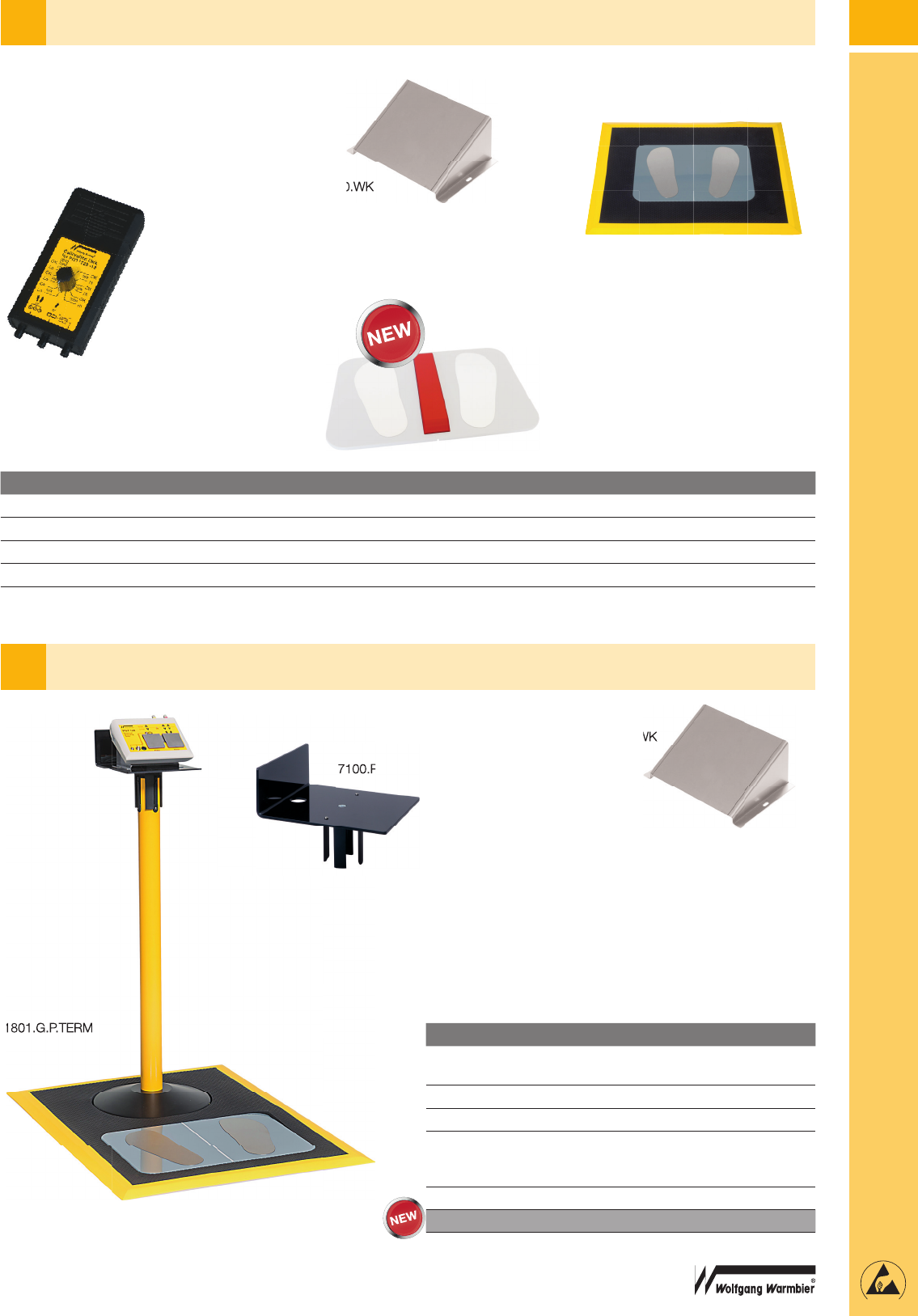

7100.PGT120.WK.H Holder for PGT
®
120, attachable
7100.PGT120.WK Wall mounting plate
7100.PGT120.SM.TERM Mat for footwear electrode with
yellow bevelled edges, delivered
without footwear electrode
7100.PGT120.TERM.SET Set Pos. 1 – 4
7100.PGT120.WK.H.DT Holder extension for Data Terminal 3
STEEL POST FOR PGT
®
120 WITH HOLDER
Separation bar for footwear electrode
PGT
®
120/PGT
®
120.COM
Part Nr.
7100.PGT120.WK Wall mounting plate for PGT
®
120 and PGT
®
120.COM
7100.PGT120.CU.12 Calibration unit for PGT
®
120 and PGT
®
120.COM incl. calibration certificate for PGTs with 12 Dip switches
7100.PGT120.SM Mat for footwear electrode with yellow bevelled edges, delivered without footwear electrode
7100.PGT120.TS Separation bar for footwear electrode PGT
®
120/PGT
®
120.COM
PGT
®
120 ACCESSORIES
