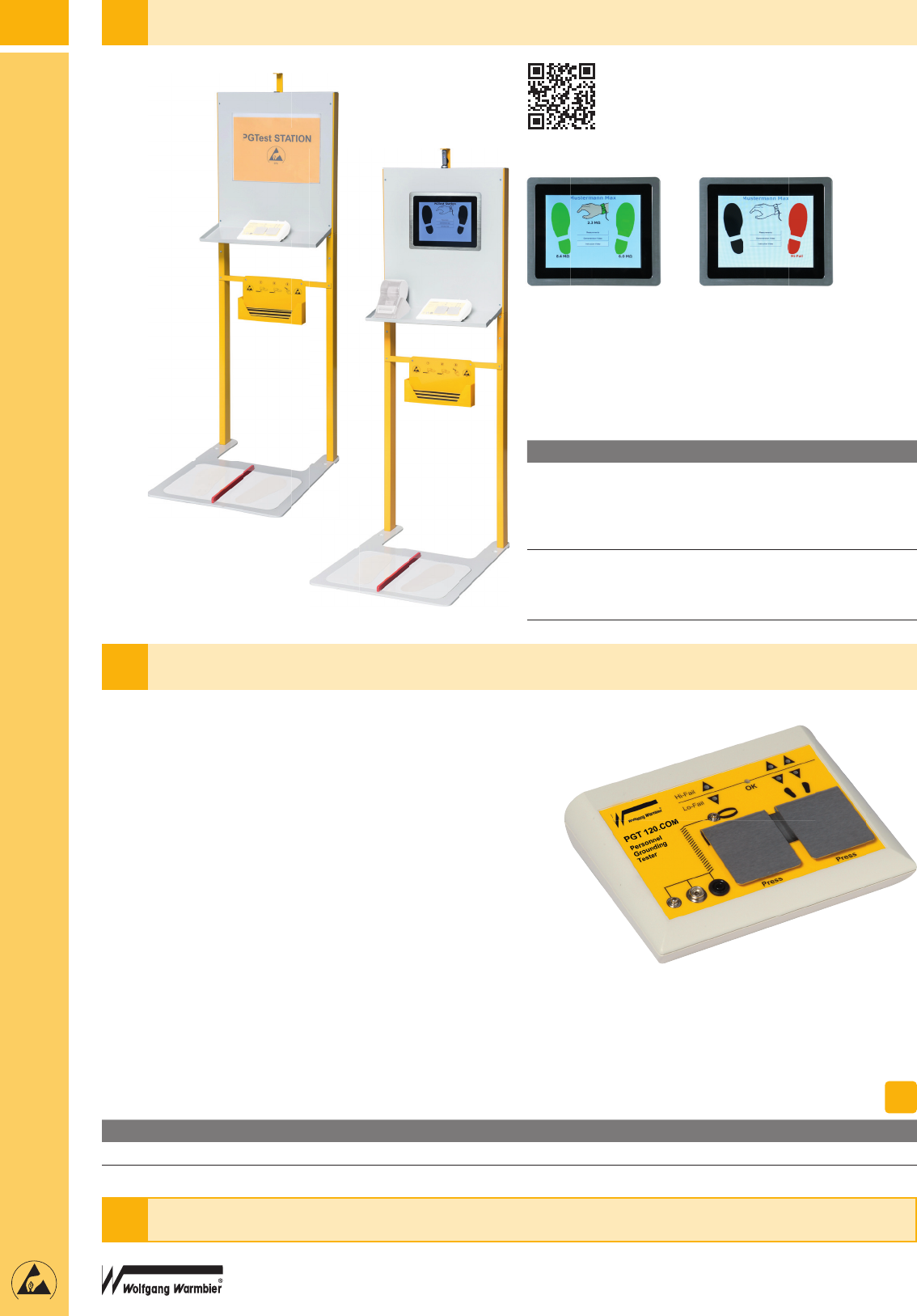

PGTest STATION
• Test station for PGT
®
120 or PGT
®
120.COM
• Dimensions: 1700 x 590 x 730 mm (H x W x D)
• PGT
®
120 and printer are not included.
Part Nr.
7100.PGT120.TEST.V01
PGTest Station for PGT
®
120 /
PGT
®
120.COM with magnetic docu-
ment holder made of IDP-STAT-PVC
in size DIN A3, incl. wall mounted
container
7100.PGT120.TEST.V18
PGTest Station for PGT
®
120.COM
with Touchscreen-data terminal
and temperature/humidity sensor
incl. wall mounted container
application example
TEST AND MEASUREMENT
PGT
®
120.COM WITH RS232 INTERFACE
The PGT
®
120.COM is a special version of the Personnel Grounding Tester
PGT
®
120 and includes an additional RS232 interface.
The RS232 interface is able to process measurement data and test results in
ASCII like time attendance systems.
• Adjustable door opening time (1 second or 3 seconds)
• Power supply: external power supply unit 230V AC / 12 V
Description of Interface:
• A computer or a terminal can be connected to the serial RS232 interface.
Data is available in ASCII format, a computer with terminal program is suffi-
cient to monitor measurement data in plain text.
Data:
• value footwear in series: value in kOhm
• value wrist strap system: value in kOhm
• value left foot: value in kOhm
• value right foot: value in kOhm
• test OK: OK
• test failed: Error no.
Includes:
PGT
®
120.COM, footwear testing electrode, calibration certificate,
operating instructions (german/english), power supply 230 V AC / 12 V
Part Nr.
7100.PGT120.COM Special version PGT
®
120.COM with RS232-interface
PGT
®
120 accessories see page 81
Test: OK Test: FAIL
Video
83
2020/2021
When using the data terminal, the measurement results can be
displayed on an external PC.
TEST AND MEASUREMENT
PGT
®
120.COM DATA TERMINAL DT2

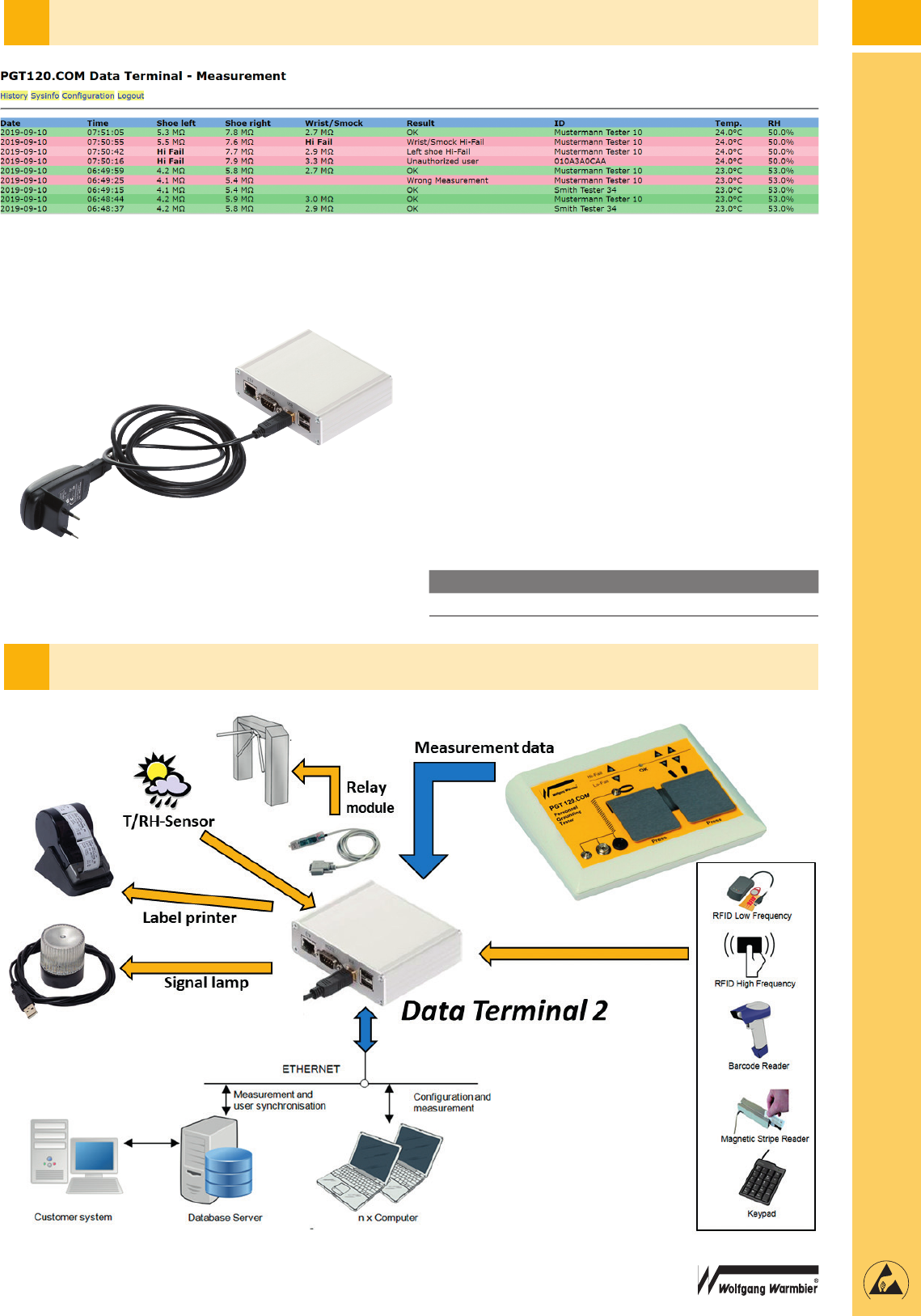

The „Data Terminal“ records the Personnel Grounding Tester‘s
measurement data.
Properties:
• 30 days measurement data storage in data terminal
• Note: user identification via card reader and id card possible
Remote PC functions when connected to network:
• List of measurement data with coloured marking of failed tests
• Printed test results list
• WEB-interface for easy configuration
• German and English support
Includes:
Data Terminal with power supply, operating instructions (german/
englisch)
Part Nr.
7100.PGT120.COM.DT Data Terminal DT2
PGT
®
120.COM WITH DATA TERMINAL DT2
84
2020/2021
!
!
7100.PGT120.COMDT3.W
TEST AND MEASUREMENT
DT 3
short description
• Function like DT2, with integrated
RFID-Reader
• Display and switching contact
Part No.
7100.PGT120.COM.DT3
7100.PGT120.COMDT3.W
TC 18
short description
10" Touchscreen
(Function like DT2)
Part No.
7100.PGT120.COM.TC18
PGT
®

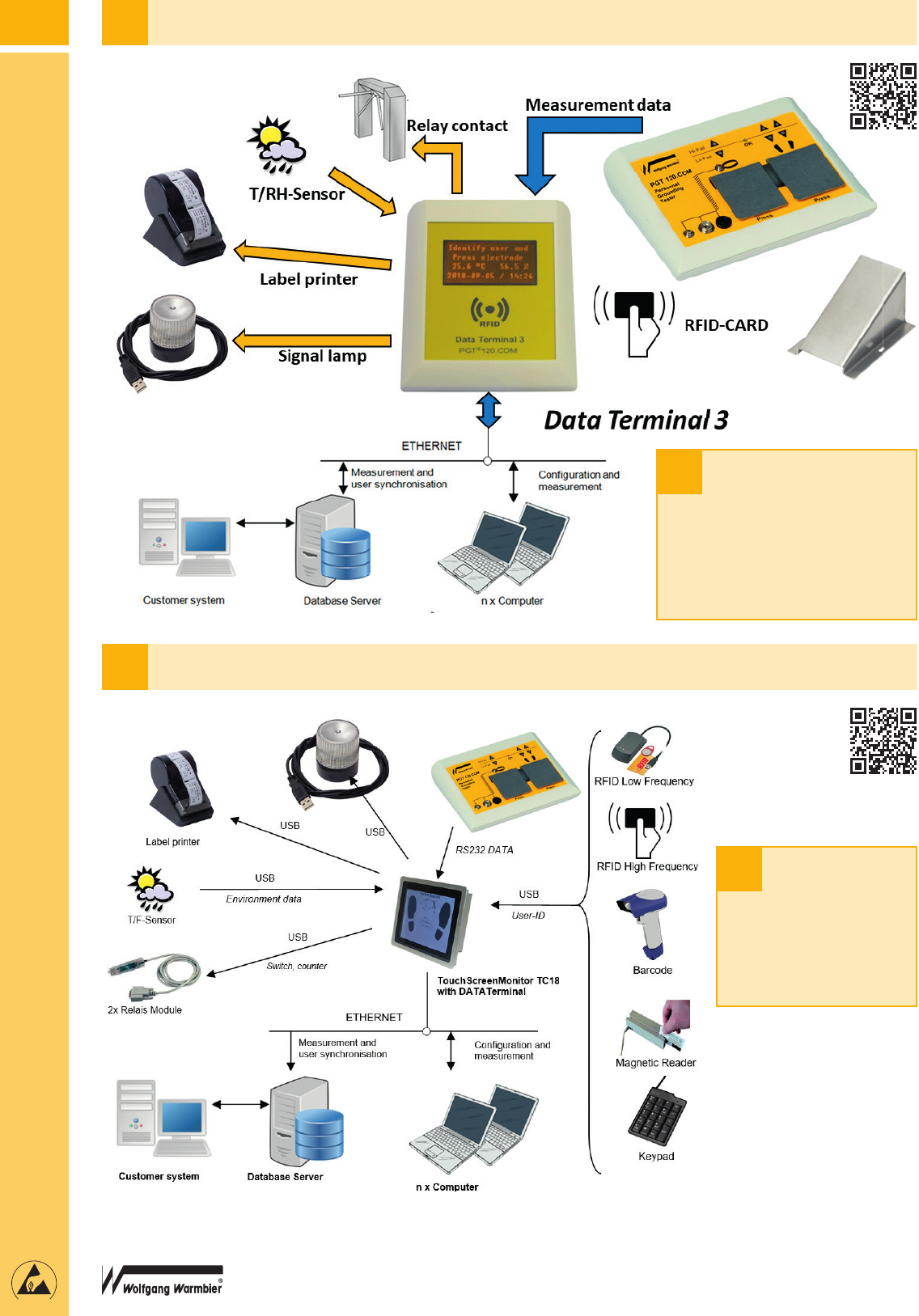

120.COM WITH DATA TERMINAL DT3
PGT
®
120.COM WITH DATA TERMINAL TC 18
Video
