7100.CPM35.H
TEST AND MEASUREMENT
CPM74 with
high voltage head

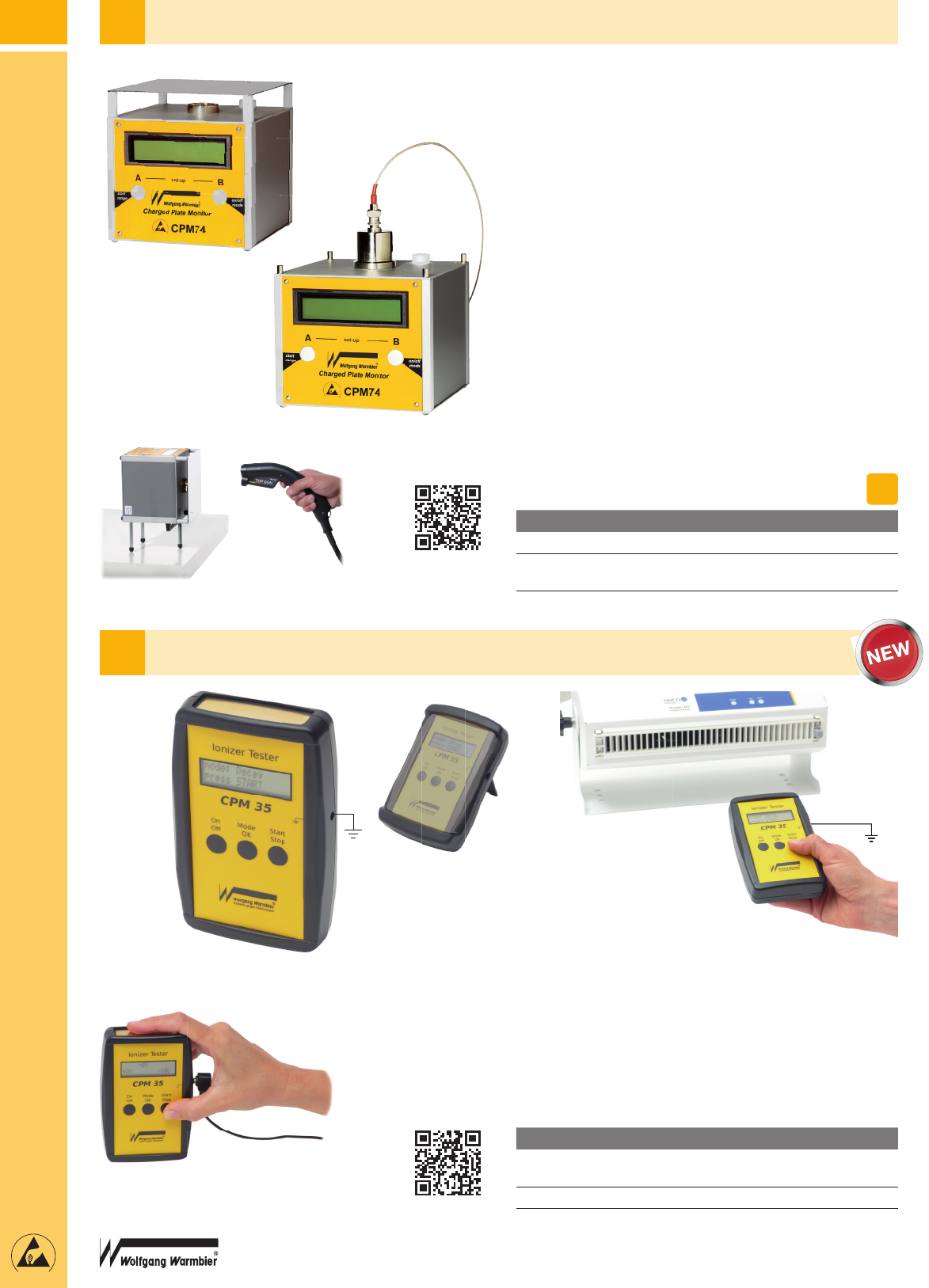

CHARGED PLATE MONITOR – CPM74
• Measures the air ionizer efficiency and the offset voltage
• Measures the electrostatic decay time from ± 1000 V to ± 100 V
(standard setting)
• Measures the (150 x 150 mm) plate potential with a built-in
electrostatic field meter
• Plate can be removed in order to apply the high voltage
head to the field meter
• High voltage head allows direct voltage measurement
of up to 2 kV
• Size: 15,2 x 15,2 x 15,2 cm (W x H x D)
• Includes: Power supply 230 VAC, ground cord, conductive
case, operating instructions in German and English, calibration
certificate
Complies with IEC 61340-4-7
Part Nr.
7100.CPM74 Charged plate monitor CPM74
7100.CPM74.HM High voltage head, including connecting
cable
Video
CPM 35 – IONIZER TESTER
application example
application example: walking test
The CPM 35 is a handheld measuring device for the fully automatic
checking of ionizers at the ESD workstation or in machines. It
measures the positive and negative discharges as well as the offset
voltages and can also be used to measure body voltages (Walking
Test).
• Measures automatically the decay time from ± 250 V to ± 100 V
afterwards the offset voltage
• In the BVT-mode a walking test can be performed by contacting
the metal plate with a finger
Part Nr.
7100.CPM35 CPM 35 – Ionizer Tester incl.
grounding cord and carrying bag
7100.CPM35.H Rubber case incl. foldable stand
Video
103
2020/2021
IEC
EN
IEC
EN
7100.WIM47.SB
7100.WIM47.SB
AIR IONIZER, IONIZER MONITOR
IONIZER MONITOR – WIM 47

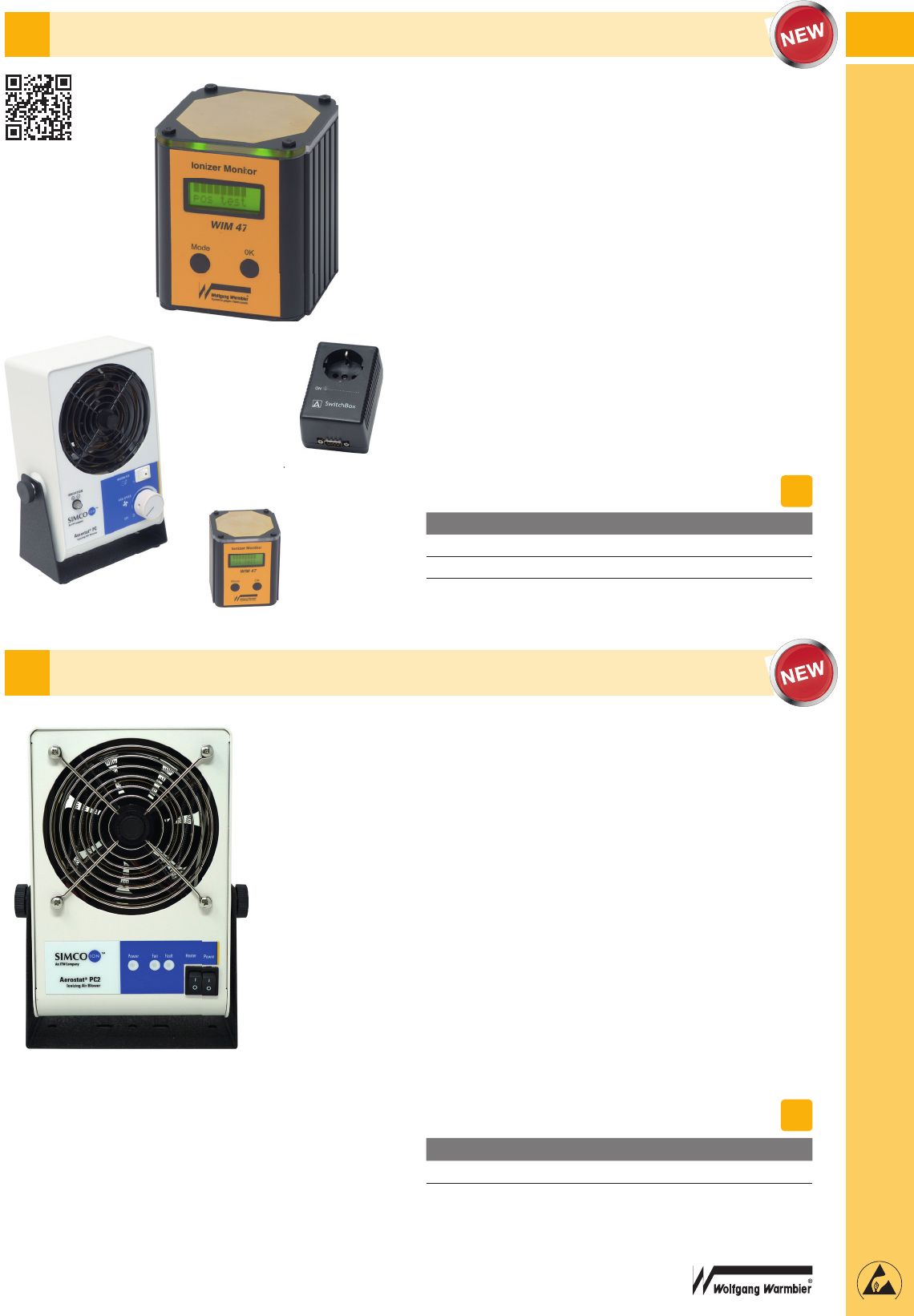

The WIM 47 is a handheld monitoring device for the fully automatic
checking of ionizers at the ESD workstation or in machines.
It measures the positive and negative discharges as well as the
offset voltages.
An alarm is signaled acoustically and optically.
In case of an error a switching output can switch off the Ioniser or
report the alarm to a higher-level controller, e. g. by using the
switch box 7100.WIM47.SB.
• Size: 70 x 70 x 85 mm (W x D x H)
• Weight: 300 g
• Includes:
1 x Ionizer Monitor WIM 47
1 x Power supply with adapter (EU/USA)
1 x ground cord
1 x operating instructions
Optional:
Switch Box, which controls the
Voltage supply for the connected ionizer via a relay contact.
Part Nr.
7100.WIM47 Ionizer Monitor WIM 47
7100.WIM47.SB SwitchBox (optional) for German sockets
• Compact and portable, quickly neutralizes static charges
• Effective area up to 120 cm
• Unique emitter point cleaner
• Fan speed control “Low”, “Medium and “High”
with integrated heater
• Ionization indicator
• Inherently balanced to ± 10 V (micropulse AC ionization)
• AC technology, Ozone generation: 0,05 ppm,
measured 30 cm in front of the unit
Size: 173 x 231 x 84 mm (W x H x D)
Part Nr.
7500.PC2.H Portable Ionizer
AEROSTAT
®
PC2 – PORTABLE IONIZER
application example
Video
104
2020/2021
IEC
EN
IEC
EN
AEROSTAT
®

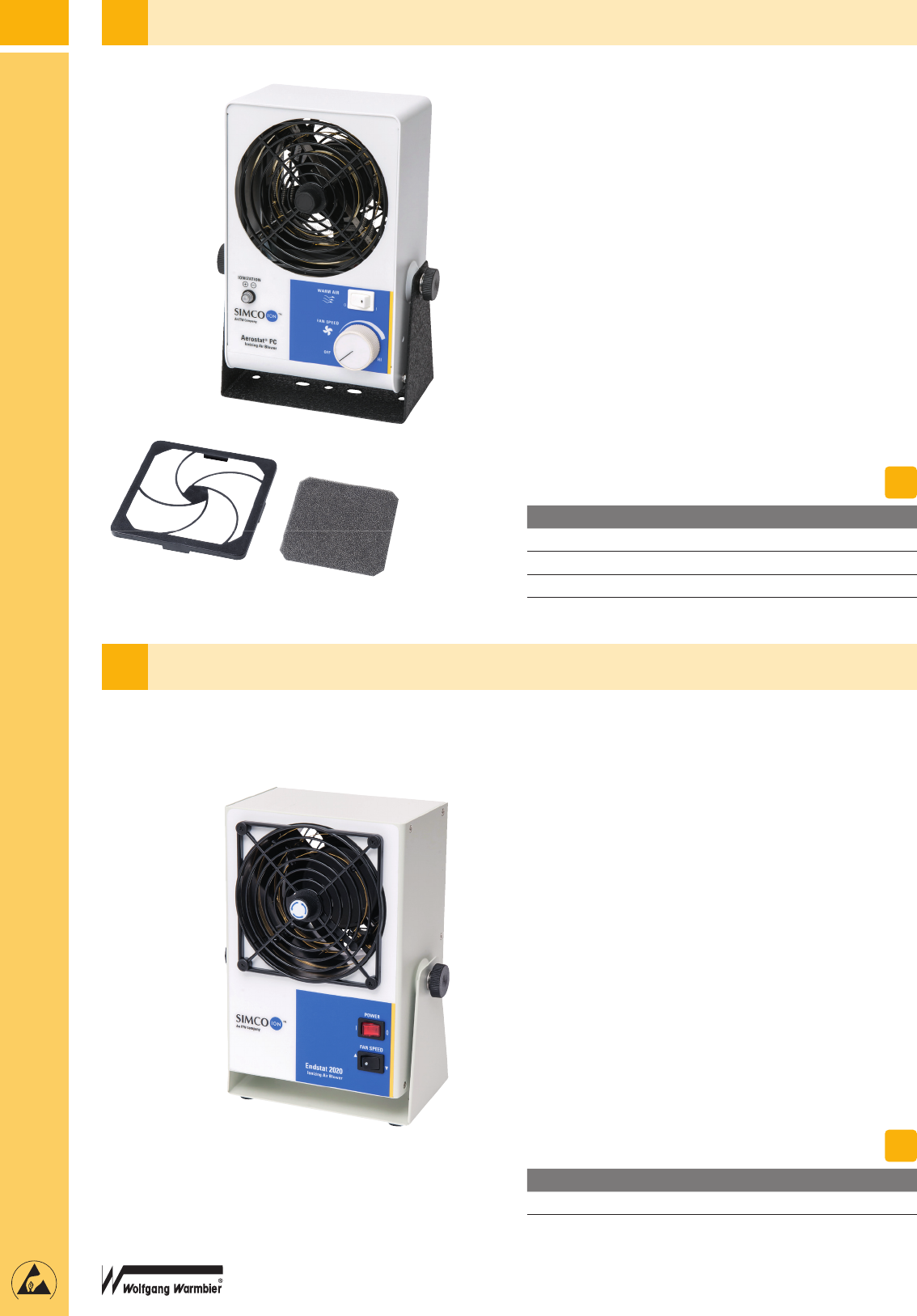

PC – PORTABLE BENCHTOP IONIZER
• Compact and portable, quickly neutralizes static charges
• Effective area 30 x 150 cm
• Unique point cleaner
• Variable speed fan with integrated heater
• Ionization indicator
• Inherently balanced to ± 10 V
• AC technology, Ozone generation: 0,005 ppm, measured 15 cm
in front of the unit
Size: 140 x 219 x 83 mm (W x H x D)
Part Nr. Qty.
7500.PC Portable Ionizer
7500.G.FR Frame
7500.G.F Filter 6 pieces
Accessories
AIR IONIZERS
ENDSTAT
®
2020 – PORTABLE BENCHTOP IONIZER
• Compact and portable, quickly neutralizes static charges
• Effective area 30 x 150 cm
• Unique point cleaner
• Integrated 2 speed fan
• Inherently balanced to ± 15 V
• AC technology, Ozone generation: 0,01 ppm,
measured 15 cm in front of the unit
Size: 145 x 210 x 95 mm (W x H x D)
Part Nr.
7500.ES2020 Portable Ionizer
