77 2020/2021 ! IEC EN METRISO ® B530 BASIC TEST -KIT THERMO-HYGROMETER TF-530 Metriso ® B530 - test kit includes: digital high resistance tester , 2 probes model 870 with extension, a hand-held pr obe with connecting cab…

2020/2021

2280.772.12

2280.774.10

2287.10.4

2287.10.10

2280.779.10

2280.771

2280.778

2280.800

2280.778.6.7 2280.778.6.11

ACCESSORIES

Part Nr.

2280.774.10 Big alligator clip, with a banana plug socket, and a 10 mm snap

2287.10.4 Encapsulated banana plug adapter, includes 10 mm / 4 mm snaps

2287.10.10 10 mm snap 10 mm (stackable snap)

2280.779.10 Tool for 10 mm snap

2280.771 10 mm snap fastener

2280.778 Adapter from a 4 mm banana plug socket to a 10 mm snap fastener

2280.772.12 Top part of 10 mm snap for installation on metal surfaces (without screw)

2280.800 Hollow Punch for punching holes in table mats or floor mats

Forged iron with hardened cutting edges; Aluminium base plate (80 x 80 x 10 mm)

2280.778.6.7 10 mm snap adapter, Hexagon height 3,5 mm, Spanner gap 12 mm, Tread M6 x 16, Total length: 23 mm

2280.778.6.11 10 mm snap adapter, Hexagon height 7 mm, Spanner gap 12 mm, Tread M6 x 16, Total length: 26,5 mm

CENTRAL GROUNDING BOX FOR FLOORING SYSTEMS

Grounding box for connecting ESD flooring material

• Grounding box with 2 screws

• 2 m self-adhesive copper band on roll

• Protection lid

• Banana plug socket

• ESD symbol

Part Nr.

2200.BFE Grounding box with dowel and screw

application

example

sample application

GROUNDING ACCESSORIES

2200.113 .Y

page 75

2020/2021

IEC

METRISO

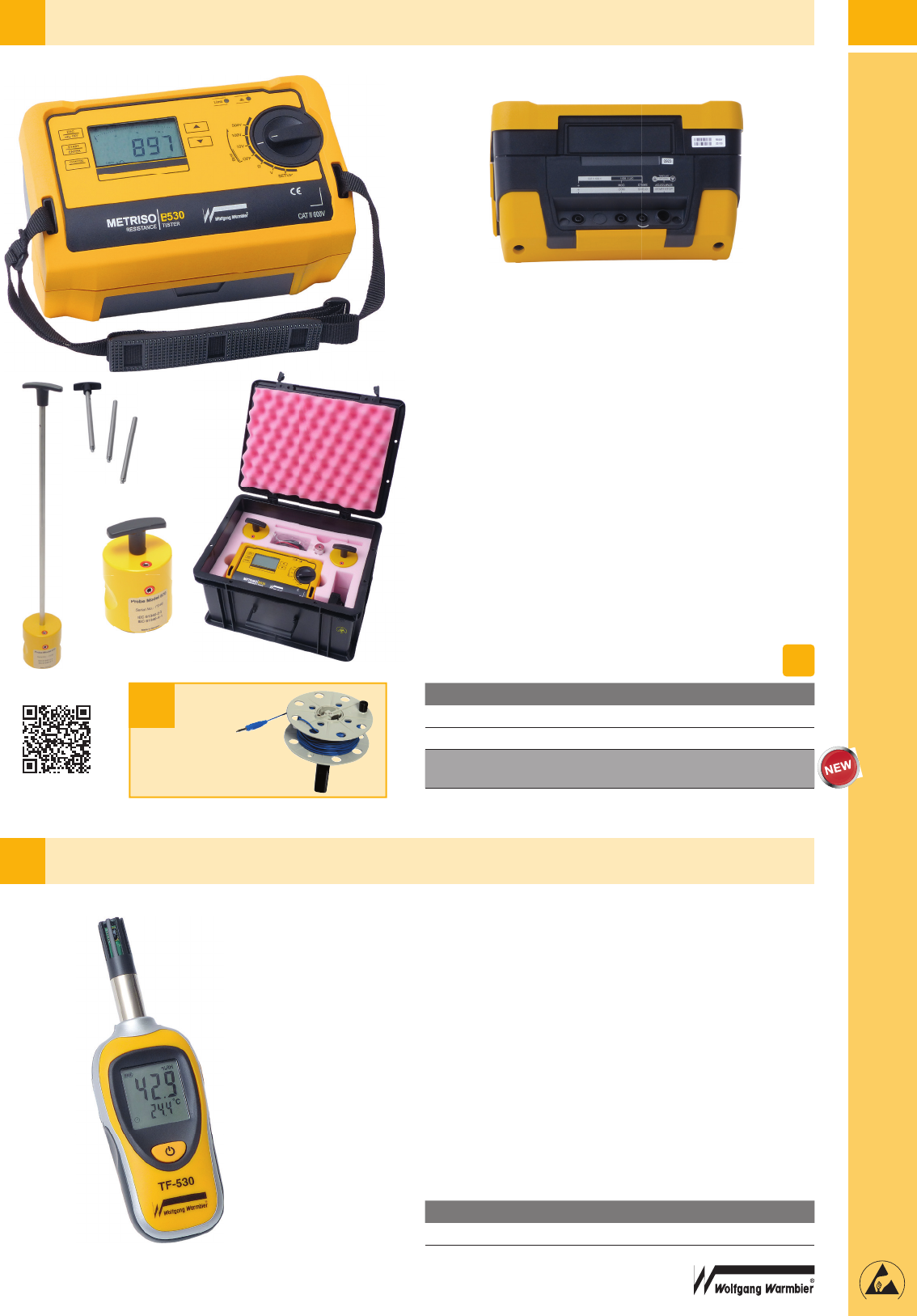

B530 BASIC TEST-KIT

THERMO-HYGROMETER TF-530

Metriso

B530 - test kit includes: digital high resistance tester,

2 probes model 870 with extension, a hand-held probe with

connecting cable, user’s instructions in German, English and

French, calibration certificate, conductive carrying case fitted with

dissipative pink foam.

• Suitable for resistance point-to-point and resistance to ground

measurements

• Test voltage / Test current:

Ohmic range: 1 mA ≤ I ≤ 1,3 mA

High ohmic range: DC 10 volts,100 volts and 500 volts

• Test range:

Low ohmic range: 1 Ohm to 9,99 KOhm

High ohmic range: 1 kOhm to 199 GOhm

• Operation: Battery operated

• Probes: 2 x Model 870 (weight: 2,27 kg / Ø 63,5 mm) with

conductive rubber (grey) and extension, 1 x hand-held probe

Model 45

complies with IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5

Part Nr.

7100.B530.MK Metriso

B530 Basic Test-Kit

7100.B530.G Metriso

B530 Basic, instrument only

7100.B530.MK.850 Metriso

B530 Basic Test-Kit

with probe model 850

Digital thermo-hygrometer, ideal for fast and precise measurement

of temperature and humidity.

• MAX/MIN/HOLD-function

• Backlight

• Automatic shutdown

• Tripod thread 1/4“

• Measuring range:

Temperature: -30...+70°C

Humidity: 0 ... 100%

• Dimension: 165 x 52 x 35 mm (L x W x H)

• Weight: 115g (without Battery)

Includes:

Meter, 9 V-Battery, Leather Case, Manual (german/english),

calibration certificate

Part Nr.

7100.TF530 Digital Thermo-Hygrometer TF-530

TEST AND MEASUREMENT

Cable reel, 50 m,

available on request.

Part Nr. 7100.2000.TR50

video

2020/2021

IEC

METRISO

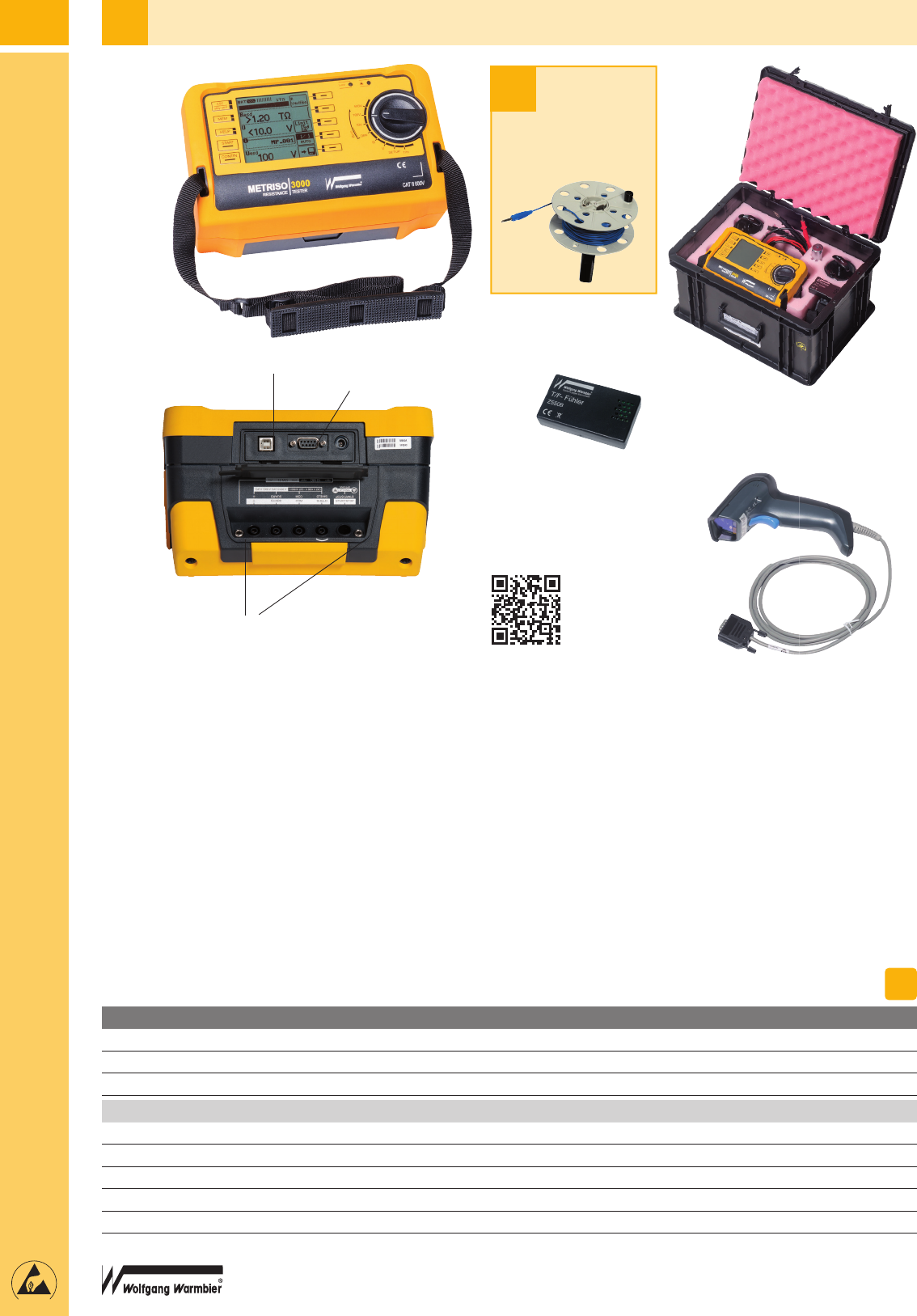

3000 TEST-KIT

Metriso

3000 - test kit includes: digital high resistance tester, temperature and relative humidity sensor, USB port, PC software ETC for

Windows

, 2 probes, a hand-held probe with connecting cable, user’s instructions in German, English and French, calibration certificate,

conductive carrying case fitted with dissipative pink foam.

• Suitable for resistance point-to-point and resistance to ground measurements

• Integrated data logger with USB communication port for data transmission (50.000 test values). The supplied Report Generating Software

ETC allows to generate a complete test report

• Clip-on humidity and temperature sensor

• A barcode scanner can be used in order to record test points before testing

• Test voltage / Test current: 1 mA ≤ I ≤ 1,3 mA

High ohmic range: DC 10 volts,100 volts and 500 volts

• Test range: low ohmic range: 1 Ohm to 9,99 kOhm

High ohmic range: 1 kOhm to 1,2 TOhm

• Operation: Battery operated

• Probes: 2 x Model 850 (weight: 2,27 kg / Ø 63,5 mm)

with conductive rubber

1 x hand-held probe Model 45

complies with

IEC 61340-4-1, IEC 61340-2-3, IEC 61340-4-5

Part Nr.

7100.3000.MK Metriso

3000 Test Kit, menu language German/English/French/Spanish

7100.3000.MK.870 Metriso

3000 Test Kit with Probes 870, menu language German/English/French/Spanish

7100.3000.G Metriso

3000 Test Instrument only, menu language German/English/French/Spanish

Accessories

7100.2000.TR50 50 m extension cable for ﬂ oor measurements

7100.2000.ML Replacement set of connecting cables (com/shield, +pole)

7100.3000.SC.2D Barcode-Scanner for 2D and 1D Codes

7100.3000.Z502H Rechargeable battery pack 8 x NiMH

7100.3000.Z502R Charger unit for rechargeable battery

USB interface

Interface for

T/H sensor and

barcode scanner

sockets to check

10 MOhm reference

resistor

Barcode scanner

Clip-on humidity and temperature

sensor

TEST AND MEASUREMENT

Cable reel, 50 m,

available on request.

Part Nr. 7100.2000.TR50
