95 2020/2021 IEC EN 7100.PGT100.102 2287.10.10 TEST AND MEASUREMENT application example • For point-to-point resistance measur ement on ESD garments • Contact surface made of stainless steel 50 x 25 mm • Clamps ensure go…

2020/2021

IEC

GUARD

COM/SHIELD

TEST AND MEASUREMENT

• Measures surface and volume resistance

• Concentric ring with conductive rubber

(R < 5 ohm) with silver particles

• External use of a 2,5 kg weight or 850 electrode required

• Includes stainless steel plate, insulative plate, conductive carrying

case, blue guard cord and calibration certificate

complies with IEC 61340-2-3

Part Nr.

7220.880.SET Concentric ring probe model 880

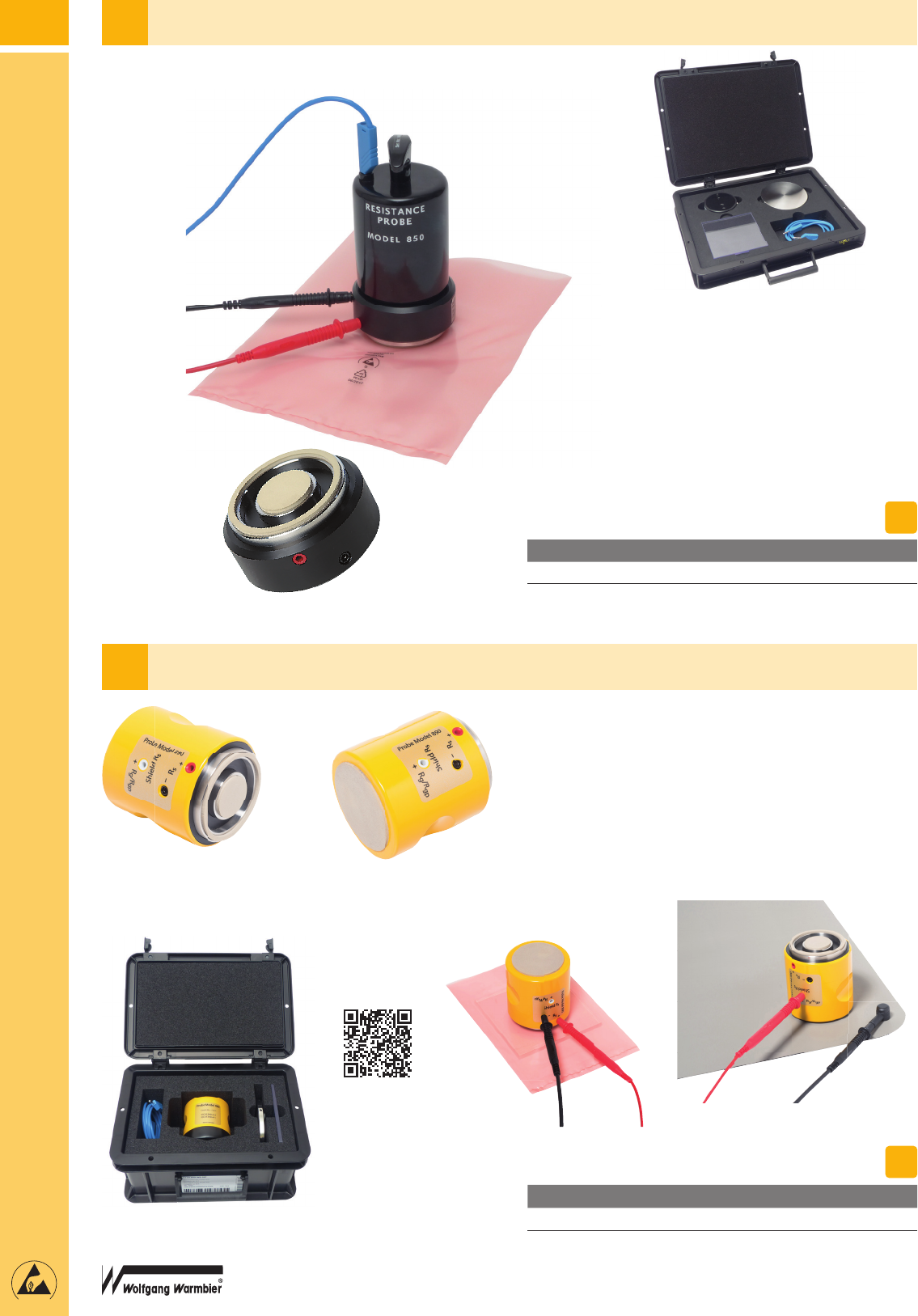

CONCENTRIC RING PROBE MODEL 880

application example:

Connection to a High Resistance Meter

TWO-SIDED PROBE MODEL 890

• For resistance to ground-/ point-to-point resistance /

surface resistance and volume resistance measurement

• Conductive rubber (R < 5 ohm) with silver particles

• Weight: 2,5 kg

• Includes stainless steel plate, insulative plate, blue guard cord,

conductive carrying case and calibration certificate

complies with

IEC 61340-4-1

IEC 61340-2-3

Part Nr.

7220.890.WE.SET Two-sided Probe Model 890

application example: measurement

with concentric ring probe

application example: measurement with

cylindrical probe

Concentric ring probe

Cylindrical probe

Ø 63,5 mm

Video

2020/2021

IEC

7100.PGT100.102

2287.10.10

TEST AND MEASUREMENT

application example

• For point-to-point resistance measurement

on ESD garments

• Contact surface made of stainless

steel 50 x 25 mm

• Clamps ensure good contact

• Connection: banana plug socket

complies with IEC 61340-4-9

Part Nr. Qty.

7220.CL.49 Clamp probe pair

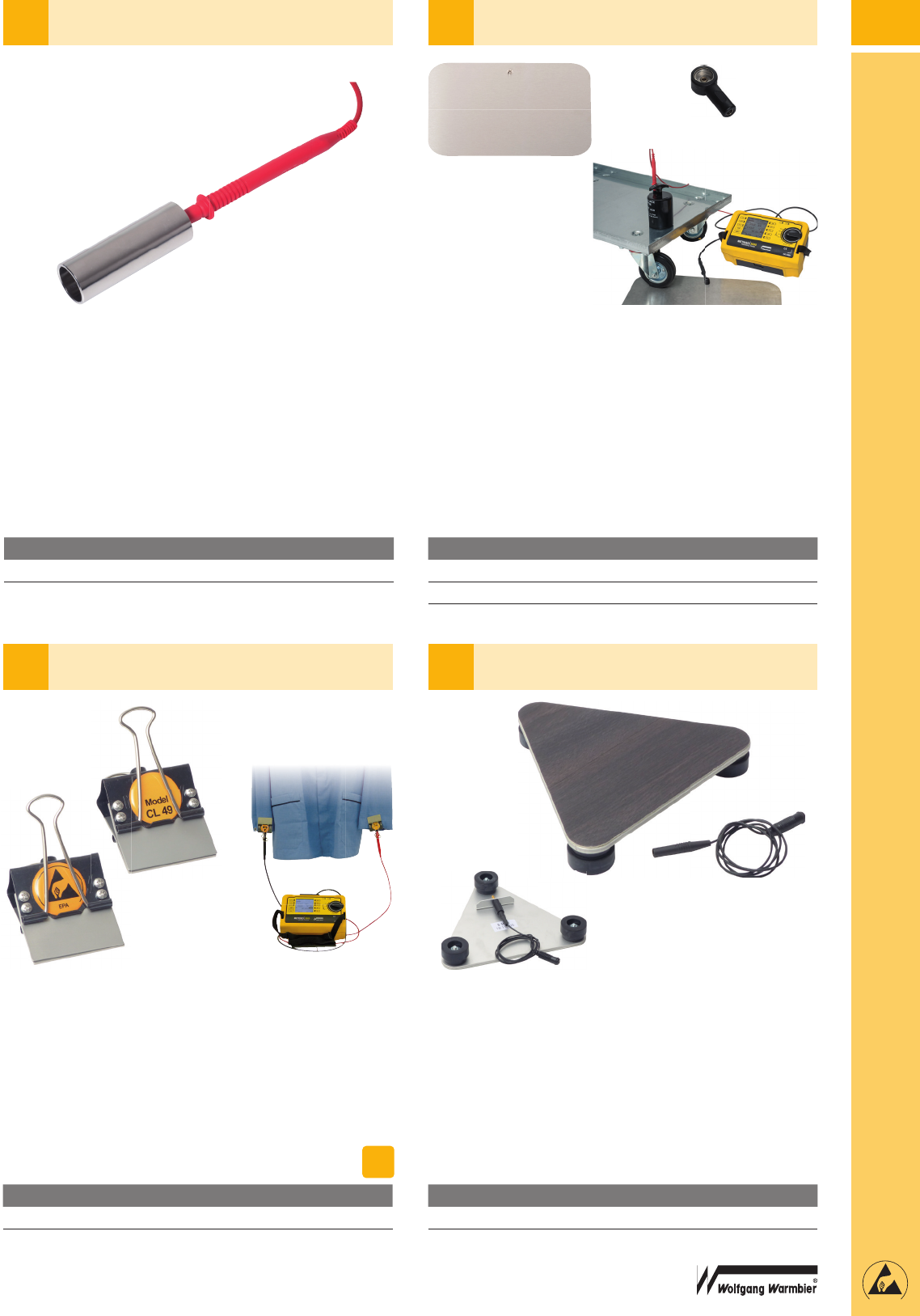

CLAMP PROBE

• Hand-held probe made of electro polished stainless steel

• Ø 25 mm

• Length: 75 mm

• Weight: 130 g

• For body voltage measurement and overall system

resistance measurement according IEC 61340-4-5

Part Nr.

7220.45.N Hand-held probe model 45

HAND-HELD PROBE MODEL 45

• Dimension: 400 x 300 x 2 mm

• 10 mm snap

• For measuring shoes, chairs, transportsystems etc.

• Connection with 10 mm snap / 4 mm banana plug adapter

Part Nr.

7100.PGT100.102 Metal plate

2287.10.10 Banana plug adapter

METAL PLATE

application example

• Tripod probe according to EN 1081 for resistance to ground

measurement in relation to personal safety.

• For measurement of surface resistance, vertical resistance

and resistance to ground according to EN 1081

• Weight 500g

• Contact via Banana Plug

• Rubber hardness: Shore 50-70 IRHD

• Contact rubber R < 500 Ohm

• For measurements there is a need to apply a load

of at least 300 N to the tripod electrode

Part Nr.

7220.1081 Tripod probe

TRIPOD PROBE

2020/2021

300 mm

• For the point to point and resistance to ground measurement

at a 30 cm fixed distance between the electrodes

• Must be connected to a high resistance Ohmmeter

• Conductive rubber (R < 5 ohm) with silver particles

• 950 g weight

• Dimensions: 385 x 85 x 70 mm (L x W x H)

• Contact rubber: Ø 63,5 mm

• Incl. calibration certificate

• Insulative handle

Part Nr.

7220.860 Point-to-point probe model 860

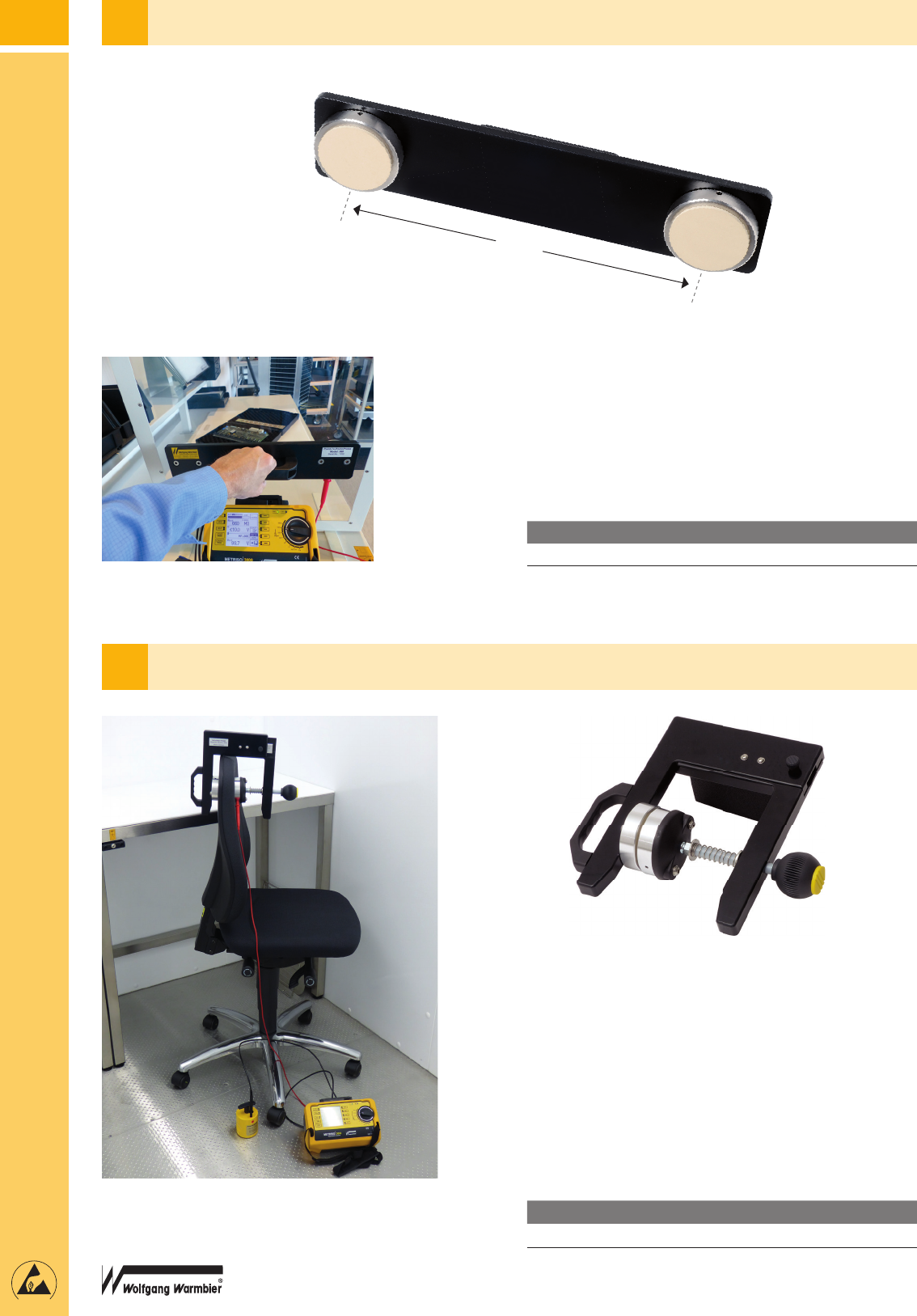

POINT-TO-POINT PROBE

MODEL 860

application example: measurement acrylic cover

TEST AND MEASUREMENT

Measurement in walk-in climatic chamber

BACKREST PROBE

• For resistance to ground measurements of ESD chairs backrests

• Fitted with conductive rubber with silver particles R < 5 ohm

• Insulated handle

• Connection: 4 mm banana plug socket

• Each probe can be contacted separately

Part Nr.

7220.900

Backrest probe
