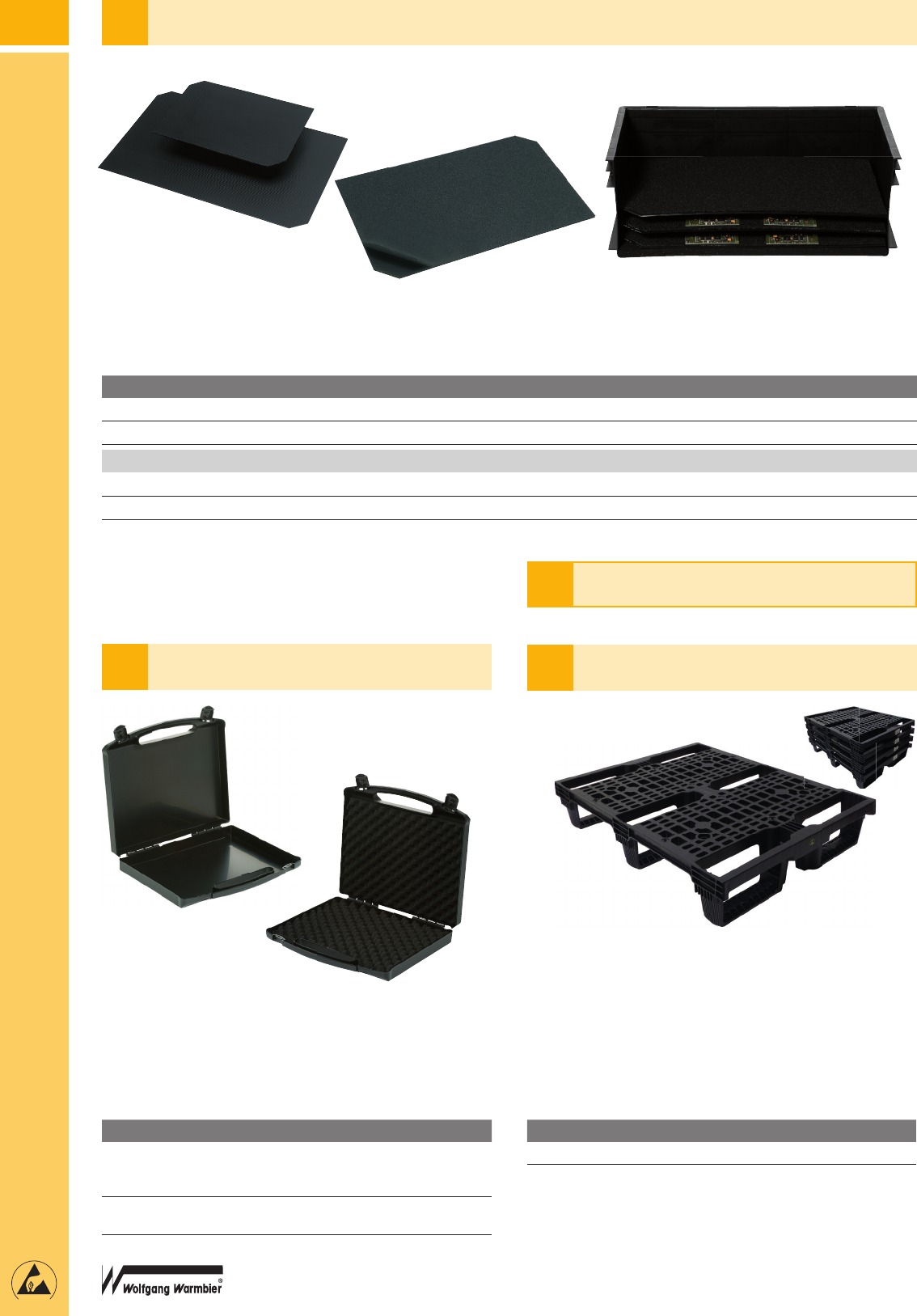

174

2020/2021

• Permanent, carbon loaded, conductive Polypropylene

• Half euro pallet size 800 x 600 x 150 mm

• Perforated support surface

• Stackable

• 3 skids

• Dynamic load up to 400 kg

• Static load up to 800 kg

• Weight: 3,8 kg

• ESD-Symbol

Part Nr. Outer dimensions

5395.400.S 800 x 600 x 150 mm

TRANSPORT PALLET

HANDLING AND STORAGE

CONDUCTIVE CASE

• Permanent conductive carbon loaded Polypropylene

Part Nr. Description Inner dimensions (L x W x H)

5100.K42.N black conductive

case, with foam

insert

240 x 170 x 42 mm

5100.K53 black conductive

case

340 x 250 x 53 mm

TOTE BOXES SEPARATORS

• Permanent, carbon loaded, conductive Polypropylene

Part Nr. Outer dimensions

5401.0253 353 x 253 x 3 mm with 2 cut edges

5401.0353 553 x 353 x 3 mm with 2 cut edges

Separator, carbon loaded conductive Polypropylene with 3 mm Polyethylene foam (glued together), with 2 cut edges

5425.0353.0553.PE 553 x 353 x 6 mm

5425.0253.0353.PE 353 x 253 x 6 mm

sample application

Custom sizes available on request.

175

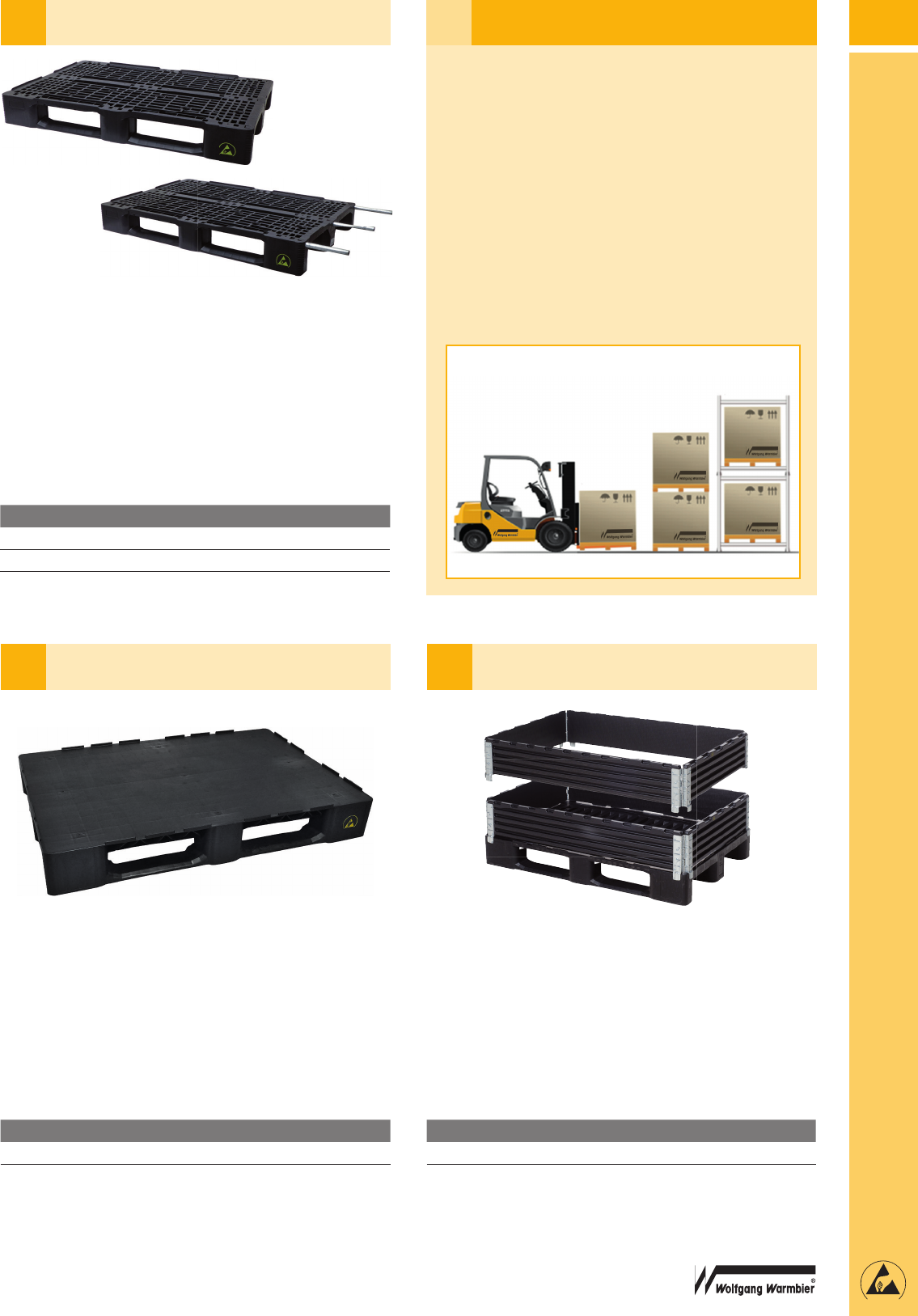

2020/2021



HANDLING AND STORAGE

• Variable stacking of frames

• Frames with 4 corner hinges, foldable

• Material: conductive PS, carbon loaded

• Dimension: 1200 x 800 x 200 mm

• Weight: about 5,2 kg

• With ESD Symbol

Part Nr. Outer dimensions Inner dimensions

5395.AR 1200 x 800 x 200 mm 1140 x 745 x 200 mm

STACKABLE FRAME FOR PALLETS

• Dimension: 1200 x 800 x 155 mm

• Permanent, carbon loaded, conductive Polypropylene

• Euro pallet size 1200 x 800 x 155 mm

• Static load up to 7.500 kg

• Dynamic load up to 2.500 kg

• Closed top surface with 10 mm frame

• Weight: approx. 15 kg

• ESD-Symbol

• Suitable for the stackable frames 5395.AR

• Shelf load: 500 kg

Part Nr. Outer dimensions

5395.PAL 1200 x 800 x 155 mm

TRANSPORT PALLET

CLOSED TOP SURFACE

• Permanent, carbon loaded, conductive Polypropylene

• Pallet can be reinforced with 3 calvanized metal pipes

• Euro pallet size 1200 x 800 x 150 mm

• Static load up to 4.000 kg

• Dynamic load up to 1.000 kg

• ESD-Symbol

• Stackable

• Weight: 11 kg

• With 7 mm frame

• Shelf load without pipes: 400 kg

with pipes: 800 kg

Part Nr. Outer dimensions Description

5395.800 1200 x 800 x 150 mm Transport pallet

5395.800.MS 3 metal pipes

TRANSPORT PALLET LOAD-BEARING PROPERTIES

Transport pallets have different load-bearing properties:

• Dynamic load:

During the transport with a fork lift.

• Static load:

When storing the pallets on a solid ground.

• Shelf load:

When storing the pallets in a shelf.

dynamic

static

shelf load

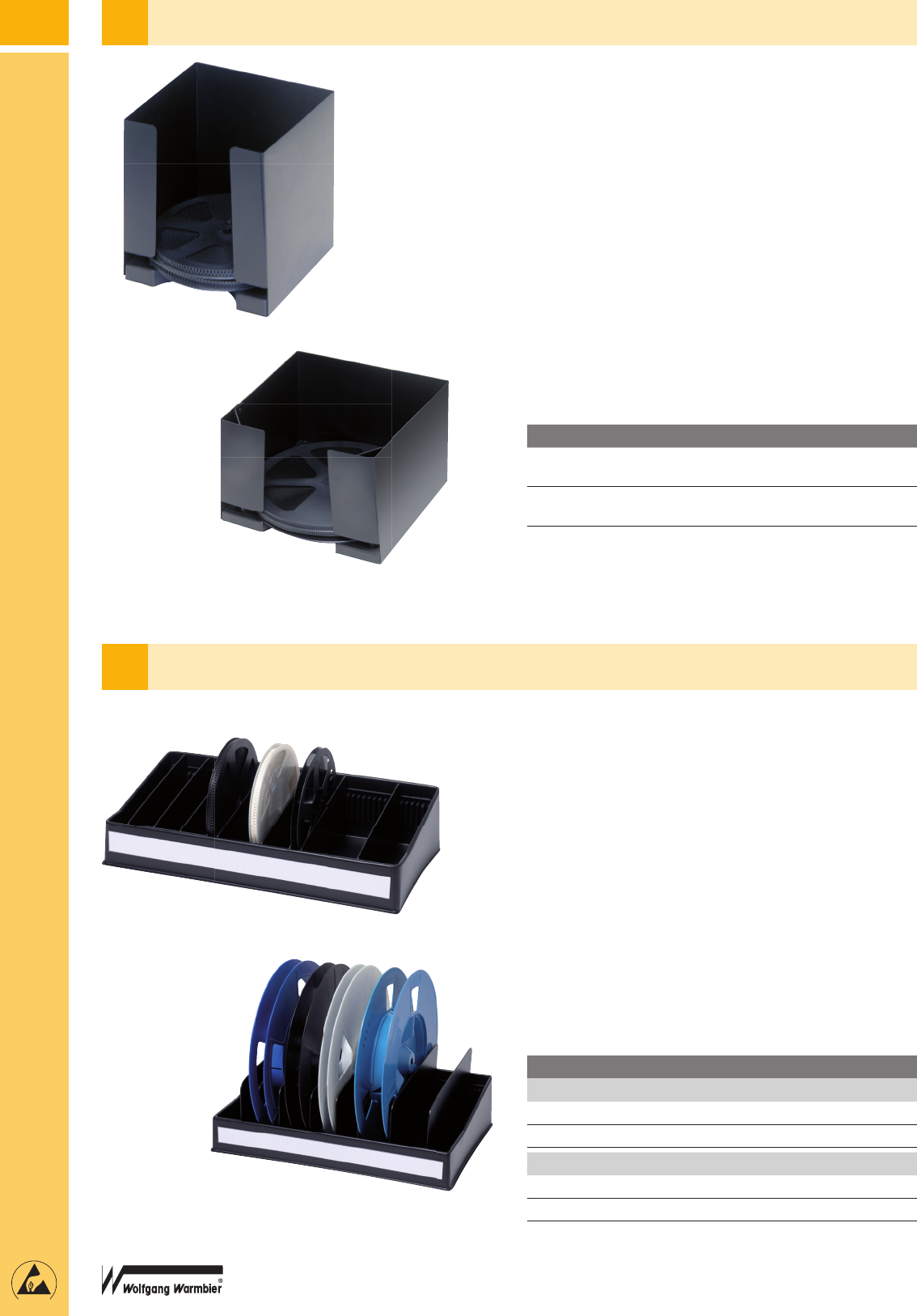

176

2020/2021

5200.03.H.S

5200.03.H.L

5200.04.V.S.10

5200.04.V.L.10

HANDLING AND STORAGE

SMD SPOOL RACKS

Fifo-Principle

(ﬁ rst in, ﬁ rst out)

• Permanent, conductive carbon loaded Polystyrene

• For storage of SMD reels

Part Nr. Inner dimensions (L x W x H)

5200.03.H.S 182 x 169 x 190 mm

max. Ø 180 mm

5200.03.H.L 335 x 315 x 190 mm

max. Ø 330 mm

SMD SPOOL RACKS

• Permanent, conductive carbon loaded Polystyrene

• For storage of SMD reels

Supplied with 10 separators and a label

Part Nr. Outer dimensions (L x W x H)

Spool diameter: max. Ø 250 mm

5200.04.V.S.10 450 x 240 mm

5200.04.ST.S Single separator

Spool diameter: max. Ø 330 mm

5200.04.V.L.10 455 x 315 mm

5200.04.ST.L Single separator
