4 – 149

• When a KE-2030 series station is selected, three modes are displayed on the

screen: Parallel, Left Station, and Right Station.

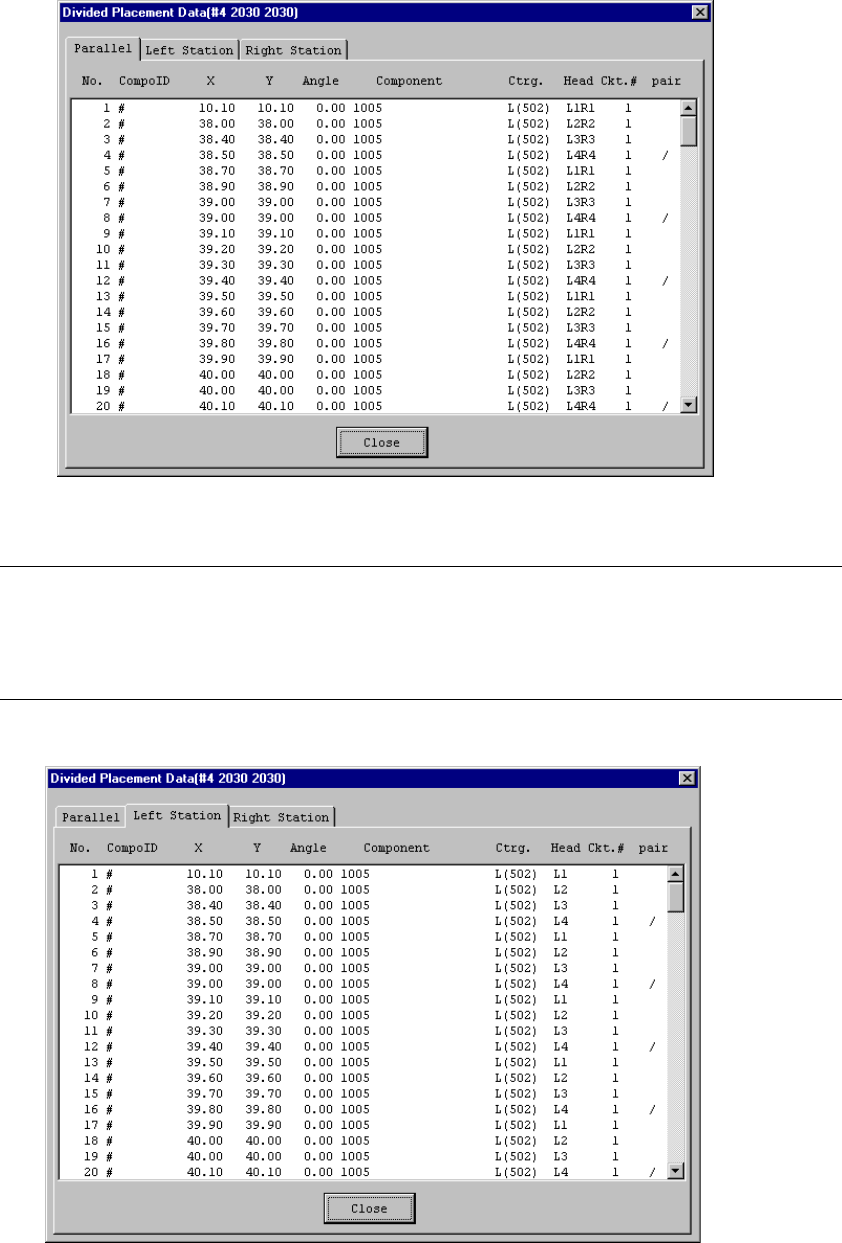

Figure 4.10.2.3 KE-2030 Station Divided Placement Data Display Example

(When you click the “PArallel” tab)

Note:

•

When displayed in optimization order, the pair end mark “/” indicates the

separation of data paired during one pick and placement cycle of operation.

•

When you use a KE-2030, three tabs are displayed on the screen: “Both

stations” (left and right heads), “Left Station” and “Right Station”.

Figure 4.10.2.4 Divided Placement Data screen example

(KE-2030 Left station)

4 – 150

4.10.3

Nozzle layout

This command displays the nozzles assigned to each station by the Optimization

utility.

Figure 4.10.3.1 Nozzle Layout Selection

Select the “Nozzle Layout” menu command from “Optimization” menu. The sub-menu

appears which allows you to select a station. Select the desired station on this

sub-menu.

Notes:

①

This menu cannot be selected if optimization has not been preformed or

if the production program has been changed after optimization.

②

Nozzle displayed here are nozzles that are set in the Machine setup

menu and nozzle used in the program data.

The following window displays after a station is selected:

Figure 4.10.3.2 Nozzle Layout Display Example

4 – 151

• Perm. Nozzle (Permanent nozzle):

Nozzle layout which is set on the Machine setup menu.

• Opt. Nozzle (Optimized nozzle):

Nozzle layout which is output with the Optimization utility.

• No. of Nozzles:

Number of nozzle resources (Resource), the number of nozzles set as

the permanent information (Perm. Info) and the number of nozzles output

with the Optimization utility (Opt.) are displayed here.

• 2030 Display Station:

Select a station to be displayed.

• Close: Quits the Nozzle layout dialog box.
