(3) Production operation
Table 7.2.2.7.3 Placement when set to “Unused”
No. Unit Production operation
1 Stops by detected
feeder float
The XY speed becomes slower when the sensor detects feeder floating while
the XY axe are moving.
When the sensor detects feeder floating before the XY axes moves, the
machine asks the operator whether to retry the sensor detection operation.
When the operator selects “Retry”, the sensor reconfirms feeder floating.
When he or she selects “Cancel”, the production is terminated.
2 Bank mark Recognition
(front, rear)
The function is disabled but placement of components is carried out.
3 SOT Inspect Stage You cannot specify the SOT direction check on the tracking menu.
4 Back Master-Bank
[Non-stop]
Places the master bank on the front (“Front” means the front side of the main
unit.).
5 Do not use sensor
delay when Re-clamp
Does not use the setting of the “Delay for PWB conveyor sensor” of the
“PWB conveyor” setup group on the Machine setup menu when the system
clamps a board again.
Table 7.2.2.7.4 Placement operation to be performed if you check any of the
check boxes of the “Optimization function” group
No. Unit Production operation
1 Disable feeder
optimization
The “Pick Data” option displayed on the dialog box that appears when you
execute the [Optimization] command on the “Optimization” menu of the
Program Editor utility is fixed to “Auto assign all data”. You cannot select
any other option.
2 Disable nozzle
optimization
The “Nozzle” option displayed on the dialog box that appears when you
execute the [Optimization] command on the “Optimization” menu of the
Program Editing utility is fixed to “Use permanent nozzle setup from MSL
Setup”. You cannot select any other option.
7 − 30
7.2.2.8 Multi-station line
A screen appears as shown in Figure 7.2.2.8.1 “Multi-station line setting dialog box”
when [Multi-station line] is selected from the [Setting Group] menu.
Figure 7.2.2.8.1 Multi-station line setting dialog box
(1) Setting items
No. Item Description
1 HLC connection This command is used to define whether or not this machine is connected to
an HLC in a multi-station line where two or more general purpose placers,
chip placers and bonding machines are connected to the HLC.
2 IP address Since the HLC and each station are to be communicated with each another
via the network, an IP address needs to be defined for each station.
(2) Setting the Multi-station line
① Connection to the HLC
− Using the radio button, define whether or not the machine is to be
connected to the HLC. (Default setting: Not connected)
② Connecting method (IP address)
− Each field of an IP address can be any number from 0 to 255. Two or
more stations cannot have the same IP address. Note that you cannot
set all fields to “0”.
− An IP address is a fixed number for the HLC.
− When “Connected” is selected with the “HLC connection” radio button,
set each field of an IP address to a value from 0 to 255. This dialog
cannot be closed when a number out of that range is set.
7 − 31
7.2.2.9 PWB conveyor
A screen appears as shown in Figure 7.2.2.9.1 “PWB conveyor setting dialog box”
when [PWB conveyor] is selected from the [Setting Group] menu.

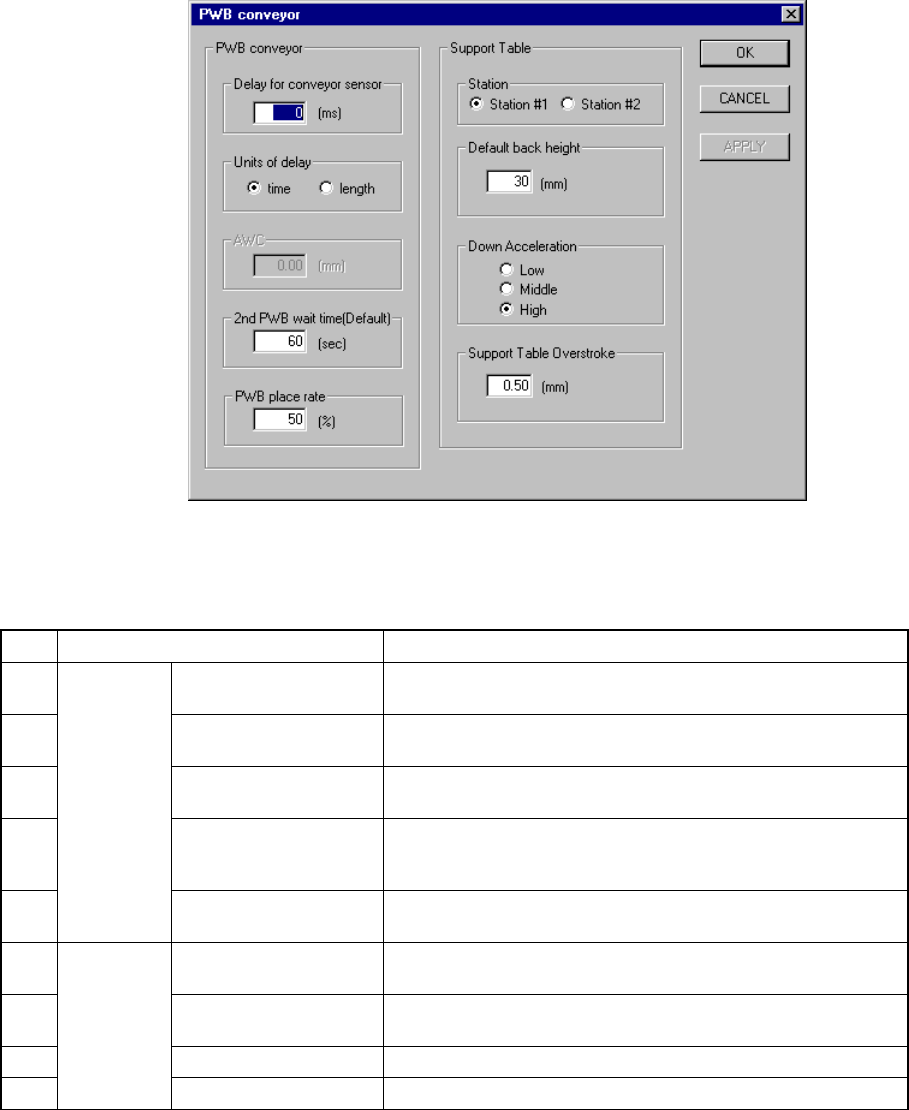

Figure 7.2.2.9.1 PWB conveyor setting dialog box
(1) Setting items
No. Item Description
1 Delay for conveyor
sensor
Sets the delay time or distance of the board conveyor sensor
for a cut out board or punch hole board.
2 Units of delay Sets the unit used for the delay of the board conveyor sensor
specified with the item “Delay for PWB conveyor sensor”.
3 AWC Sets the automatic PWB width adjustment value to be used to
transport a PWB. (No Use)
4 PWB wait time This value is used as the default for the menu item “PWB wait
time” on the Production conditions dialog box.
(for a KE-2030 only).
5
PWB
Conveyor
PWB place rate Set the possibility that the second PWB is sent into a station
(for a KE-2030 only).
6 Setting head Specifies the head to be set on the backup table box
(for a KE-2030 only)..
7 Under Limit for
conveyor
Sets the PWB position lower limit on the backup table.
8 Down Acceleration Sets the acceleration of the backup table.
9
Back Up
Table
Press In Sets the stroke pressure of the backup table.
(2) How to set
① Delay for conveyor sensor
− This can be set in the range from 0 to 1000.
As a guide, set "60 ms" for a cut out board.
