6 − 88
The actual operation to be performed according to your selecting
each item on the “Processing before production begins” dialog box
is described below.
Ⅰ
ⅠⅠ
Ⅰ When there is a continuous production file
(1) When the system re-clamps a board (When the system resumes the suspended
production)
◇ If you have interrupted the current production

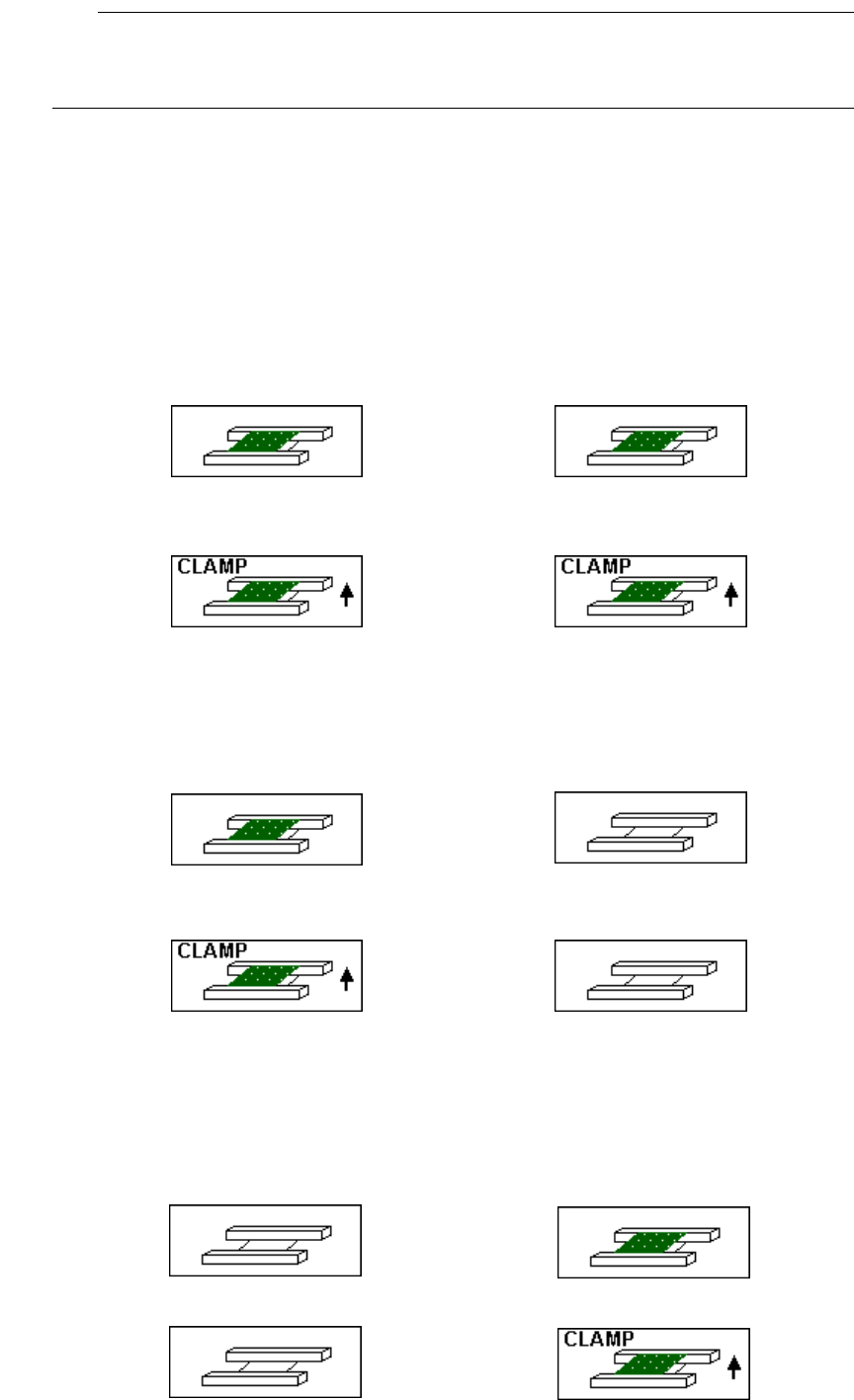

① When the system performs PWB production in Simultaneous Production mode,
you select “Sequential and Mix Mode” as the placement mode, and boards are
located on both of the stations
IN station (during production) OUT station (during production)
↓
IN station (re-clamping is available) OUT station (re-clamping is available)
② While the system is producing a PWB with the IN station (Only the IN station is
used for production or the IN station is used for production in “Sequential and Mix”
mode)
IN station (during production) OUT station (no board)
↓
IN station (re-clamping is available) OUT station (no board)
③ While the system is producing a PWB with the OUT station (Only the OUT station
is used for production, the OUT station is used for production in “Sequential and
Mix” mode, or a board load time-out error occurs in Simultaneous Production
mode and so only the OUT station is used for production.)
IN station (no board) OUT station (during production)
↓
IN station (no board) OUT statio(re-clamping is available)n
6 − 89
◇ If the system is loading a board (regardless of whether to perform the continuous
production)
④ When the system is loading a board in Simultaneous Production mode,
“Sequential and Mix” mode as the placement mode, and boards are located on
both of the stations
IN station (while a board is being loaded) T station (while a board is being loaded)
↓
IN station (re-clamping is available) OUT station (re-clamping is available)
⑤ While a board is being loaded onto the IN station (Only the IN station is used for
production or the IN station is used for production in “Sequential and Mix” mode.)
IN station
（
while a board is being loaded) OUT station (no board)
↓
IN station (re-clamping is available) OUT station (no board)
⑥ While a board is being loaded onto the OUT station (Only the OUT station is used
for production, the OUT station is used for production in “Sequential and Mix”
mode or a board loading time-out error occurs in Simultaneous Production mode
and so only the OUT station is used for production.)
IN station (no board) IN station (during production)
↓
IN station (no board) OUT station (re-clamping is available)
6 − 90
◇ If a board is ejected when you select to re-clamp a board
⑦ If a board waits for being ejected in “Sequential and Mix” mode and it causes a
board eject error
(When a continuous production file is used, and board re-clamping is selected)
Loading side (waiting) IN station (waiting) OUT station (error) Ejecting side (waiting)
↓
Loading side IN station
OUT station
(ejecting a board)
Ejecting side
(ejecting a board)
↓
Loading side IN station
OUT station
(board re-clamping)
Ejecting side
◇ In this case, you have to feed a board located on the ejecting side to the next
process, a board located on the OUT station to the ejecting side, and a board
located on the IN station to the OUT station to clamp it.
Note that after ejecting boards located on the OUT station and ejecting station,
the system re-clamps a board located on the IN station with the OUT station to
start the continuous production.
⑧ If a board ejecting error occurs while a board located on the ejecting side waits for
being ejected during production with the OUT station
(when you select to re-clamp a board on the “Processing before production
begins” (when there is no continuous file) dialog box)
Loading side (waiting) IN station (waiting) OUT station (error) Ejecting side (waiting)
↓
Loading side IN station
OUT station
(ejecting a board)
Ejecting side
(ejecting a board)
↓
Loading side IN station
OUT station
(board re-clamping)
Ejecting side
◇ In this case, you have to feed a board located on the ejecting side to the next
process, a board on the OUT station to the ejecting side, and a board on the IN
station to the OUT station to re-clamp it.
Note that after ejecting boards located on the OUT station and ejecting station,
the system re-clamps a board located on the IN station with the OUT station to
start production (new production or the suspended production).
IN →
→→
→OUT
