6 − 66
6.4.6 Detect feeder sensor
When the feeder float sensor is detecting a feeder float state, pressing the <START>
key causes an error and cannot start/restart production.
If the feeder float state is detected during production (when the XY axes are moving),
the dialog box appears as shown in Figure 6.4.6.1 and the machine is put in the
pause state. However, when the menu item "Pauses immediately when the feeder
floats." is checked on the Setup menu, the current production is terminated due to an
error, and this dialog box does not appear on the screen.
Figure 6.4.6.1 "Detect feeder sensor" dialog box
To start/restart the production, set correctly the feeder and press the <START> switch
on the operation panel. When the <STOP> switch is pressed with this dialog box
displayed, the production stop dialog box appears and the production stops.
6 − 67
6.4.7 Pause as component protection
If a recognition error occurs at a component designated as a protective component
specified in the component data of production program (on the Expanded window),
the machine is put in the pause state and the message box appears as shown in
Figure 6.4.7.1.
Figure 6.4.7.1 "Pause as component protection" dialog box
Remove the component being picked by the nozzle with your hand, and select the
<OK> button. Then, the machine is put in the pause state with the dialog box
displayed as shown in Figure 6.4.7.2.
Figure 6.4.7.2 Pause dialog box due to component protection
Pressing the <START> switch on the panel of the main unit scraps the component,
and then restarts the production. Pressing the <STOP> switch puts the machine in the
pause state with the production stop dialog box displayed.
6 − 68
6.4.8 Checking to see if a laser head is stained
When you check the check box “Check dirty of Laser sensor.” of the “Production
(Function 2)” tab that is invoked from the Operation Option screen, the system checks
to see if laser heads are stained when a board is sent into the machine. If the
system detects any stain stuck to the laser head(s), the system pauses.
◇ The laser head(s) that is (are) found to be stained is displayed in blue on the
screen.
◇ The stained head stops temporarily after moving to the front side. Clean the
laser head.

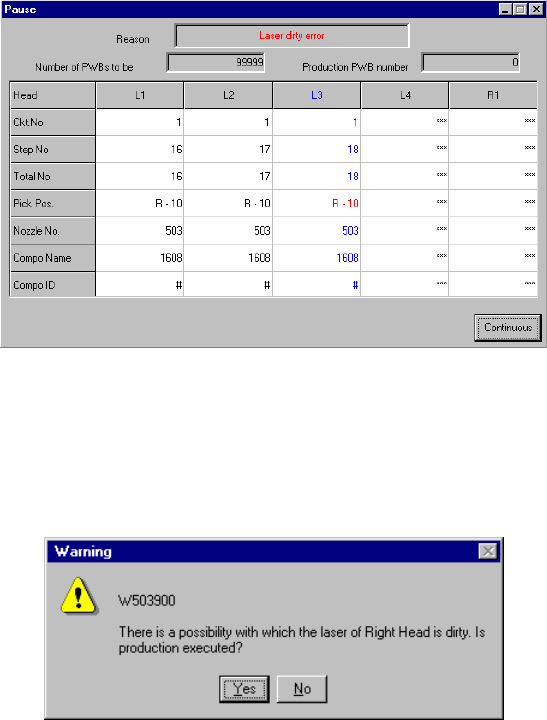

Figure 6.4.8.1 Pause dialog box
When you press the <START> switch, the system checks to see if the laser heads are
stained again. When it does not detect any stain on the laser heads, it restarts
production. Otherwise, the following message appears on the screen.
Figure 6.4.8.2 Dirty laser head message
When you click the <Yes> button: the system starts production.
When you click the <No> button: the “Pause” dialog box reappears on the screen.
◇ The system checks to see if the laser heads are stained again. The stained
laser head(s) is (are) displayed in blue. Clean the laser head(s) displayed in
blue. When you press the <STOP> button on the “Pause” dialog box, the
system displays the “Abort” dialog box to abort the current production.
