ACT - Accuracy Check Tool / User Manual 07/2014 Edition
28
4 Working with the ACT
4.1 Specifying the Placement and Measurement Program from
SIPLACE Pro (Placement Program Overview)
NOTICE
Placement program overview
The placement programs available vary according to the machine type and head/camera
configuration.
Machine Head
Head
camera Nozzle Placement program
X-/SX-/DX-series C&P20x
SST 23,
SST 41
1004 / 1014 /
4004
ACT_1xC&P20
1)
80 x Cerampad
CAx,
X S micron
C&P20x SST 41 1004 / 1014
ACT_1xC&P20_HighPrecision
(80 x Cerampad), as of SIPLACE Pro 11.2
X-/SX-series 2 x C&P20x
SST 23,
SST 41
1004 / 1014 /
4004
ACT_2xC&P20
1)
(2 x 80 x Cerampad)
CAx,
X S micron
2 x C&P20x SST 41 1004 / 1014
ACT_2xC&P20_HighPrecision
(80 x Cerampad), as of SIPLACE Pro 11.2
X-/SX-/DX-/
D-series
C&P12;
CPP
(C&P mode)
SST 28,
SST 29,
SST 30,
SST 38
904 / 914;
2004 / 3004
ACT_1xC&P12
1)
(96 x Cerampad)
X-/SX-/DX-/
D-series
2 x C&P12;
2 x CPP
(C&P mode)
SST 28,
SST 29;
SST 30,
SST 38
904 / 914;
2004 / 3004
ACT_2xC&P12
1)
(2 x 96 x Cerampad)
D-/X-series C&P6 SST 29 920 / 956
ACT_CC02-05
(48 x CC02-05)
CAx C&P6 SST 29 904 / 914
ACT_1xC&P12_CA
(96 x Cerampad)
X-/SX-/DX-/
D-series
TH-IC
P&P-IC
SST 33,
SST 36
518
ACT_CC02-05
(48 x CC02-05)
X-/SX-/DX-/
D-series
TH-FC,
P&P-FC
SST 25 518
ACT_CC07-500
2)
(48 x CC07-500)
X-/SX-series
Station SW >= 707.1
TH-FC SST 25 518
ACT_CC02-05_FC
2)
(48 x CC02-05_FC) as of SIPLACE Pro 11.2
X-/SX-series
CPP
(P&P mode)
SST 33
2057
ACT_CC02-05_CPP
(48 x CC02-05_CPP)
Table 4-1: Assignment of machine, board, head
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
29
1)
These programs are also available with suffix "…_CA" respectively for measurement in a
SIPLACE CA-series placement machine.
2)
As of SIPLACE Pro 11.2 and station software version >= 707.1, the CC02-05 glass components
can be used for the camera SST25 (Flip-chip camera) measurement. For this, the
"…_CC02-05_FC" board or component has been created. Thus, it is not mandatory to buy an
optional tray with CC07-500 components for measuring this camera.
As of SIPLACE Pro 11.2, boards, components and tables with CC07-500 are not available
anymore. If required (e.g. because the components are already available), this data can be
imported from previous SIPLACE Pro versions. The data (board with components and component
shapes) is available as an export from SIPLACE Pro 9.x and may be ordered at the Software
License Portal or via the Hotline and then imported into SIPLACE Pro 11.2.
For the setup, you have to copy the respective table with CC02-05 and exchange the component in
the tray.
NOTICE
Placement machines with dual conveyors
When using a dual conveyor, the ACT should be run with both conveyors.
4.1.1 Creating a Setup (Assigning Tables)
► Copy an existing setup of your line.
► Replace the tables by using the prepared tables for ACT that you have already imported. (see
section 3.2.5).
Tables are available for each possible machine.

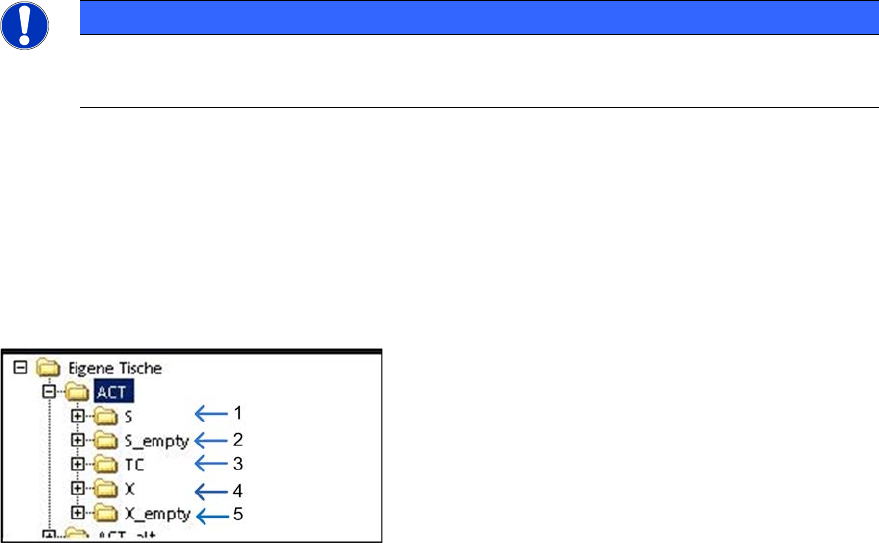

Key:
(1) S-tables with setup (4) X-tables with setup
(2) Empty S-tables (5) Empty X-tables
(3) TC = Tray Changer (WPC/MTC)
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
30

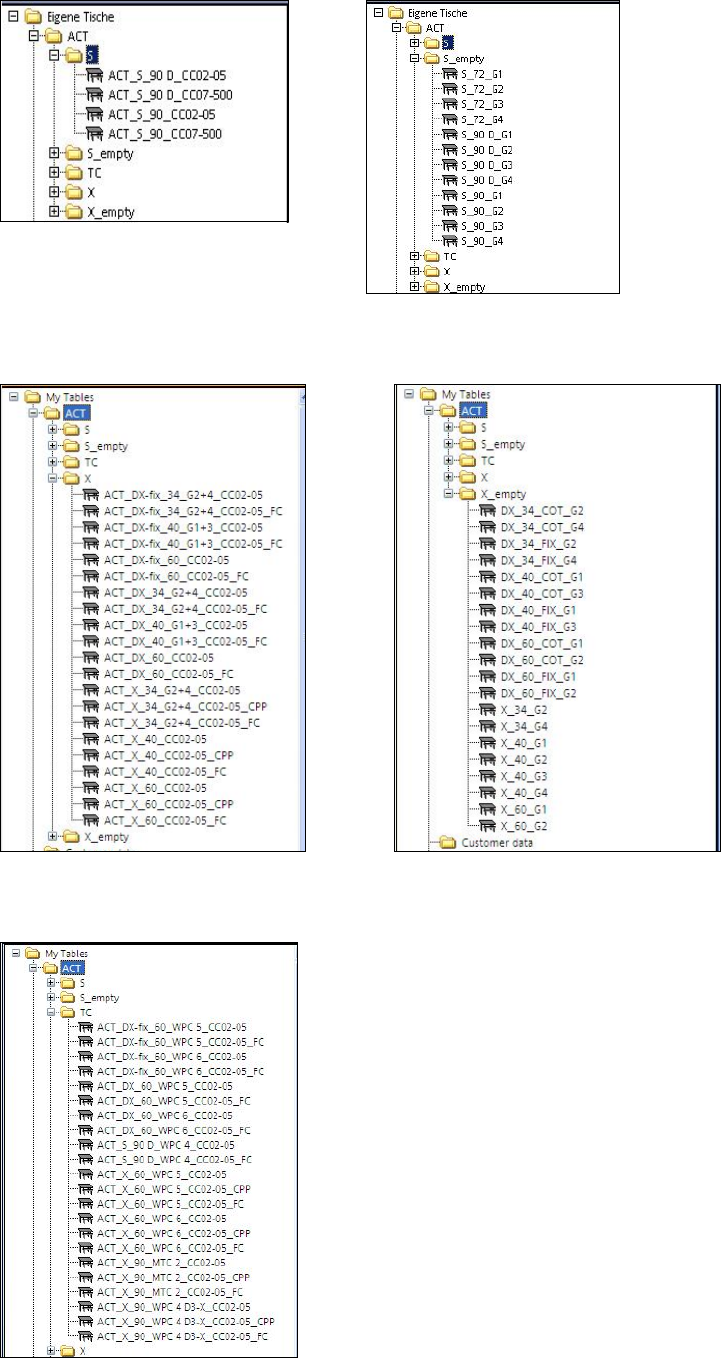

Available S-tables:
Available X-tables:
Available tables (setups) for WPC/MTC:
