ACT - Accuracy Check Tool / User Manual 07/2014 Edition
70

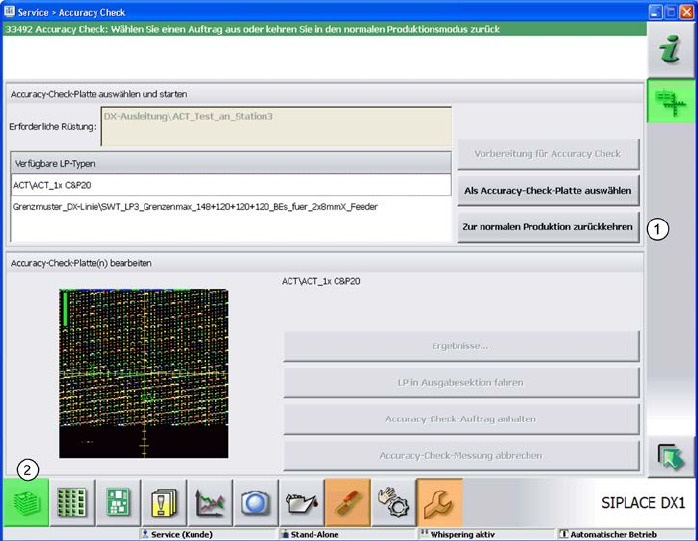

► Click the Zur normalen Produktion zurückkehren (Return to regular production) button (1) in
the next window.
Figure 4-52: Returning to regular production
► Click on the button to the left at the bottom (2) to return to the main view of the GUI.
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
71
5 Appendix
5.1 Installing the ACT on Stations with Station Software 605.xx
► Place the CD provided with the package in the machine drive.

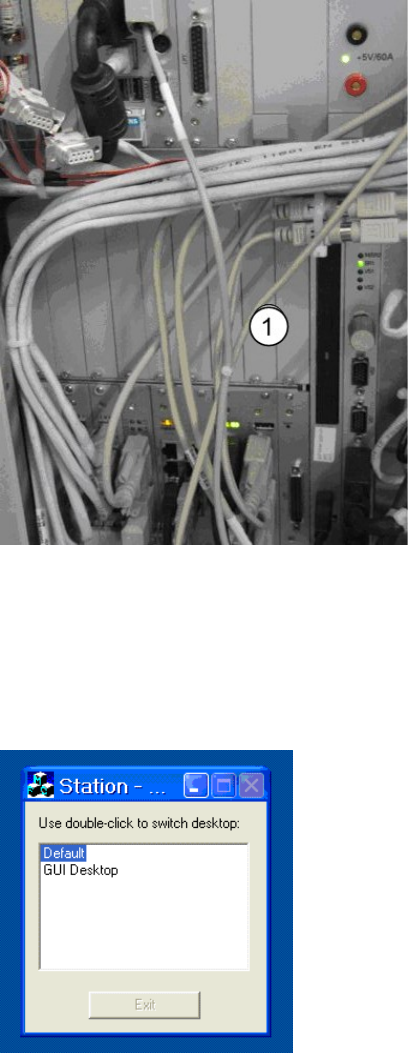

Figure 5-1: CD drive on the station
Key:
(1) Station CD drive.
► Switch to the operating system (Default).
Figure 5-2: Default view on the station
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
72
The following screen is displayed:
Figure 5-3: Default screen, password entry
► Enter "Service" as password.
► Click OK.
Figure 5-4: Double-clicking the setup.exe file on the CD
► Double click the setup.exe file on the CD.
A password is requested before installation of the ACT (Figure 5-5).
Figure 5-5: Entering the password after double-clicking setup.exe (before installing the ACT program)
► Enter the administrator password.
