ACT - Accuracy Check Tool / User Manual 07/2014 Edition
18
3.2.3 Importing the SIPLACE Pro Data - Procedure
The import of boards and tables is described below:
► Insert the ACT CD into the appropriate drive on the SIPLACE Pro computer.
(Alternatively, you can provide the data from a USB stick).
► Start the SIPLACE Pro Desktop software.

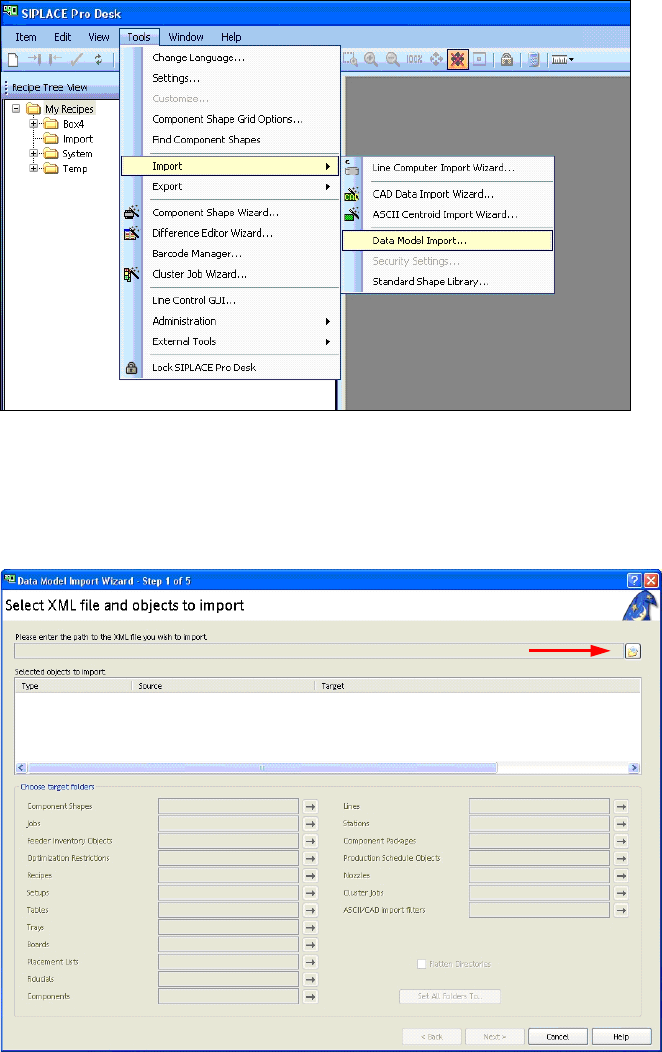

Figure 3-9: SIPLACE Pro view: Menu for importing the placement programs
► Select the Data model import function as shown in Figure 3-9:
Tools – Import – Data model import
View on screen:
Figure 3-10: Data import screen
► Click on the folder next to the red arrow (Figure 3-10).
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
19
3.2.4 Importing Boards in SIPLACE Pro
► Select the appropriate folder to your software.
► Click on the file with the board programs on the ACT CD (Figure 3-11).

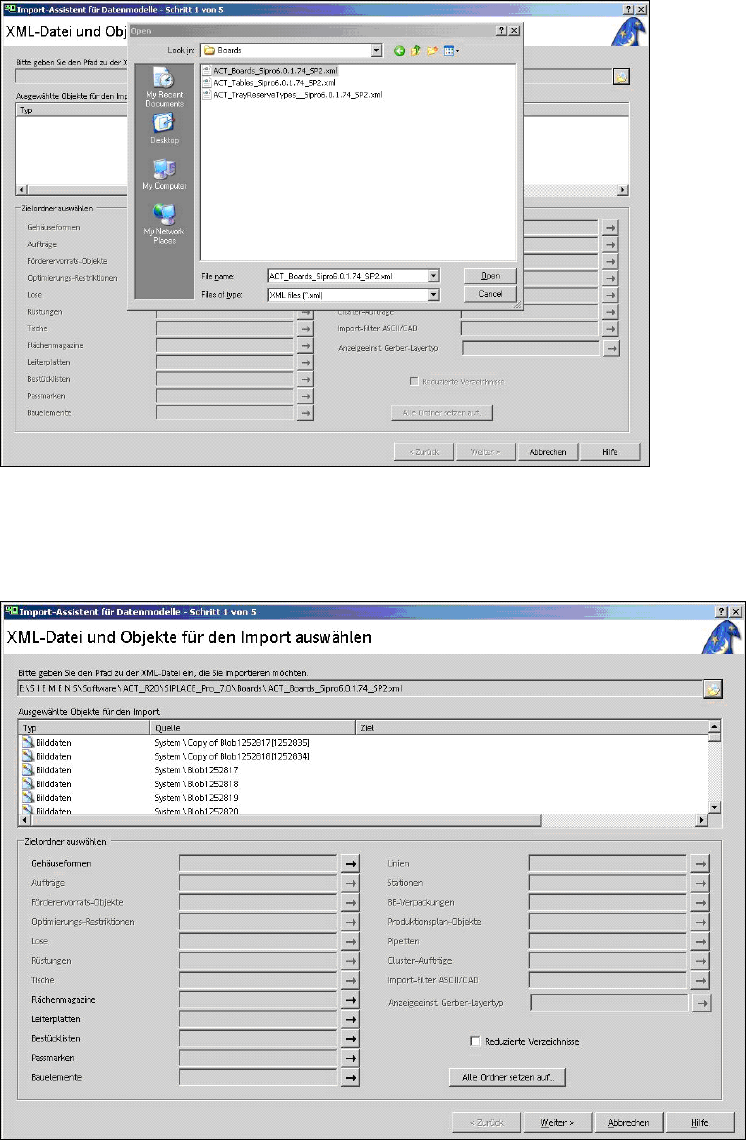

Figure 3-11: ACT board import screen
► Click Open (Figure 3-11).
► Click Weiter (Next) (Figure 3-12).
Figure 3-12: XML file import screen
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
20
NOTICE
Import of data
► Please do not change the destination folder.
► Do not select the Reduzierte Verzeichnisse (reduced folders) check box.
If ACT data has already been imported, the following screen will be displayed (Figure 3-13).
► To overwrite the objects, set the option Die folgenden Objekte sind bereits in dem/den
Zielordner(n) vorhanden. Möchten Sie die Objekte überschreiben? (The following object(s)
exist in the destination folder(s). Would you like to overwrite them?) to Ja (Yes).
► Enable the option Konflikt durch Erzeugen von neuen Bilddaten lösen (Resolve conflict by
creating new image data).
► Click Weiter (Next).

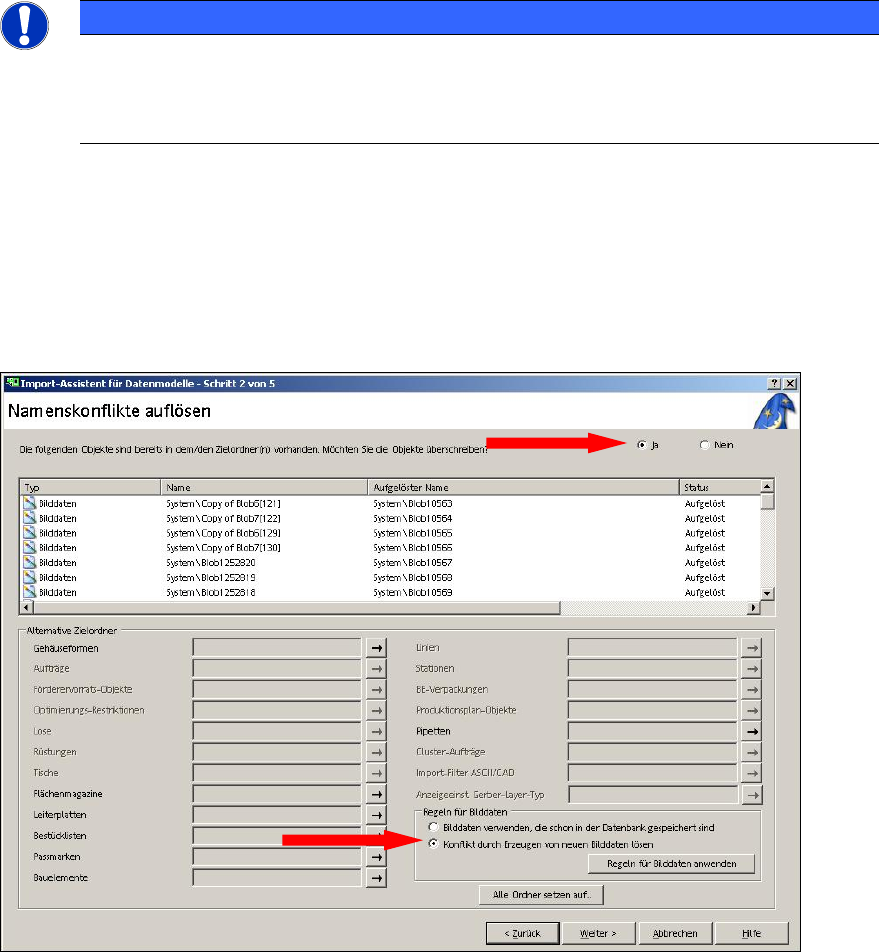

Figure 3-13: Information screen: Resolve conflict by creating new image data
