ACT - Accuracy Check Tool / User Manual 07/2014 Edition
67
4.2.6 Finishing the ACT – Returning to Production
4.2.6.1 Finishing (e.g. under Station Software 70x)

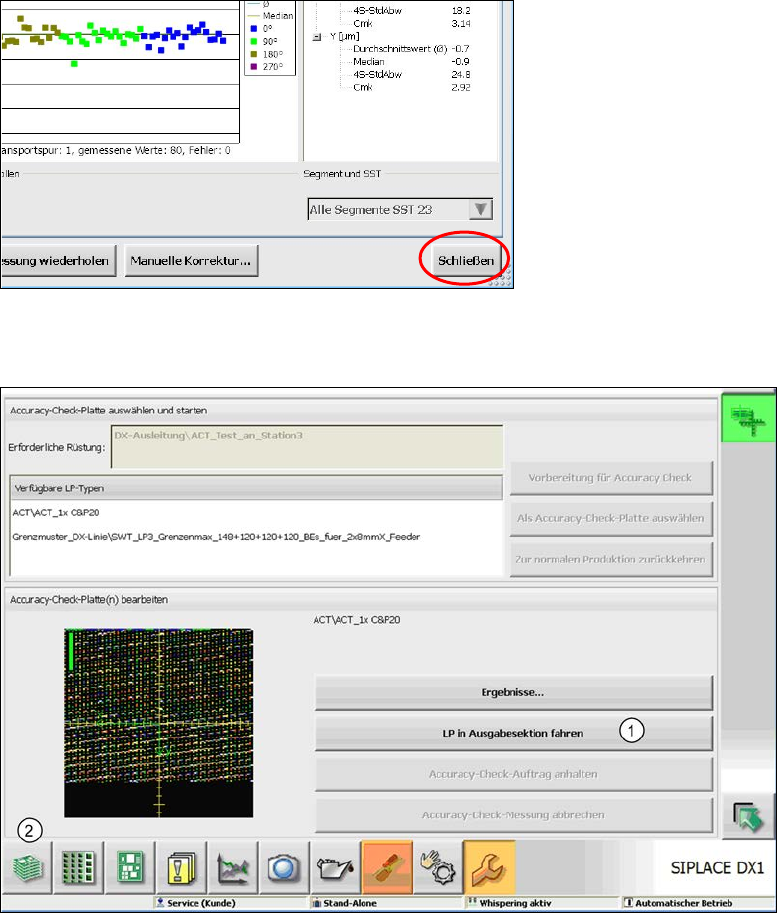

► Click the Schließen (Close) button in the measurement results view to close it.
Figure 4-47: Closing measurement results view
► Load the board into the output section (1).
Figure 4-48: Loading board into the output section
► Click on the button to the left at the bottom (2) to return to the main view of the GUI.
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
68

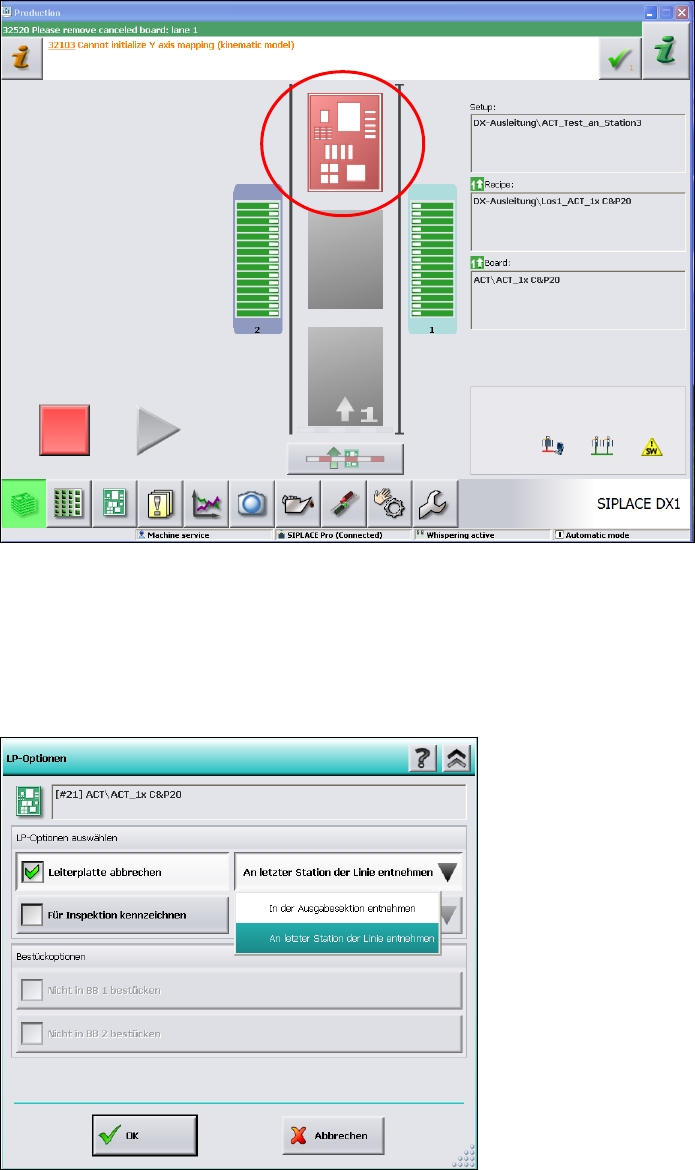

In the station main view you will now see the board highlighted in red in the output section,
from where you can remove it.
► Remove the board from the output section.
► If it is not possible to remove the board, because it is a machine of the SX- or DX-series that is
positioned in the middle of a line of several machines, then click on the red board.
Figure 4-49: State after ACT
► Select the Leiterplatte abbrechen (Cancel board) option in the next window.
► Select the sub-function An letzter Station der Linie entnehmen (Remove from last station of
the line).
► Click OK to confirm.
Figure 4-50: Removing board from the last station of the line
► Press Start.
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
69
The board is unloaded from the station.
If one or more stations are positioned behind it, for which there is no specification for components
to be placed, the board is passed through these machines and can then be removed from the last
station of the line.

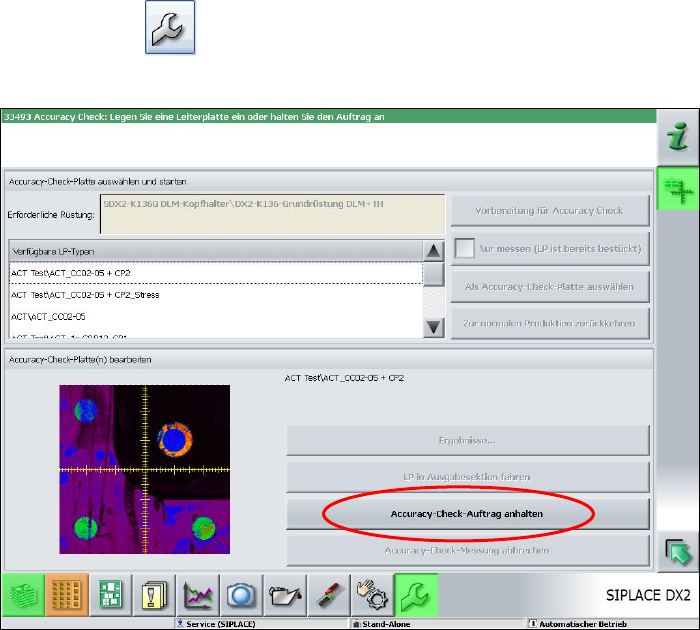

► Click on the
button, to switch to the Service view.
► Click on the Accuracy-Check-Auftrag anhalten (Stop Accuracy Check job) button.
Figure 4-51: Stop Accuracy Check job
