3.2.5 Importing Tables
The "Table import" process is analogous to that for importing boards (see previous section).
► At first, proceed as described in Figure 3-20 and Figure 3-21.
Figure 3-20: XML file on the ACT CD for import of tables to SIPLACE Pro
► Select the XML file for the tables from the ACT CD.
► Click Open.
The following screen is displayed:
Figure 3-21: Import of XML file for tables in SIPLACE Pro
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
25
NOTICE
Import of data
► Please do not change the destination folder.
► Do not select the Reduzierte Verzeichnisse (reduced folders) check box.
► Click Weiter (Next).
Figure 3-22: Import of XML files for tables on SIPLACE Pro computer
► Click Weiter (Next) again.
The following screen is displayed:
Figure 3-23: Vision data import
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
26
► Activate the Visiondaten überschreiben (Overwrite Vision data) option.
► Click Weiter (Next).
The following screen is displayed:
Figure 3-24: Import of XML files for tables in SIPLACE Pro
► Click Fertig (Finish).
The following screen is displayed:

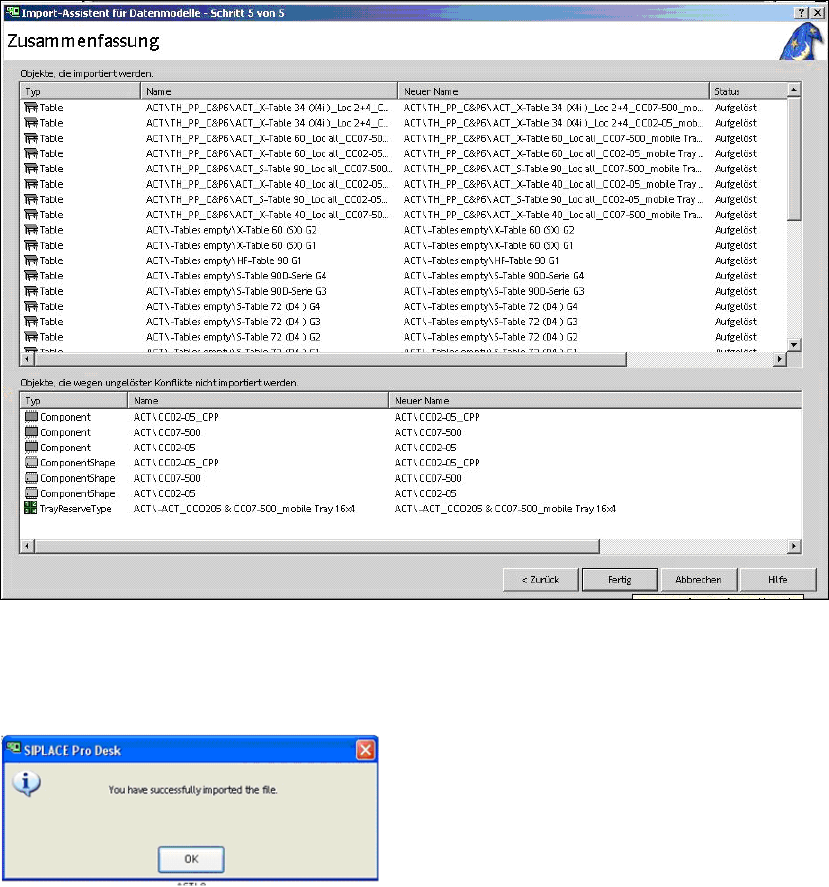

Figure 3-25: Finished import of XML files for tables in SIPLACE Pro
► Click OK.
