ACT - Accuracy Check Tool / User Manual 07/2014 Edition
9
2.2.1 Options / Spare Parts
Item description Item number Quantity
Glass components CC07-500, 55 X in
ACT waffle pack tray
*)
00343704-02
*)
1 tray magazine with 55 CC07-
500 components
*)
Glass component CC02-007 (single) 00338002-01 Glass component (single)
Glass component CC07-500 (single) 00338000-02 Optional glass component
(single)
Cerampads 2x2 mm in blister tape (for
use in dust-free rooms)
03116117-01 Reel with 2 500 components
Base ACT magazine, complete 03069924-01 Empty magazine (tray) without
cover
Cover for ACT magazine, complete 03069888-01 Cover for ACT magazine (tray)
Cover for glass plate, complete 03056782-01 Cover for glass plate
(Calibration Board)
Light plate 03056307-01 Plate on the underside of the
glass plate
Knurled screw DIN 464 M4 x 16 03031104-01 For closing the glass plate
Knurled screw DIN 464 M4 x 12 03031103-01 For closing the magazine (tray)
Table 2-3: Options / Spare parts
NOTICE
*)
Optional glass components CC07-500
The CC07-500 optional components [00343704-02] are delivered in a tray that cannot
be placed at the ACT tray holder. Thus, the components have to be transferred to an
ACT tray.
For this purpose an additional empty ACT tray may be ordered with the following item
numbers: [03069924-01] + [03069888-01] + [03031103-01].
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
10
2.2.2 Individual Components in the ACT Set
Measuring plate (glass plate) in metal frame (Figure 2-1 and Figure 2-2):
The glass components and the measuring plate are kept in a storage case.
Figure 2-1: Storage case for measuring plate Figure 2-2: Storage case for glass components
The glass components used for ACT are placed in the milled divisions in the waffle pack tray
(Figure 2-3).
Figure 2-3: Waffle pack tray for glass components
Key:
(1) Waffle pack tray
(2) Waffle pack tray carrier
(3) Glass components
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
11

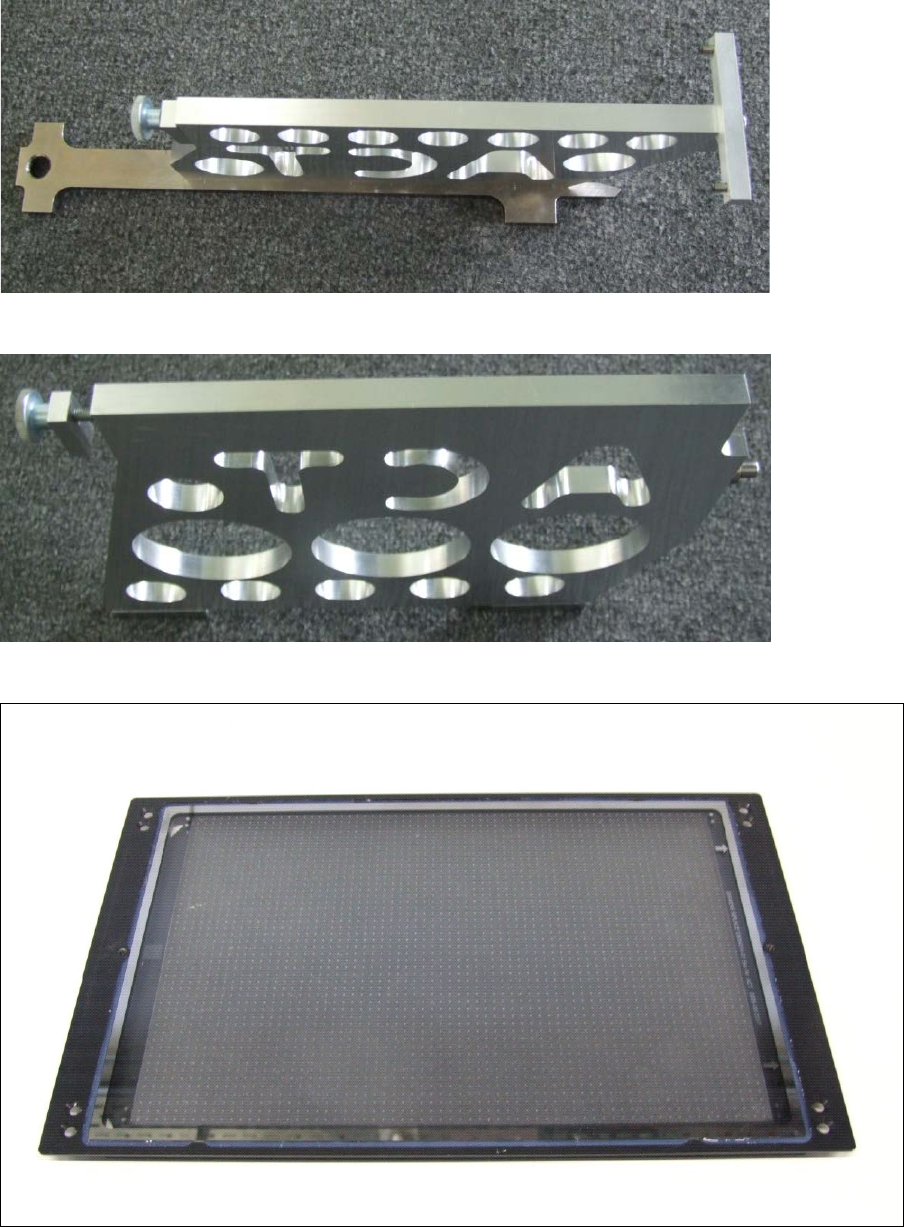

Figure 2-4: Manual waffle pack tray holder for S-table (carrier) for the glass components
Figure 2-5: Manual waffle pack tray holder for X-table (carrier) for the glass components
Figure 2-6: Measuring plate for ACT
