ACT - Accurac y Check T ool / User Manual 07/2014 Edit ion 33 4.1.2 Selecti ng the B oard ( Placemen t P rogram) ► Select a su iting placem ent program f or your head c onfigurat ion fr om the pr e - c onfigured boards (…

ACT - Accuracy Check Tool / User Manual 07/2014 Edition

The next screen displays an example of a recipe:

NOTICE

The different ACT glass component types are displayed in different colors. For a

successful download to the station, the colors of the components in the tray and on the

board have to match each other. This is visible in the recipe.

Figure 4-2: Example of a recipe with ACT board and glass components (CC02-05)

► Make sure that the number of required nozzles is available in the nozzle changer for the head

to be measured, i.e. in accordance with the number of segments of the head to be measured.

ACT - Accuracy Check Tool / User Manual 07/2014 Edition

4.1.2 Selecting the Board (Placement Program)

► Select a suiting placement program for your head configuration from the pre-configured boards

(with the aid of Table 4-1).

NOTICE

In order to access the fiducials, the ACT measuring plate has to be placed rotated by

180° in SIPLACE SX4 and DX4 machines.

Thus, if an ACT placement program is defined for a SIPLACE SX4 or DX4 machine, the orientation

(position) of the board has to be adapted to 180° in the created recipe.

Figure 4-3: Rotating board orientation by 180°on SX4, DX4

If this adaption of the board orientation is not performed, the following error message (example) is

already displayed on the SIPLACE Pro Line Control GUI during specification:

Figure 4-4: Example: Error message due to unavailable ink spots

ACT - Accuracy Check Tool / User Manual 07/2014 Edition

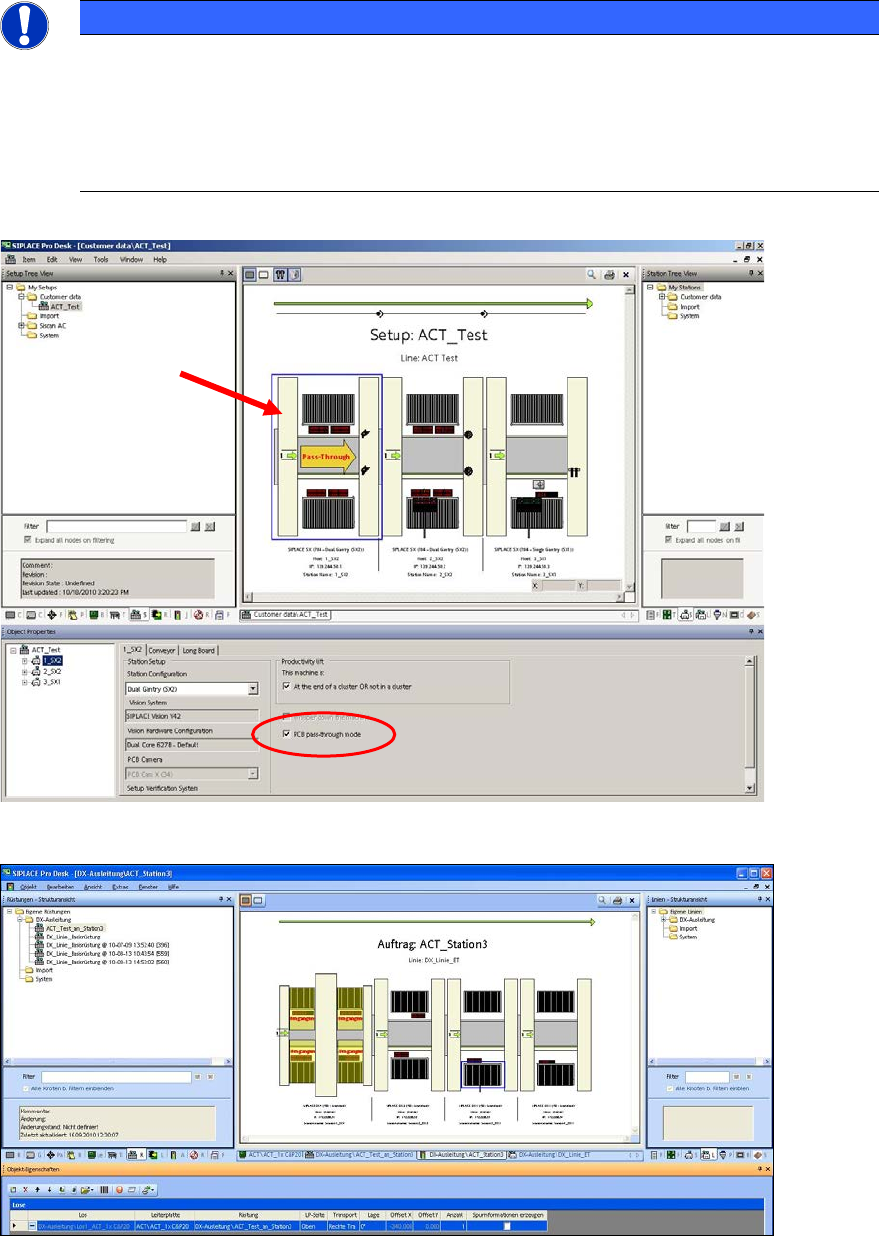

NOTICE

Due to the problems of accessing the fiducials described above, please observe:

If the ACT has to be measured on a machine of the SX-, DX-, or X-series, in front of

which one or more SIPLACE SX4- or DX4-stations are arranged in a line, the Pass-

through function has to be activated on all machines in front of the measuring machine

that require another board orientation (0°/180°). Otherwise errors will occur when trying

to access the fiducials.

The Pass-through function can be activated and deactivated in the setup of the respective station.

Figure 4-5: Pass-through function

Figure 4-6: Specification in Line Control GUI with DX4 in Pass-Through mode

► Specify a job (recipe) in SIPLACE Pro Line Control and send it to the line (download).
