ACT - Accuracy Check Tool / User Manual 07/2014 Edition
35
4.1.3 Creating the Setup – Tray Changer (TC)
► You will have to set-up the tray changer manually.
The ACT tray may be used, but has to be positioned in line with the waffle-pack tray carrier (WTC,
tray holder).
Some examples can be found in SIPLACE Pro under My tables \ ACT \ TC \.
CAUTION
In order to place the ACT tray mechanically safe, it has to be positioned at the stop on
the side without pockets. It can be fastened with two holding magnets (see the marker in
Figure 4-7).
In SIPLACE Pro under My waffle-pack trays \ ACT \ xxx_L ; xxx_R the tray has to be set-up on the
waffle-pack tray carrier depending on if the tray changer has a left or a right stop.
Overview of tray changers with left and right stops
Tray changer Where is the stop?
WPC4 Left ( ACT \ xxx_L)
WPC4 – SIPLACE D3 Left ( ACT \ xxx_L)
WPC 5 Right ( ACT \ xxx_R)
WPC 6 Right ( ACT \ xxx_R)
MTC2 Left ( ACT \ xxx_L)
Table 4-2: Tray changers with left or right stops

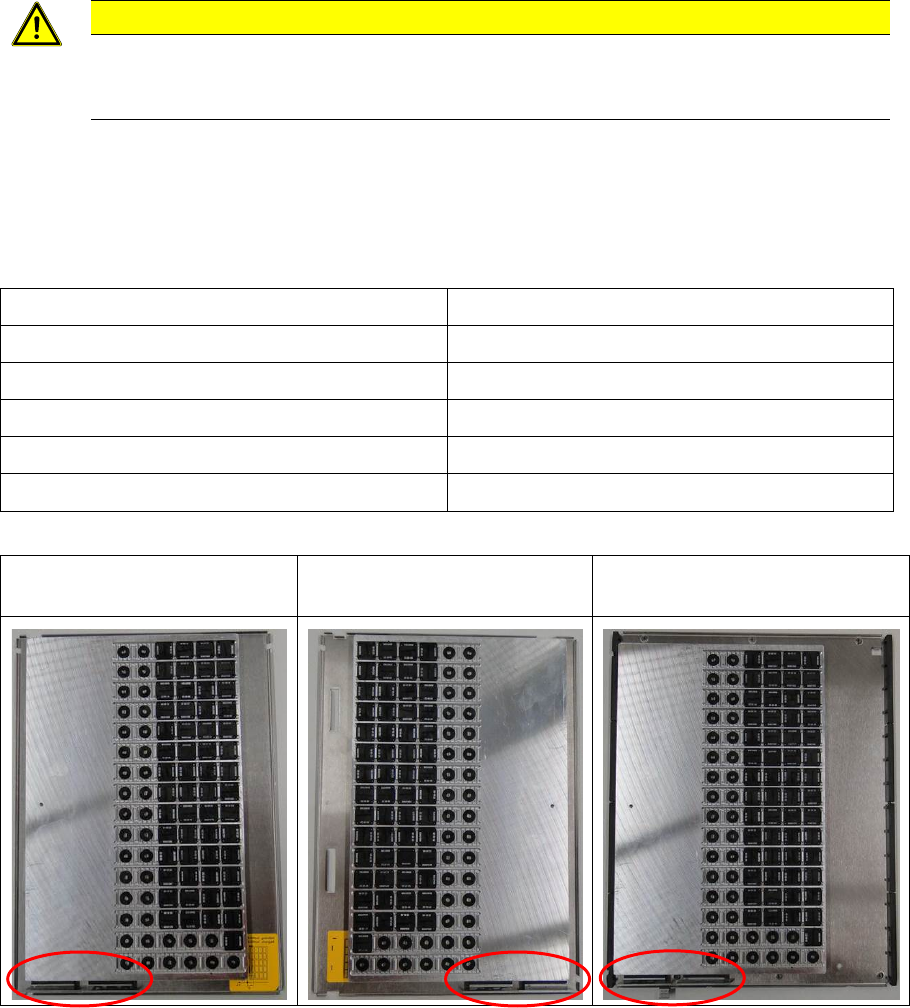

FMT WPC4
Left ( ACT \ xxx_L)
FMT WPC5 + WPC6
Right ( ACT \ xxx_R)
MTC2
Left ( ACT \ xxx_L
Figure 4-7: ACT tray on waffle-pack tray carrier
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
36
4.2 Measuring with the ACT at the Station
You have already specified the placement and measurement programs at the station as described
in section 4.1.
► Now set up the components on the station.
4.2.1 Setting Up the Components on the Machine
► Open the machine cover.
► Place the manual waffle pack tray carrier or the feeder onto the specified tracks of the relevant
location.

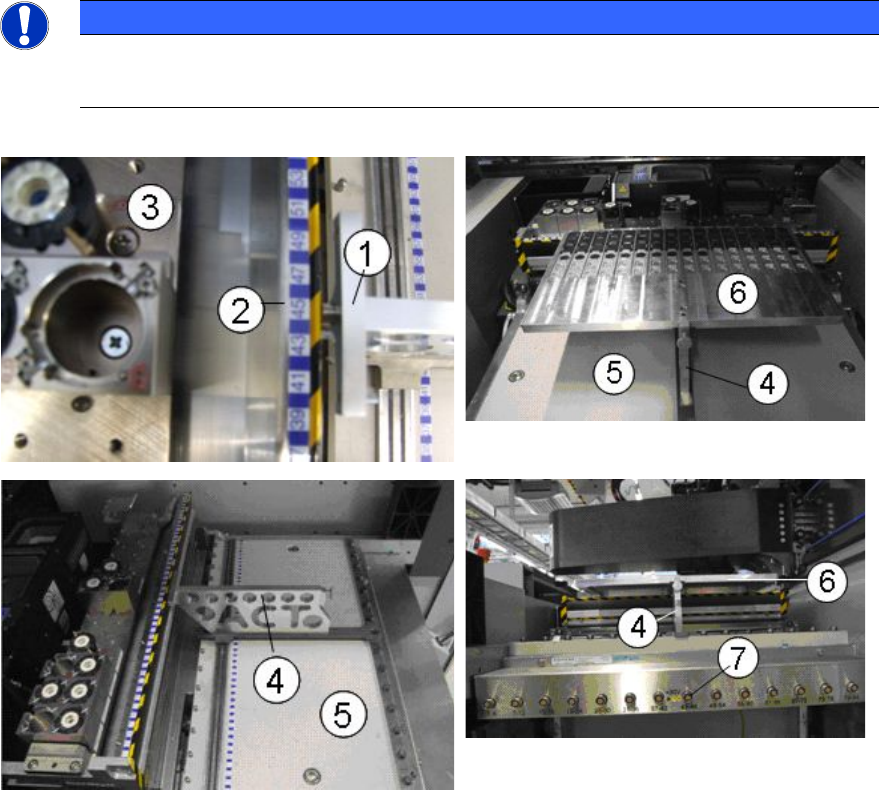

Example of the position of manual waffle pack tray carrier with glass components for a
SIPLACE D3
NOTICE
The waffle pack tray carrier for the S-table needs to be at track 45 (Figure 4-8).
Therefore, the waffle pack tray occupies track 13 to 77 (Figure 4-9).
Figure 4-8: Position (track 45) of waffle pack tray carrier on S-table
ACT - Accuracy Check Tool / User Manual 07/2014 Edition
37
Key:
(1) Waffle pack tray carrier (5) S-table
(2) Track 45 (6) Waffle pack tray
(3) Nozzle changer (7) Track 45
(4) S waffle pack tray carrier

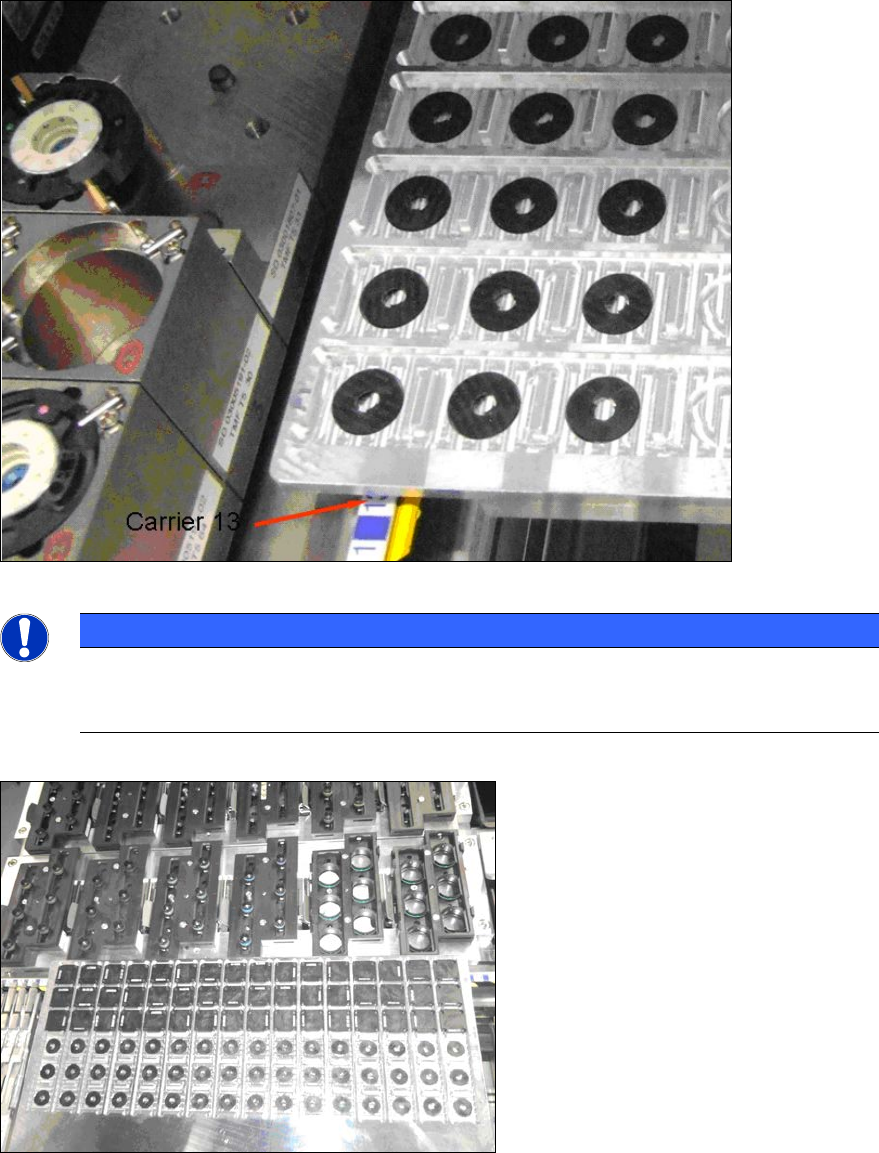

Figure 4-9: rack 13 - position of waffle pack tray on S-table
NOTICE
On X-series machines with C&P6 head and S-table the tray strikes directly against the 6-
nozzle magazines. The magazines cannot be opened without damaging them. In this
case, first change the nozzles and then place the tray on the S tray holder.
Figure 4-10: Waffle-pack tray on S-table blocks nozzle magazine
