1-46
AIVEMT-ID
Cleaning Method
(1)
Store the nozzle in the nozzle stocker (housing) through window
navigations and take out the nozzle stocker (housing).
Notice
Do not take out a nozzle from the head by hand. Otherwise, the
nozzle does not conform to the nozzle data.
Reference
Refer to "6. "Nozzle Change" Window" in "Chapter 3 (Vol. 2)" for the
procedure of nozzle storage.
(2)
Blow air to remove dust and dirt.
At this time, use clean, dry, and non-lubricated air.
Clean the tapered area of the nozzle with a lens cleaning cloth.
When the tapered area is extremely dirty, brush the nozzle end 20 to 30 times
with a toothbrush and then clean the nozzle in the water with an ultrasonic
cleaner.
When a recognition error occurs frequently, rub the back of the collar
approximately 20 times with a toothbrush.
Notice
(a) Do not blow air to the nozzle being attached to the head.
Doing otherwise may cause the filter to pop out of the head. The
filter may damage the head.
(b) Do not use anything other than water for the cleaning.
Note
Demagnetize the vacuum nozzle after the detachment.
Keep the head section free of any magnetic field.
As an example,
•
Do not bring a magnet close to the head section.
•
Do not bring any demagnetizer to the head section.
0606-009
4.1 Cleaning of Vacuum Nozzles
1-47
AIVEMT-ID
Ultrasonic Cleaning Method
•
Set the nozzles in a nozzle cleaning jig as one shown in the figure below
and dip the jig low in the ultrasonic cleaner with water. Keep it in the jig
for approximately 15 minutes for the cleaning.
Note
The nozzle cleaning jig must be prepared on the customer side.
•
After washing with the ultrasonic cleaner, blow air to the nozzles.
When the nozzles are not dry enough, wipe them with a rag.
Notice
When a nozzle is set in the jig, pay attention to the orientation of the
nozzle.
(159)
12
12
12
12
12
12
12
12
12
12
12
13.5
15
10
15
15
(65)
10
15
13.5
10
Material: Duracon (POM)
Unit: mm

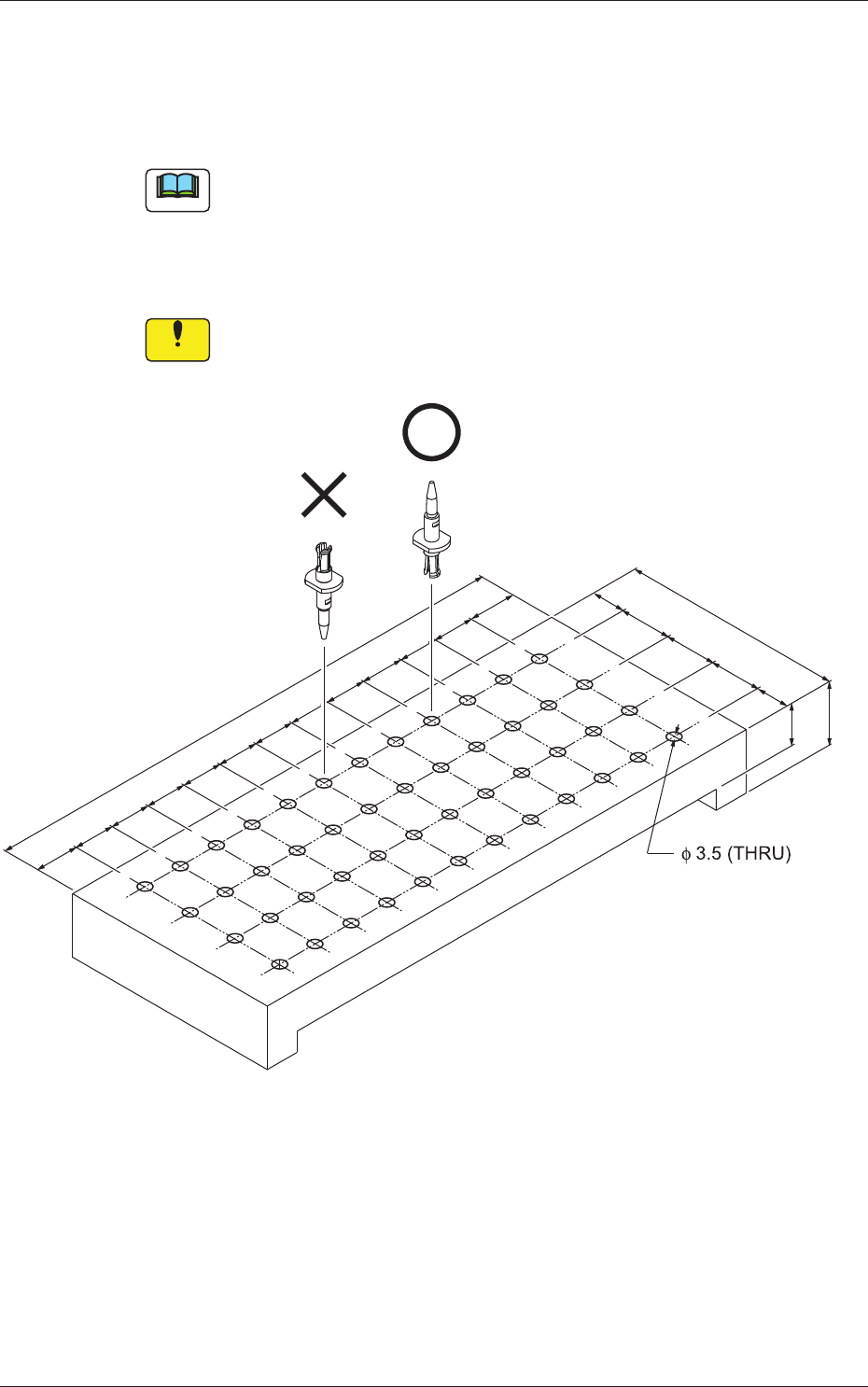

Fig. 4A44 Nozzle Cleaning Jig (Example)
0606-009
4.1 Cleaning of Vacuum Nozzles
1-48
AIVEMT-ID
4.2 Lubrication for Ball Screw Splines
(1) Zero the conveyors and the heads.
(2) Move the backup base upward.
(3) Turn off the power to the machine.
(4) Open the cover.
(5) Take out the backup plate.
Notice
If the backup plate collides with a conveyor, etc., the machine will
break down.
Be sure to handle the backup plate carefully.
Backup Plate
Fig. 4A44-1
(6) Apply grease to the ball screw splines of the backup base through
the holes on the backup base with a syringe.
Note
Use No. 19 (brown) nozzle.
Inject grease into
these holes.
Inject grease into
these holes.
Fig. 4A45
0606-009
4.2 Lubrication for Ball Screw Splines
