4-17
AIVEMT-ID
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 5 8 ** 001 The pick-up position has deviated greatly.
0 5 8 ** 002 The pick-up position has deviated greatly in X direction.
0 5 8
** 003 The pick-up position has deviated greatly in Y direction.
0 5 8 ** 004 The pick angular skew is big.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5
8 ** 101 Component outward length X is incorrect.
0
5 8
** 102 Component outward length X is shorter than the tolerance.
0 5 8
** 103 Component outward length X is longer than the tolerance.
0 5 8
** 104 Component outward length Y is incorrect.
0 5 8 ** 105 Component outward length Y is shorter than the tolerance.
0 5 8 ** 106 Component outward length Y is longer than the tolerance.
0 5 8 ** 107 Component outward length X or Y is incorrect.
0 5 8 ** 108 Component outward length X or Y is shorter than the tolerance.
0 5 8 ** 109 Component outward length X or Y is longer than the tolerance.
(Cause 1) Wrong parameters are set in the "X [mm]" and "Y [mm]" text
boxes of "Mold size" and the "Mold size tolerance X [mm]"
and "Mold size tolerance Y [mm]" text boxes for the selected
components.
X
Y
Fig. 4D1
(Remedy 1) Check the selected components and the parameters set in the
"X [mm]" and "Y [mm]" text boxes of "Mold size" and the "Mold
size tolerance X [mm]" and "Mold size tolerance Y [mm]" text
boxes for the selected components in the component library
data.
Correct wrong parameters if they are set in the component
library data.
0606-009
3.4 Component Recognition Errors
4-18
AIVEMT-ID
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 5 8 ** 201 The number of leads is small.
0 5 8
** 202 The number of leads is large.
0 5 8
** 203 The lead width is shorter than the tolerance.
0 5 8
** 204 The lead width is longer than the tolerance.
0 5 8
** 205 Gap of the width direction of a lead is larger than a permissible value.
0 5 8
** 206 Gap of the length direction of a lead is larger than a permissible value.
0 5 8
** 207 The detected lead length direction positions differ greatly.
(Cause) The results of the lead inspection differ from the parameters
specified in the component library data for the selected
components.
(Remedy) Check the leads of the selected component and the component
library data.
Correct wrong parameters if they are set in the component
library data.
0 5 8
** 301 Electrode(ball) length is incorrect.
0 5 8
** 302 Electrode(ball) position is larger than a permissible value.
0 5 8
** 401 A shape positional gap is larger than a permissible value.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5 9 ** 101 Error in Polarity Detection.
0
5 9
** 201 The component is reversed.
0 5 9
** 301 There is the electrode (lead) that must not exist
0 5 9
** 302 There is the electrode (ball) that must not exist
0 5 9
** 303 There is the shape that must not exist.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5
A ** 101 The pick-up position has deviated greatly in X direction.
0
5 A
** 102 The pick-up position has deviated greatly in Y direction.
0 5 A ** 103 The pick angular skew is big.
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
0 5
E ** 001 Others
0
5 E
** 002 Others
0 5 E
** 003 Others
0 5 E
** 004 Others
0 5 E
** 005 Others
0 5 E
** 006 Others
0 5 E
** 007 Others
0 5 E
** 008 Others
(Cause) Component Recognition Error
(Remedy) Contact our service personnel for details.
1 5
* * * * * * Others
(Cause)
Self-Diagnostics Error Message.
(Remedy) Contact our service personnel for details.
0606-009
3.4 Component Recognition Errors
4-19
AIVEMT-ID

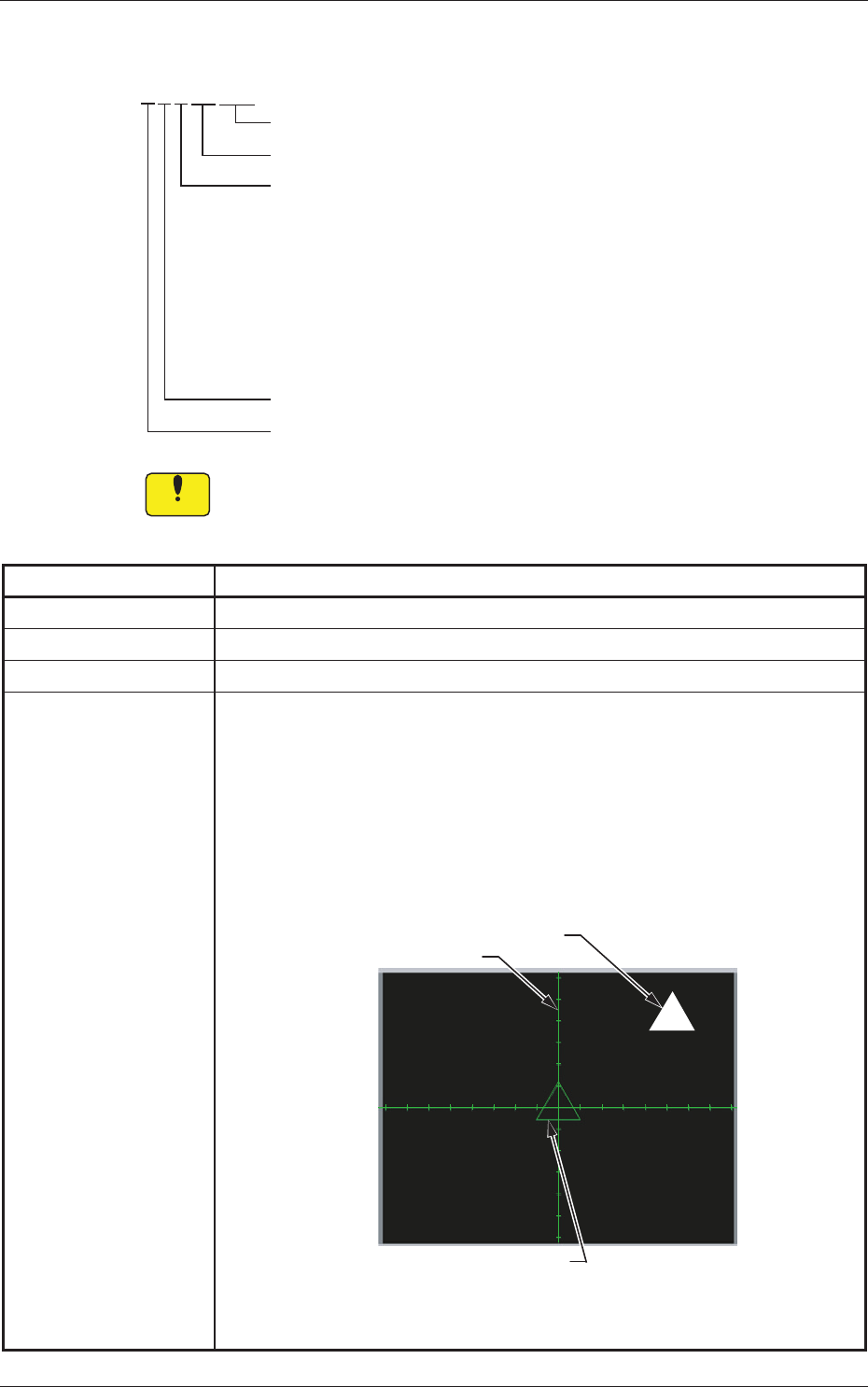

3.5 PEC Recognition Errors
Z
A
B CC DDD
Detailed Classification: Detailed Classification
Small Classification: Small Classification
Middle Classification
0: PEC Recognition (Mark Missing)
1: PEC Recognition (Coarse Recognition Error)
2: PEC Recognition (Detailed Recognition Error)
3: PEC Recognition (Shape Error)
8: PEC Recognition (Inspection Error)
E: PEC Recognition (Other Errors)
Large Classification (6)
Classification Criteria
Notice
When an error ID other than the described ones is issued, contact
our service personnel for some advice.
Table 4D8
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 6 0 ** 001 Specified mark not found in recognizable range.
0 6 1 ** 001 Specified mark not found in recognizable range.
0 6 2 ** 001 Specified mark not found in recognizable range.
(Cause) The fiducial mark and the fiducial mark coordinates X and Y or
the mark data are not suitable.
(Remedy)
Follow the steps below to reset the machine to the normal
condition.
(1) When the [RETURN] button is pressed, the "Manual Alignment
Operation Guide" window appears.
(2) When the [Mnl Align] button is pressed, the following recognition
window appears.
Template of Fiducial Mark
Actual Fiducial Mark
Crosshair
Fig. 4D2 Sample Display of Recognition Window
(Continued to the next page.)
0606-009
3.5 PEC Recognition Errors
