1-55 AIVEMT -ID (9) Put the flat ring replacement jig on the roller on the oscillating side (outside of the machine). Push only the flat ring downward by hand and insert it into the groove of the roller . Flat Ring Fig. 4A…

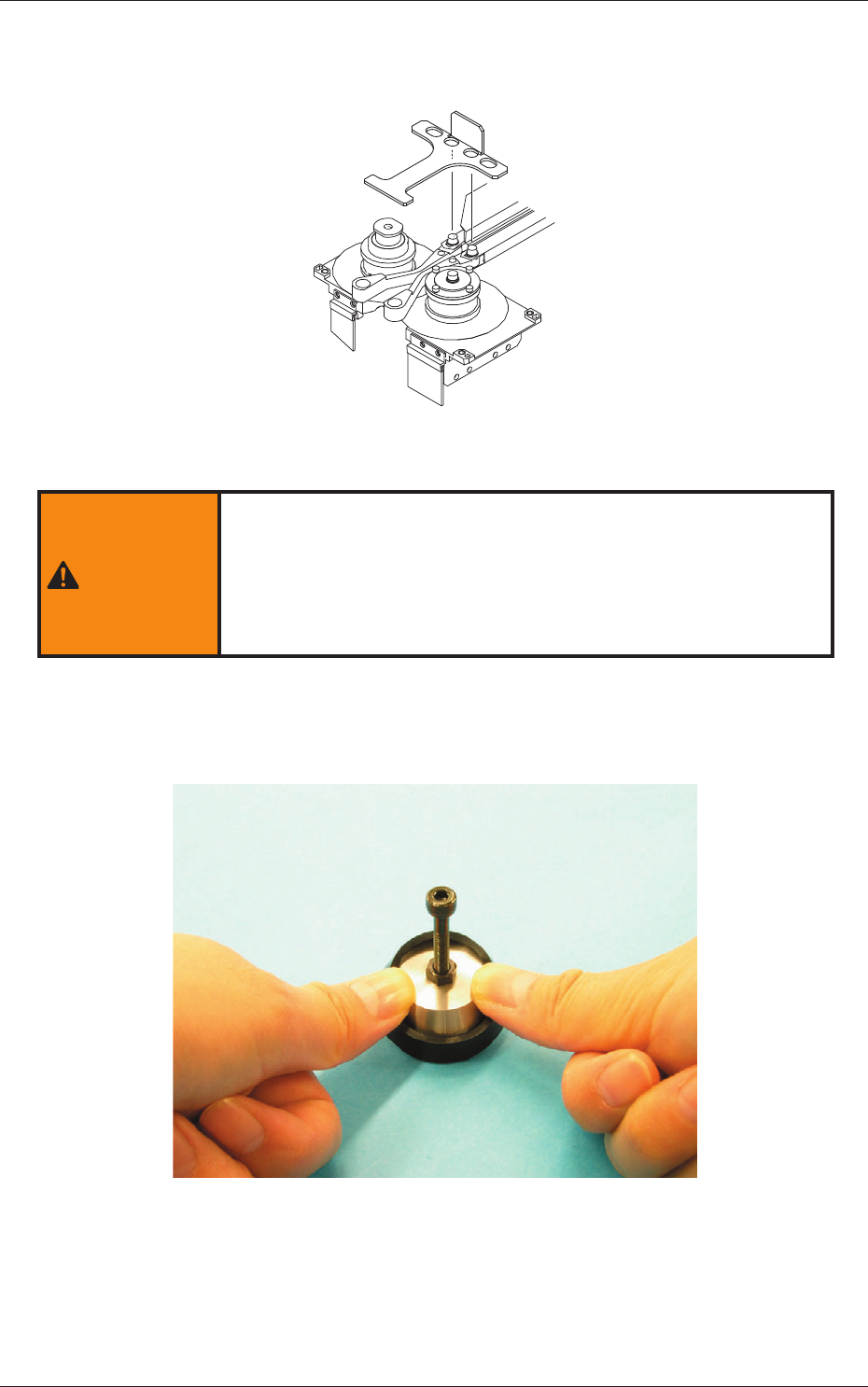

1-54
AIVEMT-ID
(6) Use the inner holes of the cut unit fixing jig with the tape clamp being
closed and attach the jig with the bent portion being directed upward.
Fig. 4A52
WARNING
Pay close attention to the cutter blade during the maintenance
work.
•
Lack of attention will result in a hand injury, etc.
•
Be sure to attach the fixing jig to the cut unit during the
maintenance work for safety purposes.
(7)
Cut the used flat ring with a cutter on market and detach it.
(8) Attach the flat ring to the flat ring replacement jig.
Fig. 4A53
0606-009
4.4 Procedure of Flat Ring Replacement

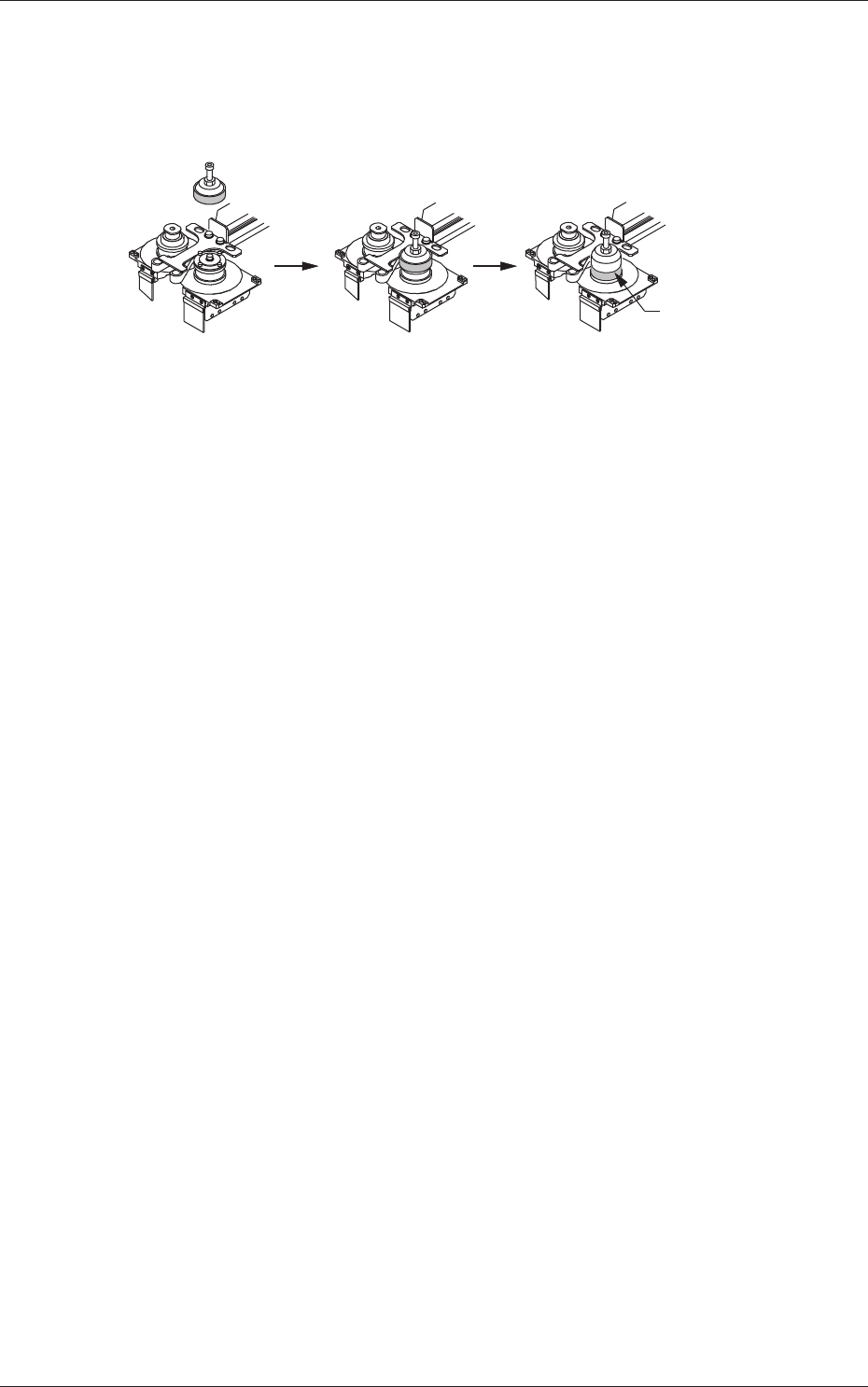

1-55
AIVEMT-ID
(9) Put the flat ring replacement jig on the roller on the oscillating side
(outside of the machine).
Push only the flat ring downward by hand and insert it into the groove
of the roller.
Flat Ring
Fig. 4A54
(10) Pay attention to the cutter blade and detach the flat ring replacement
jig.
(11) Attach the tape guide and the transparent cover.
0606-009
4.4 Procedure of Flat Ring Replacement

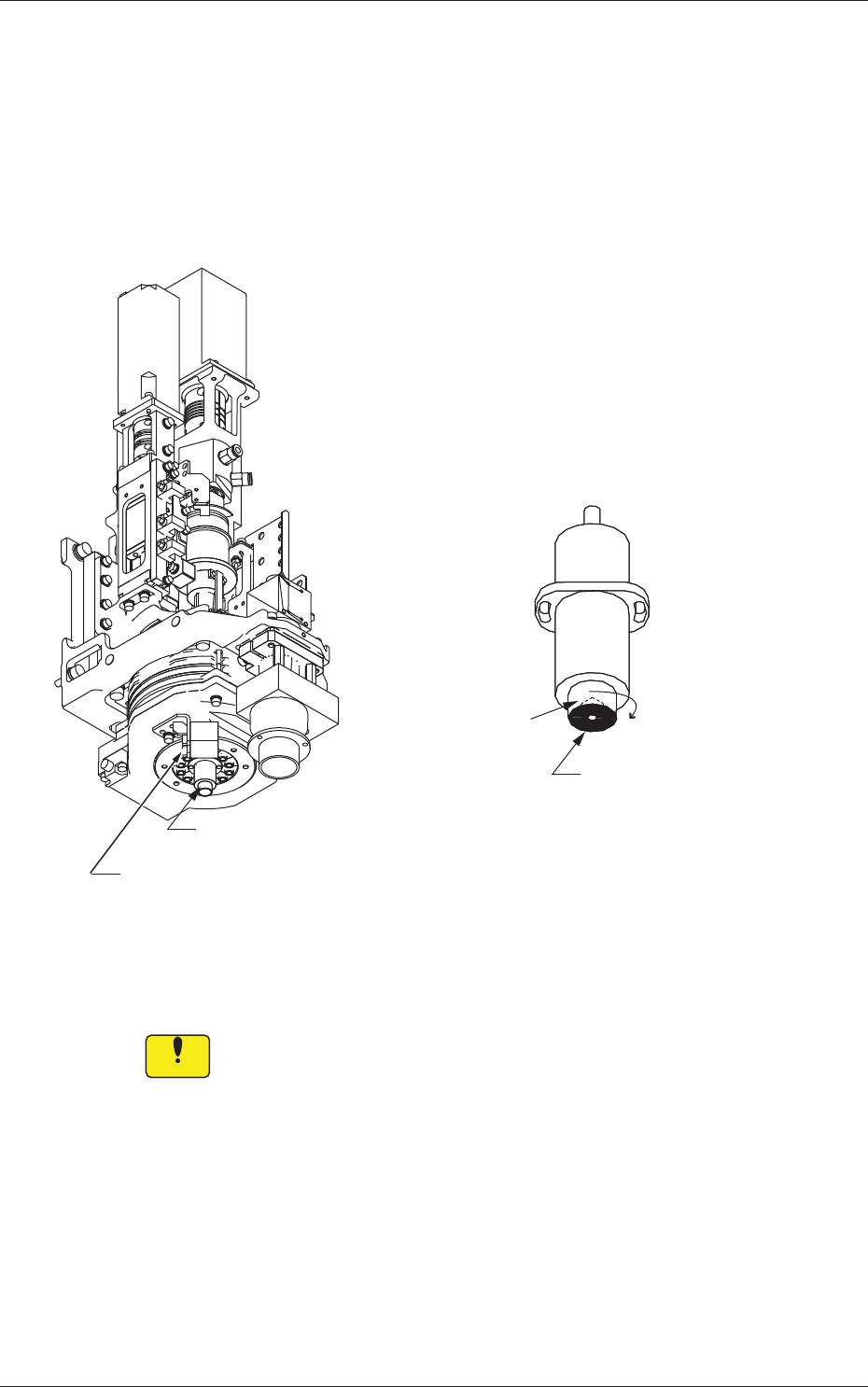

1-56
AIVEMT-ID
4.5 Cleaning of Linear Measure Sensor
Periodically perform cleaning of the linear measure sensor to maintain
reliable and stable measurement of component thickness.
•
Clean the sensor every day.
•
Change cleaning frequency according to varying frequency of use and
environmental conditions.
Conic Cap
Linear Measure Sensor
(Light Emitter)
Linear Measure Sensor (Light Receiver)
Surface of Conic
Reflector
Horizontal Direction
Linear Measure Sensor (Light Emitter)
Fig. 4A55
•
While you are cleaning the light emitter
, the surface of the conic refl
ector
must be cleaned softly and horizontally
.
Notice
Cleaning it vertically may damage the conic cap.
When the conic cap is damaged, the component recognition might
not be made correctly.
0606-009
4.5 Cleaning of Linear Measure Sensor
