2-10 AIVEMT -ID 0606-009 3. Machine Information 3.1 "Machine Information" Window This window shows various kinds of information while the machine is running. Note The machine does not stop running when this win…
2-9
AIVEMT-ID
Warning Codes Display Field A (Scope of Warning Messages)
Display Field B (Details of Warning Messages)
013001 Load Power is not OFF.
Press [Emergency STOP] button to Load Power off.
013101 Feeder set Err
The feeder suppressor is tilting. (Rear)
013102
Feeder set Err
There is a Disengaged Latch. (Rear)
013103 Feeder set Err
The feeder suppressor is tilting. (Front)
013104 Feeder set Err
There is a Disengaged Latch. (Front)
013201 The number
Y of matrices (Y-axis operation limit)
The component of the specified number of matrices cannot be photoed with a PEC
recognition camera.
013202
The number Y of matrices (Y-axis operation limit)
It is only the parts of one sequence which can be photoed with a PEC recog
camera. The pick-up last pos teaching (pitch automatic teaching) cannot be
performed.
013203
The number Y of matrices (Y-axis operation limit)
This component cannot be photoed with a PEC recognition camera. The first time
and the last extraction pos teaching (automatic teaching) cannot be performed.
013301 Press low Err
The vacuum pressure low was detected.
013302
Press low Err
The blow pressure low was detected.
013401 Linear Measure
Please install since the line sensor control version 2.14.
(It takes 30 seconds of about three minutes.)
013501 Confirm the last placement position
Please set the placement settings to the placement. (head1)
013502 Confirm the last placement position
Please set the placement settings to the placement. (head2)
013503 Confirm the last placement position
Please set the placement settings to the placement. (head3)
013504 Confirm the last placement position
Please set the placement settings to the placement. (head4)
013701 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 1 (rear)
013702 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 2 (rear)
013703 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 1 (front)
013704 Incorrectly seated Nozstkr
Incorrectly seated Nozstkr 2 (front)
0606-009
2.2 List of Warning Messages
2-10
AIVEMT-ID
0606-009
3. Machine Information

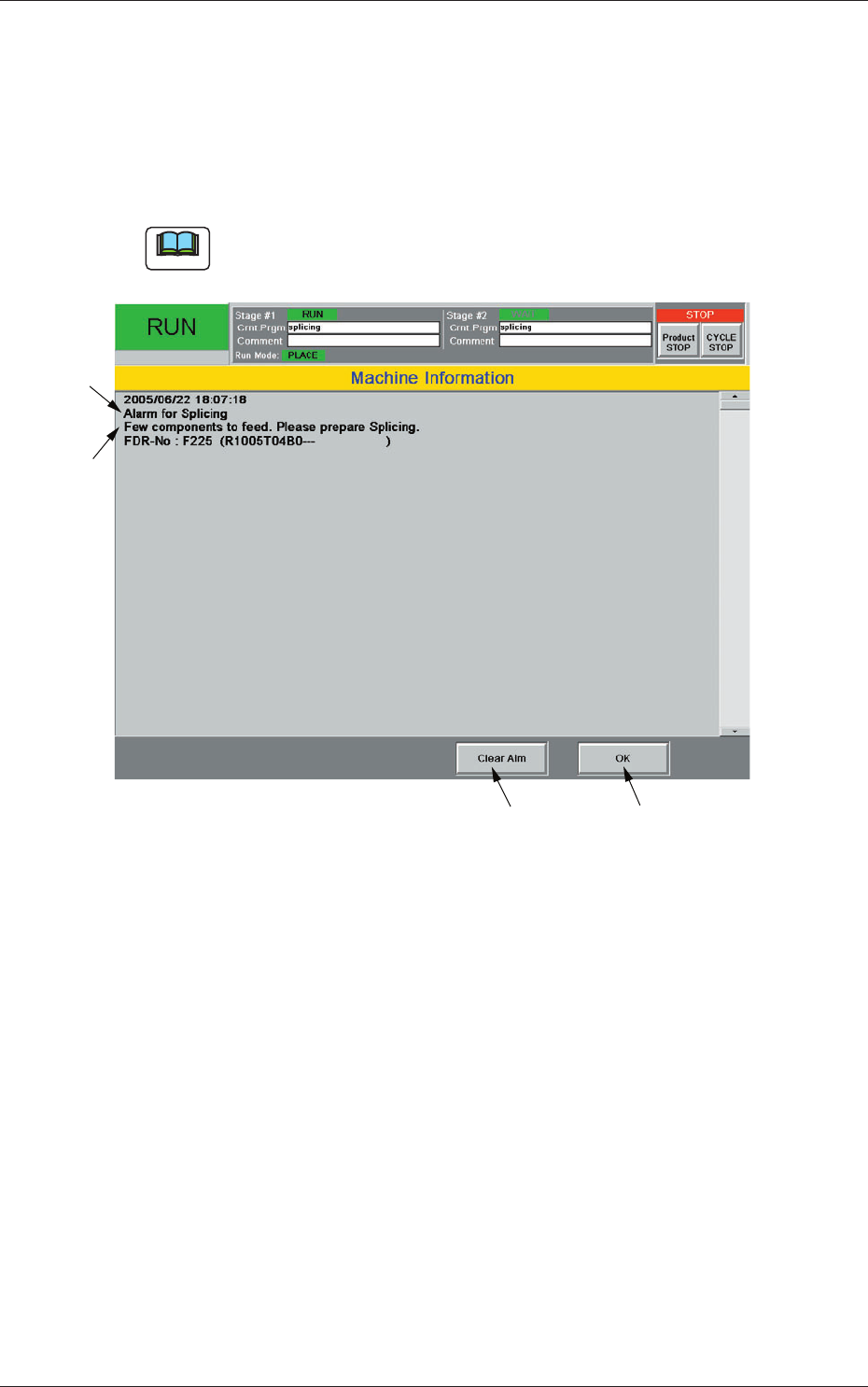

3.1 "Machine Information" Window
This window shows various kinds of information while the machine is
running.
Note
The machine does not stop running when this window becomes active.
[2]
[3]
[1]
[4]
Fig. 4B3
[1] Display Field A
Displayed is the outline of the machine information.
[2]
Display Field B
Displayed is the detailed machine information.
[3]
[OK] Button
When pressed, this button closes the "Machine Information" window.
[4]
[Clear Alarm] Button
When pressed, this button cancels an alarm (sound) only.
3. Machine Information
2-11
AIVEMT-ID
3.2 List of Machine Information
Table 4B4
Machine Information
Codes
Display Field A (Scope of Machine Information)
Display Field B (Details of Machine Information)
800301 Warning: Decreasing of Comp. Hdlg. Rate (For Noz.)
Nozzle message rate
800302 Warning: Decreasing of Comp. Hdlg. Rate (For Noz.)
The rate of nozzle adsorption fell. A cycle stop is carried out.
800401 W
arning: Decreasing of Comp. Hdlg. Rate (For Fdr.)
Feeder message rate
800402 Warning: Decreasing of Comp. Hdlg. Rate (For Fdr
.)
The rate of feeder adsorption fell. A cycle stop is carried out.
800601
Alternated Feeder
Comp. Missing (sensor)
800602 Alternated Feeder
Comp. Vertical (sensor)
800603 Alternated Feeder
Comp. Missing (recog.)
800604 Alternated Feeder
Comp. Recog. Error
800605 Alternated Feeder
Shortage of component
800606
Alternated Feeder
Start recovery mode.
800607 Alternated Feeder
Comp.
Thickness (sensor)
800608 Alternated Feeder
Comp. Pickup Diff. (recog.)
800609 Alternated Feeder
Comp. Reverse (recog.)
80060b Alternated Feeder
Feeder Reload Stop (Splicing)
0606-009
3.2 List of Machine Information
