1-28 AIVEMT -ID 3.3.6 Cutter Section T ransparent Cover (Motor Side) T ransparent Cover (Origin Side) Cutter Boxes (Both Sides) Every W eek Cleaning (1) Detach the bank feeder change cart. (2) Move the cutter unit with t…
1-27
AIVEMT-ID
Scrap Box
Every Day Cleaning
Required Time: 1 minute
Draw out the scrap box and remove the
empty tape.
Fig. 4A18
Upper Surface of Suppressor
Every Day Cleaning
Required Time: 2 minutes
Remove dirt and dust with a vacuum
cleaner and wipe the surface clean with a
rag.
Fig. 4A18-1
0606-009
3.3 Inspection, Cleaning, and Lubrication Spots
1-28
AIVEMT-ID
3.3.6 Cutter Section
Transparent Cover
(Motor Side)
Transparent Cover
(Origin Side)
Cutter Boxes (Both Sides)
Every Week Cleaning
(1) Detach the bank feeder change cart.
(2) Move the cutter unit with the [Move Maint. Pos.]
button in the "CUTTER ADJ" window
(the window that opens after the [CUT ADJ]
b
utton on the "UNIT ADJ" submenu bar is pressed).
(3) Turn off the power supply
.
(4) Open the cover.
(5) Detach the transparent covers located on both
sides (origin and motor sides) of the cutter section
and remove dirt and dust with a vacuum cleaner.
Use a vacuum cleaner with a narrow air opening
in the nozzle.
Note
Narrow Air Opening in Nozzle End
(Recommended)
Required Time: 2 minutes
Fig. 4A19-1
0606-009
3.3 Inspection, Cleaning, and Lubrication Spots
1-29
AIVEMT-ID

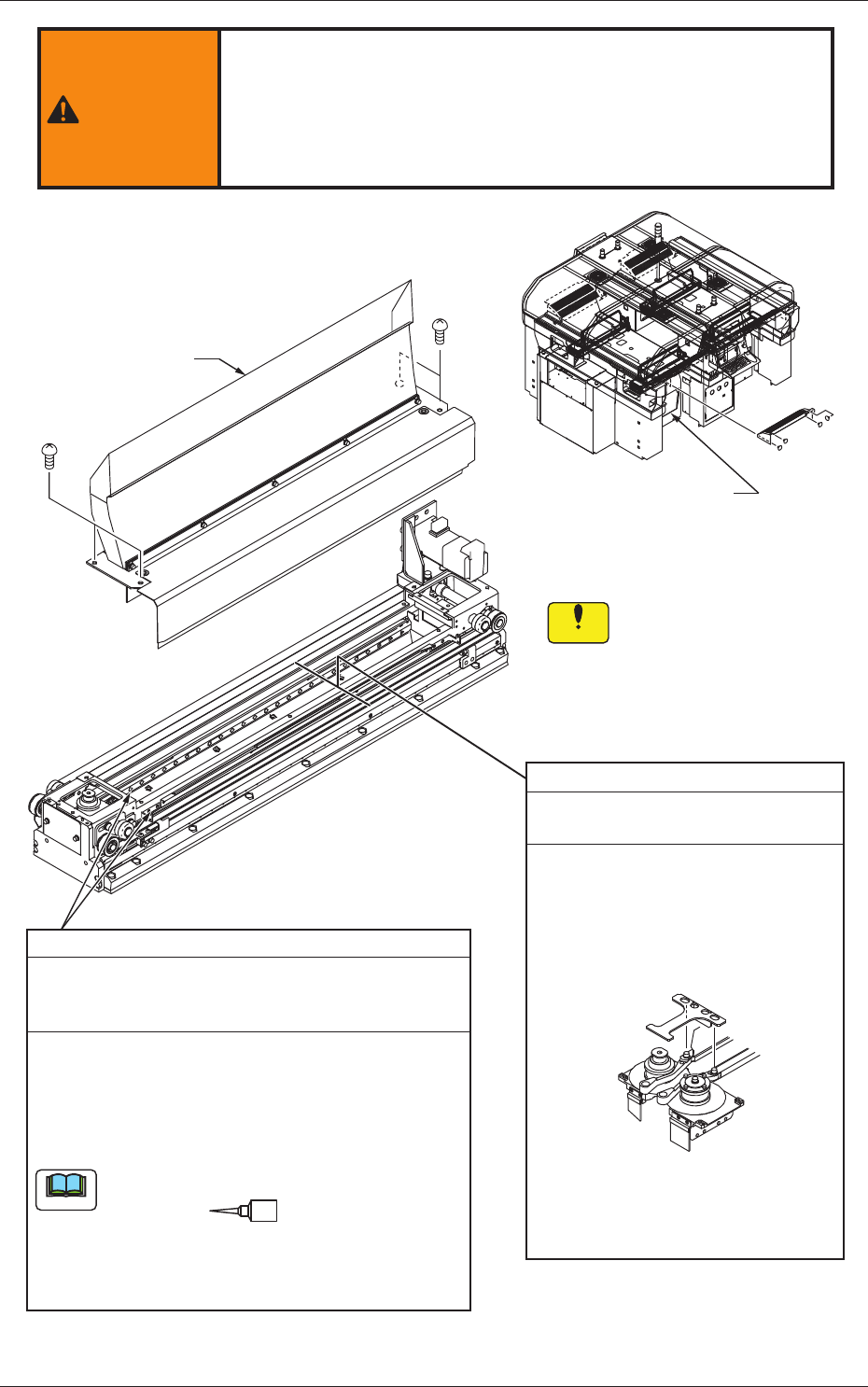

WARNING
Pay close attention to the cutter blade during the maintenance
work.
•
Lack of attention will result in a hand injury, etc.
•
Be sure to attach the fixing jig to the cut unit during the
maintenance work for safety purposes.
Linear Guides
Every 3 Months Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 10 minutes
(1) Remove four screws and detach the tape guide.
(2) Wipe off the old grease with a rag and apply a
small amount of new grease to the grooves
(upper and lower ones) of the linear guides with a
syringe.
Use No. 18 (green) nozzle.
As for the low
er groove, put your hand from the cut
waste chute (cover) and apply the grease to the groove.
Tape Guide
Cut Waste Chute (Cover)
When the tape guide is
detached or attached,
be sure to keep the Y-axis
linear scale free of nicks
and scratches.
Notice
Cutter Box
Every 3 Months Cleaning
Required Time: 5 minutes
(1) Remove four screws and detach
the tape guide.
(2) Use the outer hole of the cut unit
fixing jig and attach the jig with
the bent portion being directed
downward.
No. 18
Note
Attachment Position of
Cut Unit Fixing Jig
(3) Clean the area around the linear
guides with a vacuum cleaner.
Fig. 4A19-2
0606-009
3.3 Inspection, Cleaning, and Lubrication Spots
