3.8 Various Teach Errors
Z
A
B CC DDD
Detailed Classification: Detailed Classification
Small Classification: Small Classification
Middle Classification: Middle Classification
0: Character Recognition (Nozzle Missing)
E: Character Recognition (Other Errors)
Large Classification (A)
Classification Criteria
Notice
When an error ID other than the described ones is issued, contact
our service personnel for some advice.

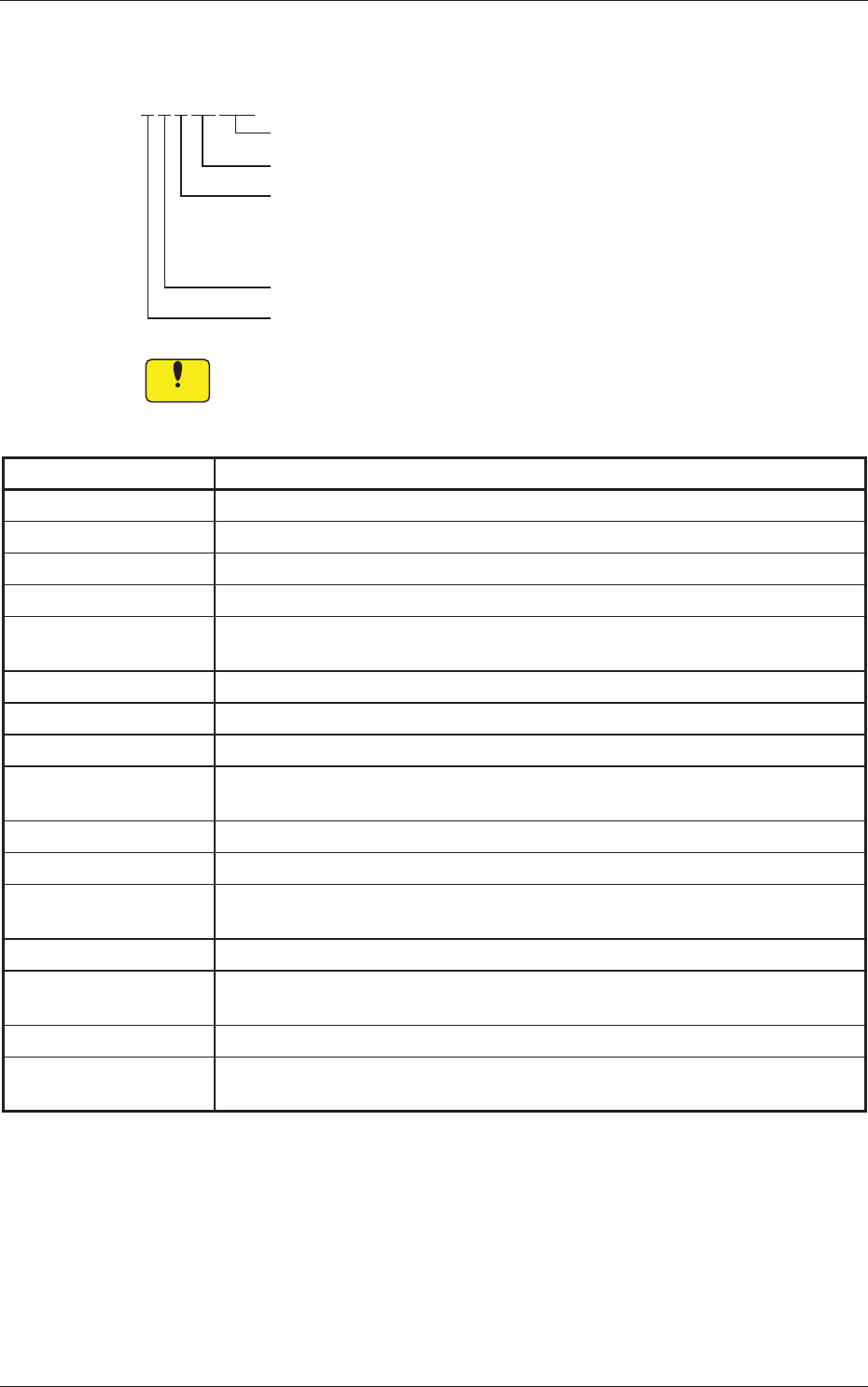

Table 4D11
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 A 0 ** 001 Lighting teaching Error
0 A 0
** 002 Lighting teaching Error
0 A 0
** 003 Lighting teaching Error
0 A 0
** 004 Lighting teaching Error
(Cause) Lighting Teaching Error
(Remedy) Contact our service personnel for details.
0
A 0 ** 010 The front reverse side of the Jig is opposite.
0 A 0
** 011
0 A 0 ** 012
(Cause) Improper Jig Attachment
(Remedy) Check how the jig is attached. If necessary, set it up correctly.
0 A 0 ** 013 Lighting teaching Error
0 A 0
** 020 Lighting teaching Error
(Cause) Lighting Teaching Error
(Remedy) Contact our service personnel for details.
0
A E ** 001 Others
(Cause) Self-Diagnostics Error Message
(Remedy) Contact our service personnel for details.
1 A
* * * * * * Others
(Cause) Self-Diagnostics Error Message
(Remedy) Contact our service personnel for details.
