4-20
AIVEMT-ID
Recognition Error ID Description of Recognition Error, Cause, and Remedy

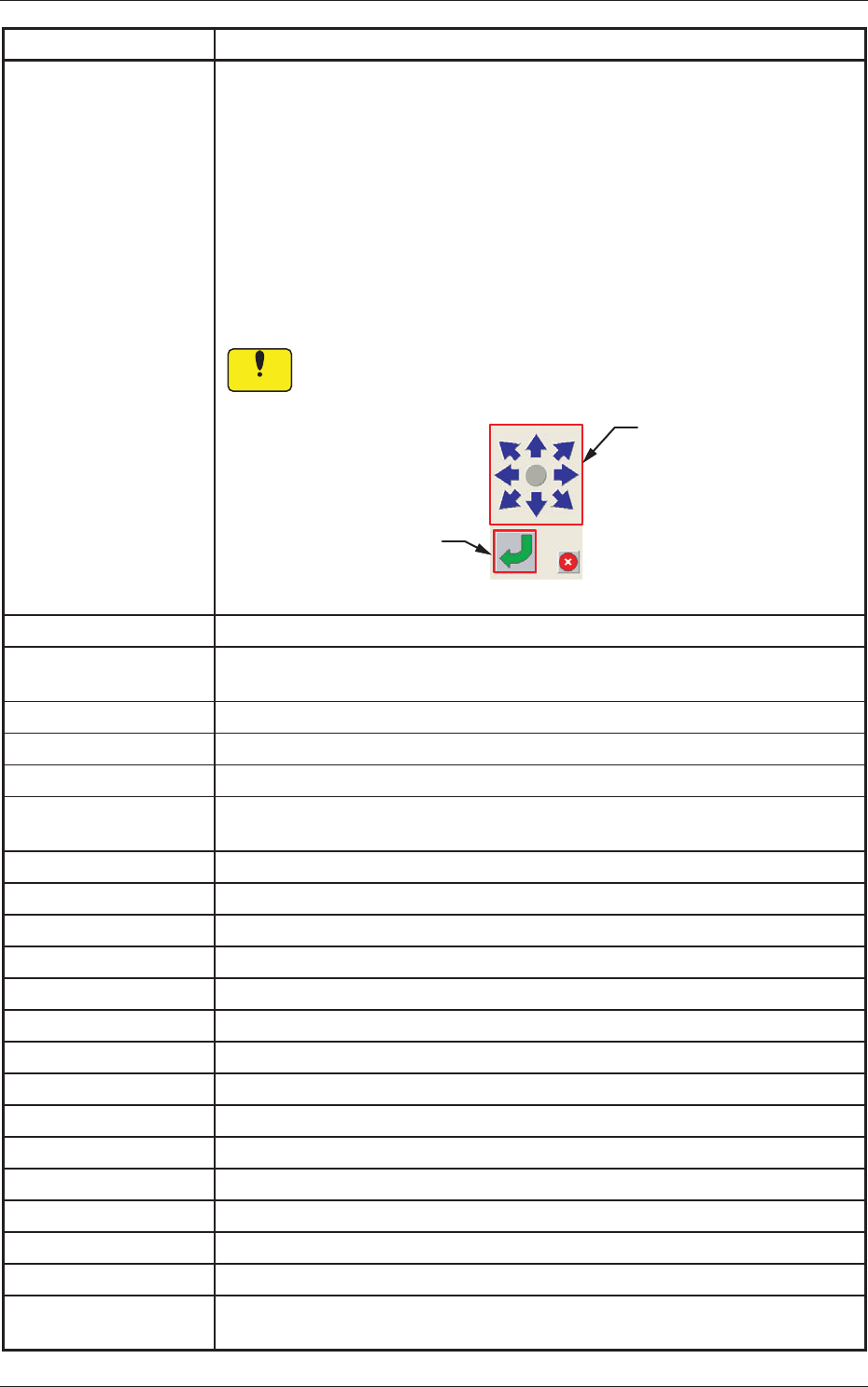

(3) Manipulate the image movement buttons on the window until the actual
fiducial mark comes over to the fiducial mark template located at the
center of the crosshair.
Enlarge the view for accurate alignment operation. Otherwise,
components may not placed accurately.
(4) After the actual fiducial mark has come over to the fiducial mark
template, press the position definition button. The "AUTO OPN."
window resumes.
(5) When the [START] button on the operation panel is pressed, the
automatic operation restarts.
Notice
When the [x] button is pressed to exit from the recognition window,
the "Manual Alignment Operation Guide" window resumes.
Position Definition
Button
Image Movement
Buttons
Fig. 4D3 Operation Buttons
0 6 2 * * 1 * * Edge not detected.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0 6
3 ** 101 Specified mark is not circle.
0 6 3 ** 102 Specified mark is not square.
0 6 3 ** 201 Edge not detected.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0 6
8 ** 101 Specified mark not found in recognizable range.
0 6 8 ** 102 Specified mark not found in recognizable range.
0 6 8 ** 201 Extensive error in similitude of mark size
0 6 8
** 202 Extensive error in similitude of mark size
0 6 8
** 301 Extensive error in similitude of mark shape
0 6 8
** 302 Extensive error in similitude of mark shape
0 6 8
** 401 Extensive error in similitude of mark shape
0 6 8
** 402 Extensive error in similitude of mark shape
0 6 8
** 501 Specified mark not found in recognizable range.
0 6 8 ** 502 Specified mark not found in recognizable range.
0 6 8 ** 601 Specified mark not found in recognizable range.
0 6 8 ** 602 Specified mark not found in recognizable range.
0 6 8 ** 603 Specified mark not found in recognizable range.
0 6 8 ** 604 Specified mark not found in recognizable range.
(Cause) PCB Recognition Error
(Remedy) Contact our service personnel for details.
0606-009
3.5 PEC Recognition Errors
4-21
AIVEMT-ID
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 6 E ** 001 Others
(Cause) Self-Diagnostics Error Message
(Remedy) Contact our service personnel for details.
1 6
* * * * * * Others
(Cause) Self-Diagnostics Error Message
(Remedy) Contact our service personnel for details.
0606-009
3.5 PEC Recognition Errors
4-22
AIVEMT-ID
3.6 Nozzle Recognition Errors
Z
A
B CC DDD
Detailed Classification: Detailed Classification
Small Classification: Small Classification
Middle Classification
0: Nozzle Recognition (Nozzle Missing)
1: Nozzle Recognition (Coarse Recognition Error)
2: Nozzle Recognition (Coarse Recognition Error)
3: Nozzle Recognition (Detailed Recognition Error)
8: Nozzle Recognition (Inspection Error)
9: Nozzle Recognition (Judgement Error)
E: Nozzle Recognition (Other Errors)
Large Classification (7)
Classification Criteria
Notice
When an error ID other than the described ones is issued, contact
our service personnel for some advice.
Table 4D9
Recognition Error ID Description of Recognition Error, Cause, and Remedy
0 7 0 ** 001 Nozzle not detected.
0 7 1
** 001 Nozzle not detected.
0 7 2
** 001 Nozzle not detected.
0 7 2
** 002 Nozzle not detected.
0 7 3
** 101 Edge not detected.
0 7 3
** 102 Nozzle not detected.
(Cause 1) Abnormal Nozzle Attachment
(Cause 2) The nozzle type data is abnormal.
(Remedy 1) Attach the correct nozzle.
(Remedy 2)
Check the nozzle type data. If necessary, correct it.
0 7 8 ** 101 Nozzle size has exceeded the allowable range.
0 7 8
** 102 Nozzle size has exceeded the allowable range.
0 7 8
** 201 Check error
0 7 8
** 202 Check error
(Cause 1) The attached nozzle is different from the nozzle specified in the
placement head/nozzle data.
(Cause 2) The nozzle type data is abnormal.
(Remedy 1)
Attach the correct nozzle.
(Remedy 2) Check the nozzle type data. If necessary, correct it.
0606-009
3.6 Nozzle Recognition Errors
