4 Replacing spare parts at the conveyor Service Manual ASM ProcessLens Dual-lane 09/2018 35 4 Replacing spare parts at the conveyor DANGER Observe User Manual ► Please observe the safety instructions in the user manual…
3 Replacing spare parts
3.4 Scale bars
34 Service Manual ASM ProcessLens Dual-lane 09/2018
4 Replacing spare parts at the conveyor
Service Manual ASM ProcessLens Dual-lane 09/2018 35
4 Replacing spare parts at the conveyor
DANGER
Observe User Manual
► Please observe the safety instructions in the user manual for all work!
CAUTION
Do not loosen or remove the wrong screws
The following applies to all work performed on the conveyor:
► Make sure that you do not loosen or remove any other screws except those ones ex-
plicitly mentioned. Loosening other screws could lead to irreparable misalignment or
damage to the conveyor.
CAUTION
Moving the conveyor rails
► The fixed conveyor rail is fastened by screws, the moveable conveyor rail can be
moved by carefully pulling on the toothed belt of the width adjustment.
► After moving the conveyor rail manually, you may need to teach the conveyor rail posi-
tion during the conveyor reference run and recalibrate the light barriers.
4 Replacing spare parts at the conveyor
4.1 Conveyor - overview
36 Service Manual ASM ProcessLens Dual-lane 09/2018
4.1 Conveyor - overview

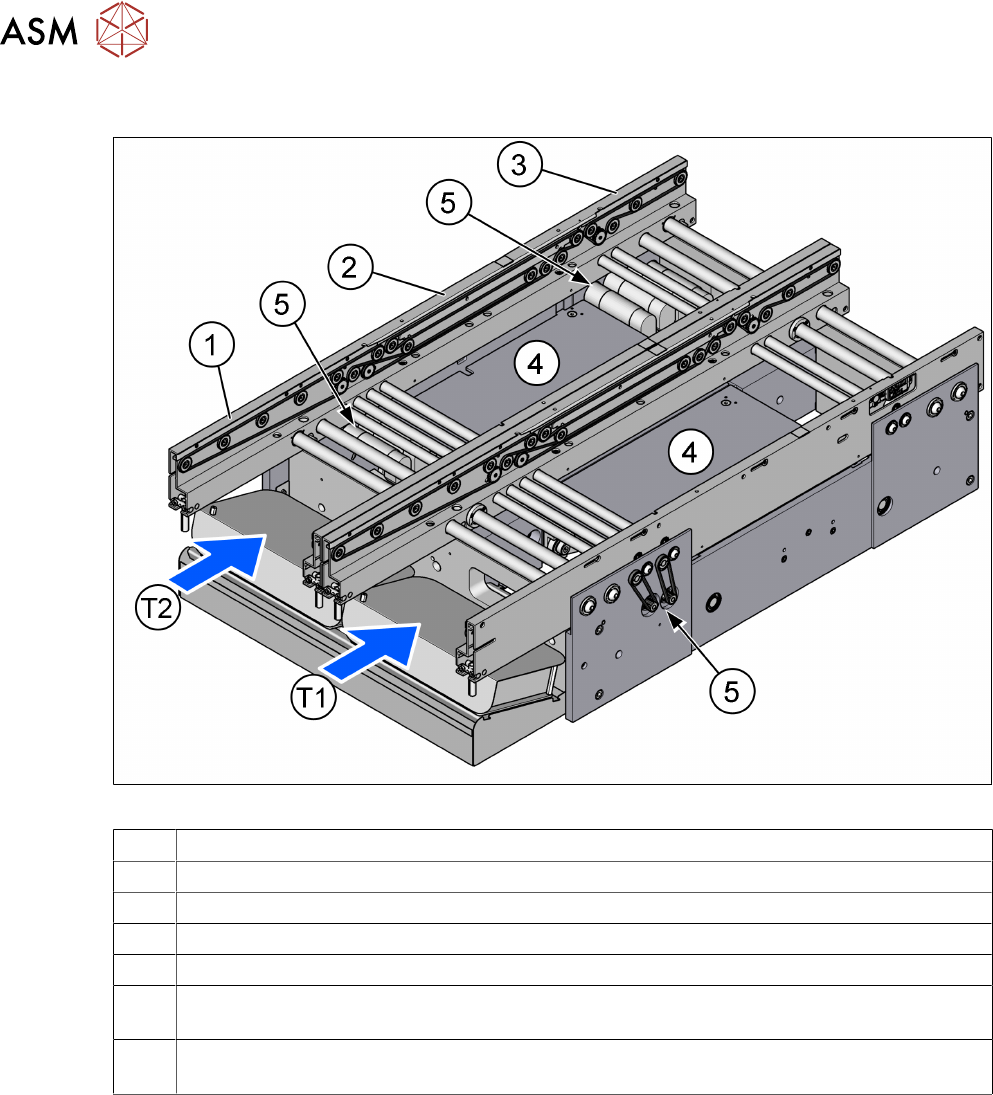

Fig.5: Conveyor overview - part 1
T1 Conveyer Lane 1
T2 Conveyer Track 2
1 Input area
2 Placement area
3 Output area
4 Lifting tables
4.2 "Lifting table" [}38]
5 Conveyor drives
4.3 "Conveyor drive" [}47]
