4 Replacing spare parts at the conveyor 4.3 Conveyor drive 52 Service Manual ASM ProcessLens Dual-lane 09/2018 Overview Fig.25: Overview of toothed belts (conveyor drives) 1 Toothed belt input conveyor track 1 2 Toothed…
4 Replacing spare parts at the conveyor
4.3 Conveyor drive
Service Manual ASM ProcessLens Dual-lane 09/2018 51
4.3.2 Replacing the toothed belt (conveyor drive)
Parts

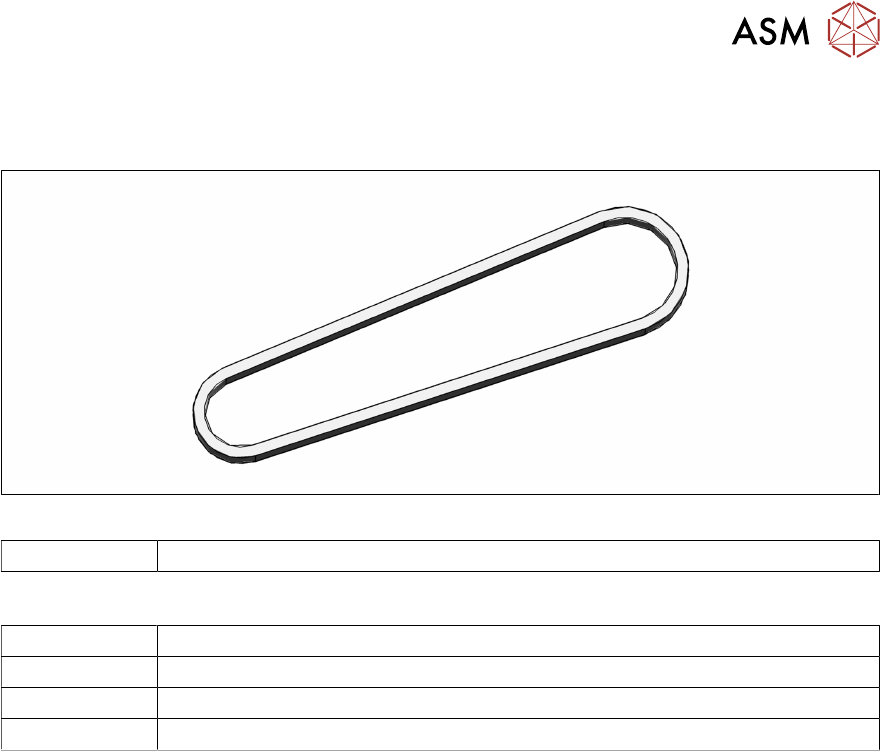

Fig.24: Toothed belt (conveyor drive)
03121566‑xx Toothed belt Synchroflex 5+-0.1 AT3/201
Equipment and tools
00326015‑xx Belt tension measuring device
00353832-xx Allen key set
Side cutter
Cable ties
4 Replacing spare parts at the conveyor
4.3 Conveyor drive
52 Service Manual ASM ProcessLens Dual-lane 09/2018
Overview

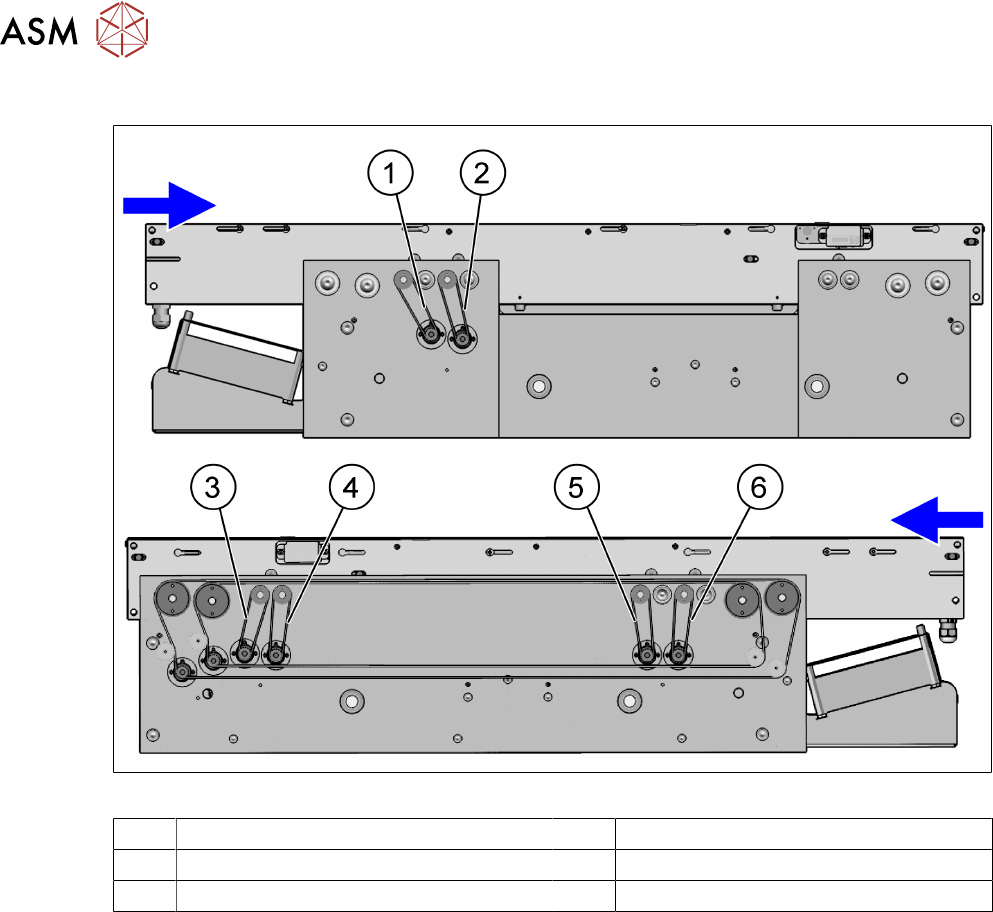

Fig.25: Overview of toothed belts (conveyor drives)
1 Toothed belt input conveyor track 1 2 Toothed belt placement area track 1
3 Toothed belt output area track 2 4 Toothed belt output area track 1
5 Toothed belt placement area track 2 6 Toothed belt input area track 2
See also: Replacing the conveyor drive
Removal
► Use the software or manually move the conveyor rail into a position which allows you best
access.
– To move the conveyor rail manually, pull the toothed belt of the width adjustment unit.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
► The fastening screws of the conveyor drives are on the outer side of the conveyor.
4 Replacing spare parts at the conveyor
4.3 Conveyor drive
Service Manual ASM ProcessLens Dual-lane 09/2018 53
Fig.26: Fastening screws
► Loosen the three screws (1) fastening the con-
veyor drive.
► Carefully unthread the toothed belt from the mo-
tor.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Make sure that the toothed belt is not folded or otherwise damaged.
► Make sure that the toothed belt is accurately positioned in the guidance on the motor
shaft.
► Carefully thread in the toothed belt. To do this, carefully lift the toothed belt a little (e.g.
with the shorter end of an Allen key).
► Tighten the three screws fastening the conveyor drive hand-tight. At the same time,
adjust the belt tension to 210+/‑20Hz.
4.3.3 Replacing the cables (belt motor and width adjustment motor)
Parts
03113852-xx Sensor cable belt motor output track 1
03113854‑xx Motor cable width adjustment track 1
03113870-xx Motor cable belt motor output track 1
03113871‑xx Motor cable width adjustment track 1
03088836‑xx Cable CAN bus internal conveyor controller SX2
See also 4.6.5 "Replacing laser light barrier cables and fiber optic cables" [}90]
Equipment and tools
02101037‑xx Loctite 241
00353832-xx Allen key set
00096290-xx Fork wrench set
00376503-xx Torx L-Wrench Set with Spherical head (Torx 30)
Side cutter
Cable tie
