4 Replacing spare parts at the conveyor
4.2 Lifting table
44 Service Manual ASM ProcessLens Dual-lane 09/2018
Fig.18: Motor crank and brackets
The motor crank(4) and the brackets(2) need to be
removed and refitted on the new lifting table motor.
► Remove the two screws(1) fastening the brack-
ets(2).
► Remove the screw(3) fastening the motor
crank(4).
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► The motor crank and the brackets need to be removed and refitted on the new lifting
table motor.
Use the old lifting table motor as a reference.
Observe the position and number of washers used.
► Tighten the clamping screw on the motor crank.
► Make sure that the motor connection cables do not rub against any parts.
► Place the lifting table plate onto the guidance pins. Make sure that the fastening
screws slide properly into the precut thread.
► Check the free movement of the lifting table (see Checking free movement of lifting
table).
► Calibrate the lifting table motor and then perform a reference run (see Calibrating the
Conveyor Functions).
► For more information about the conveyor control refer to section 4.7.1.1 "Conveyor
control TSP420 [03087642-xx]" [}94].
4 Replacing spare parts at the conveyor
4.2 Lifting table
Service Manual ASM ProcessLens Dual-lane 09/2018 45
4.2.4 Checking free movement of lifting table
After all work on the lifting table mechanics check the free movement of the lifting table.
► Click on this icon(1) to enter the settings menu.
► Click on Unit Function(2) to enter the settings user menu.
► Switch to the operator level Machine service or better.
► In the Conveyor aera click on Lift Home(3) to move the lifting table to the home position.
► Click on Lift up(4) and Lift Down(5) to ensure all lifting mechanical parts are not obstructed
or there are any assembly issues.
4.2.5 Calibrating the lifting table motor
After completing the work on the lifting table, this will need to be calibrated.
Procedure
► Click on this icon(1) to enter the settings menu.
► Click on Unit Function(2) to enter the settings user menu.
► Switch to operator level Machine service.
► Click on System Test(3) to enter the calibration menu.
4 Replacing spare parts at the conveyor
4.2 Lifting table
46 Service Manual ASM ProcessLens Dual-lane 09/2018

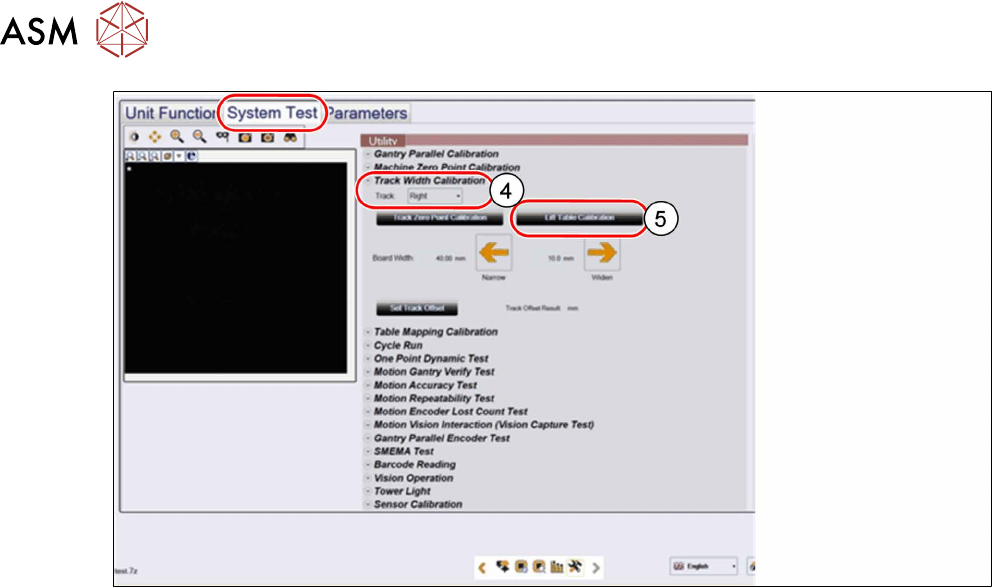

► In the Track Width Calibration area(4) select the right track.
► Click on the Lift Table Calibration button(5) to calibrate right track of the lifting table.
► Repeat the calibration the same way for the left track.
