4 Replacing spare parts at the conveyor 4.6 Fiber optic cables and laser light barriers Service Manual ASM ProcessLens Dual-lane 09/2018 89 Fig.75: Setting the fiber optic sensor - 4
4 Replacing spare parts at the conveyor
4.6 Fiber optic cables and laser light barriers
88 Service Manual ASM ProcessLens Dual-lane 09/2018
Fig.74: Setting the fiber optic sensor - 3
4 Replacing spare parts at the conveyor
4.6 Fiber optic cables and laser light barriers
Service Manual ASM ProcessLens Dual-lane 09/2018 89

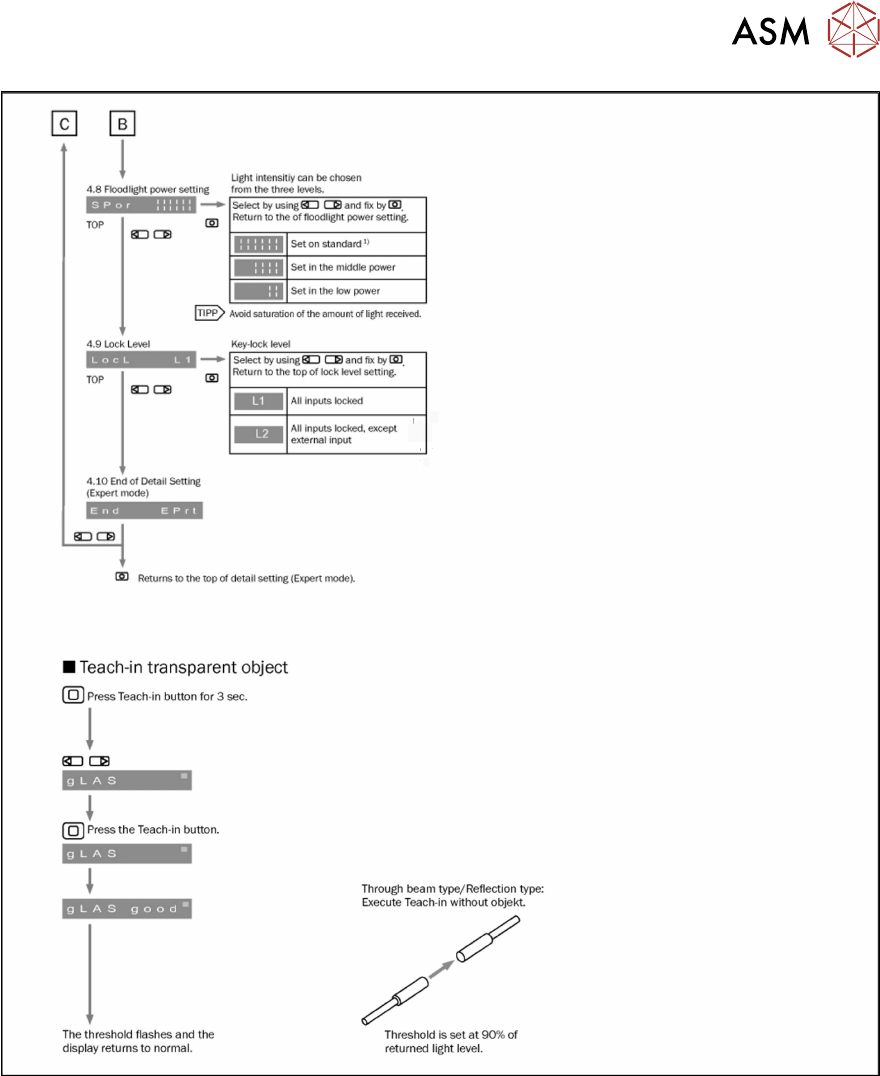

Fig.75: Setting the fiber optic sensor - 4
4 Replacing spare parts at the conveyor
4.6 Fiber optic cables and laser light barriers
90 Service Manual ASM ProcessLens Dual-lane 09/2018
4.6.5 Replacing laser light barrier cables and fiber optic cables
Parts
Fig.76: Laser light barriers and fiber optic cables
1 03092408-xx Fiber optic cable LL3-TV05 3m
2 03092408-xx Fiber optic cable LL3-TV05 3m
3 03092407-xx Fiber optic cable LL3-TV05 2m
4 03098280‑xx Laser light barrier transmitter*
5 03098281‑xx Laser light barrier receiver*
6 Cable outlet on the input side of the rail
* See also 4.6.1 "Replacing the laser light barrier for the transmitter/receiver" [}75]
The fiber optic cables are routed through the conveyor rail to the cable outlet(6). From there, the
fiber optic cables are routed under the lifting table to the fiber optic sensors.
The laser light barrier cables are routed through the conveyor rail to the cable outlet(6). From
there, the cables are routed under the lifting table to the conveyor control.
Laser light barrier cable transmitter and receiver
Side
panel
Item no. Designation
A 03113845-xx Cable PCB centering laser LLBt1 panel-A
B 03113846-xx Cable PCB centering laser LLBt1 panel-B
C 03113847-xx Cable PCB centering laser LLBt2 panel-C
D 03113848-xx Cable PCB centering laser LLBt2 panel-D
See also 4.3.3 "Replacing the cables (belt motor and width adjustment motor)" [}53]
