4 Replacing spare parts at the conveyor
4.4 Width adjustment
58 Service Manual ASM ProcessLens Dual-lane 09/2018
4.4.2 Replacing the idler pulley (width adjustment)
Parts
Fig.32: Idler pulley
03121206‑xx Idler pulley 20x5 M-C complete
See also 4.5.5 "Replacing the pinion gear drive" [}71]
Equipment and tools
00386253‑xx Torque screwdriver ESD 0.4 - 1.0Nm
03078706‑xx Bit holder for screwdriver TorqueVario
Bit, size 4
00326015‑xx Belt tension measuring device
If required:
Magnet lifter or tweezers and adhesive tape
Measuring scale
4 Replacing spare parts at the conveyor
4.4 Width adjustment
Service Manual ASM ProcessLens Dual-lane 09/2018 59
Overview

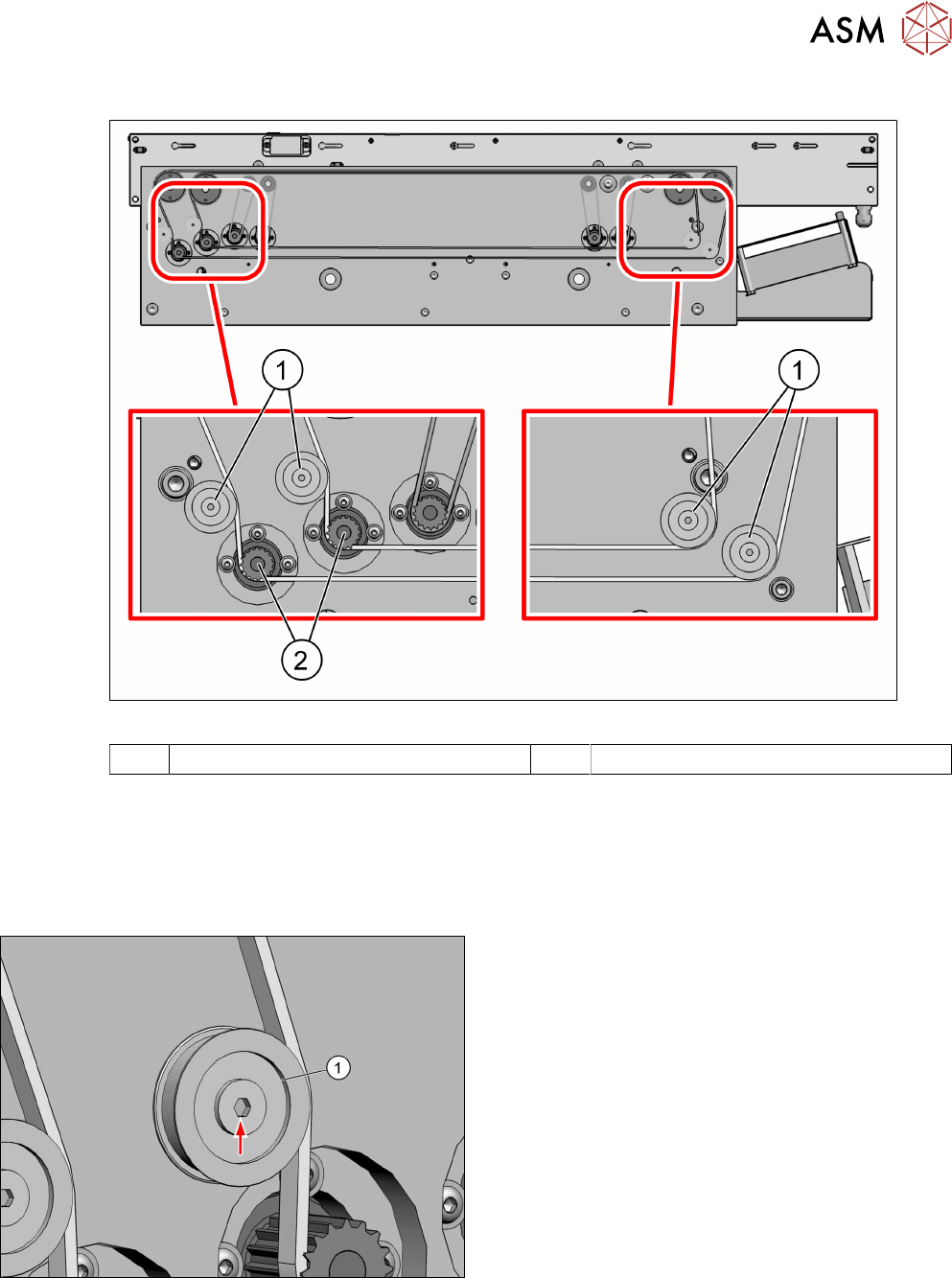

Fig.33: Overview of idler pulleys (width adjustement)
1 Deflection pulleys 2 Width adjustment motor
Removal
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
► Loosen the toothed belt (width adjustment).
Replacing the toothed belt (width adjustment)
Fig.34: Idler pulley
► Remove the fastening screw of the idler pulley(1)
and take the idler pulley off.
Installation
► Fasten the idler pulley with a screw.
► For further installation, proceed as described in section Replacing the toothed belt (width ad-
justment).
4 Replacing spare parts at the conveyor
4.4 Width adjustment
60 Service Manual ASM ProcessLens Dual-lane 09/2018
4.4.3 Replacing the clamping unit
Parts

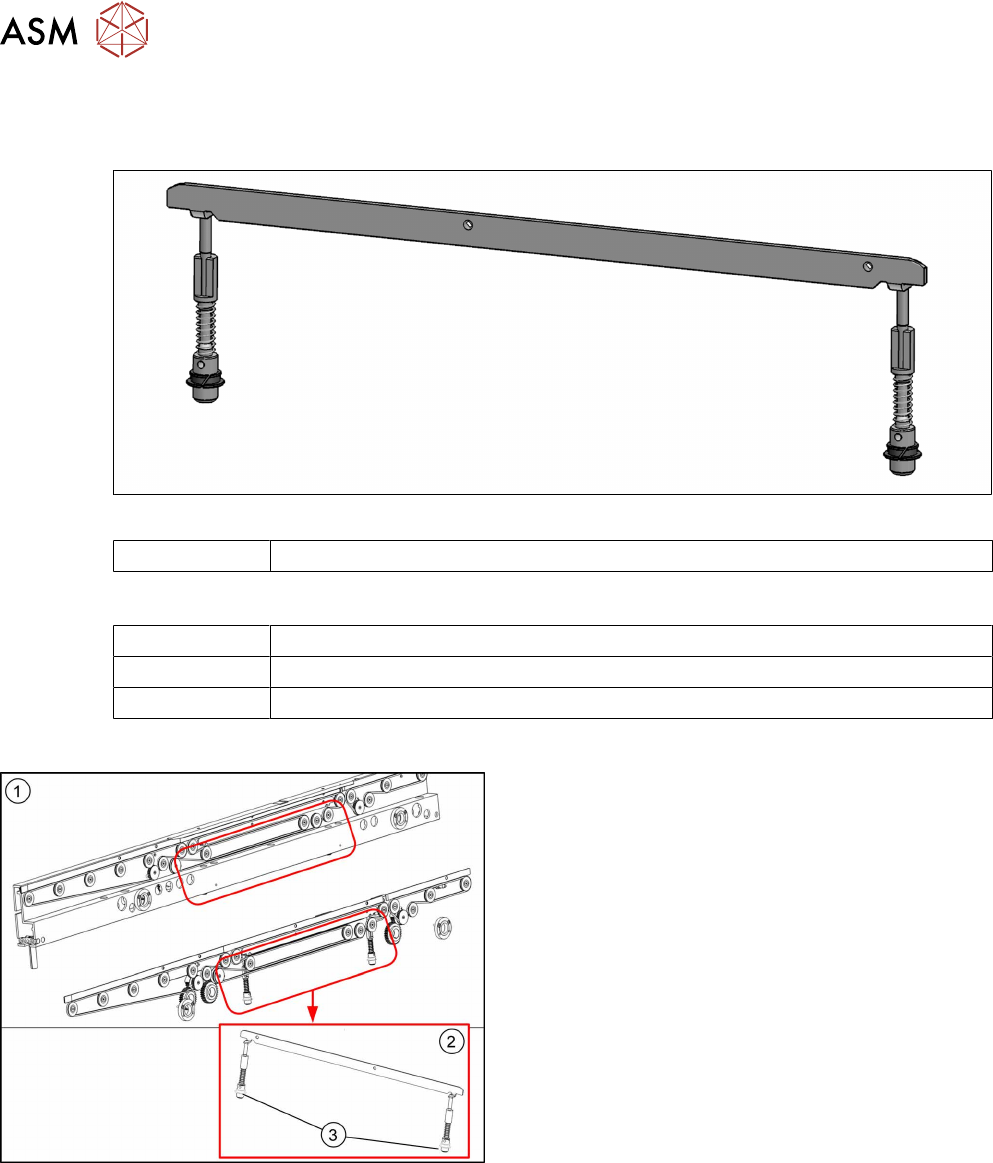

Fig.35: Clamping unit
03121328-xx Clamping unit 4 complete M-C
Equipment and tools
02101037‑xx Loctite 241
00353832-xx Allen key set
00376503-xx Torx L-Wrench Set with Spherical head (Torx 30)
Overview
Fig.36: Clamping unit
1. Clamping unit on conveyor rail
2. Clamping unit complete
3. actuator
