4 Replacing spare parts at the conveyor 4.3 Conveyor drive Service Manual ASM ProcessLens Dual-lane 09/2018 55 Removal CAUTION Do not loosen the wrong screws Make sure that you do not loosen any other screws except those…
4 Replacing spare parts at the conveyor
4.3 Conveyor drive
54 Service Manual ASM ProcessLens Dual-lane 09/2018
Overview

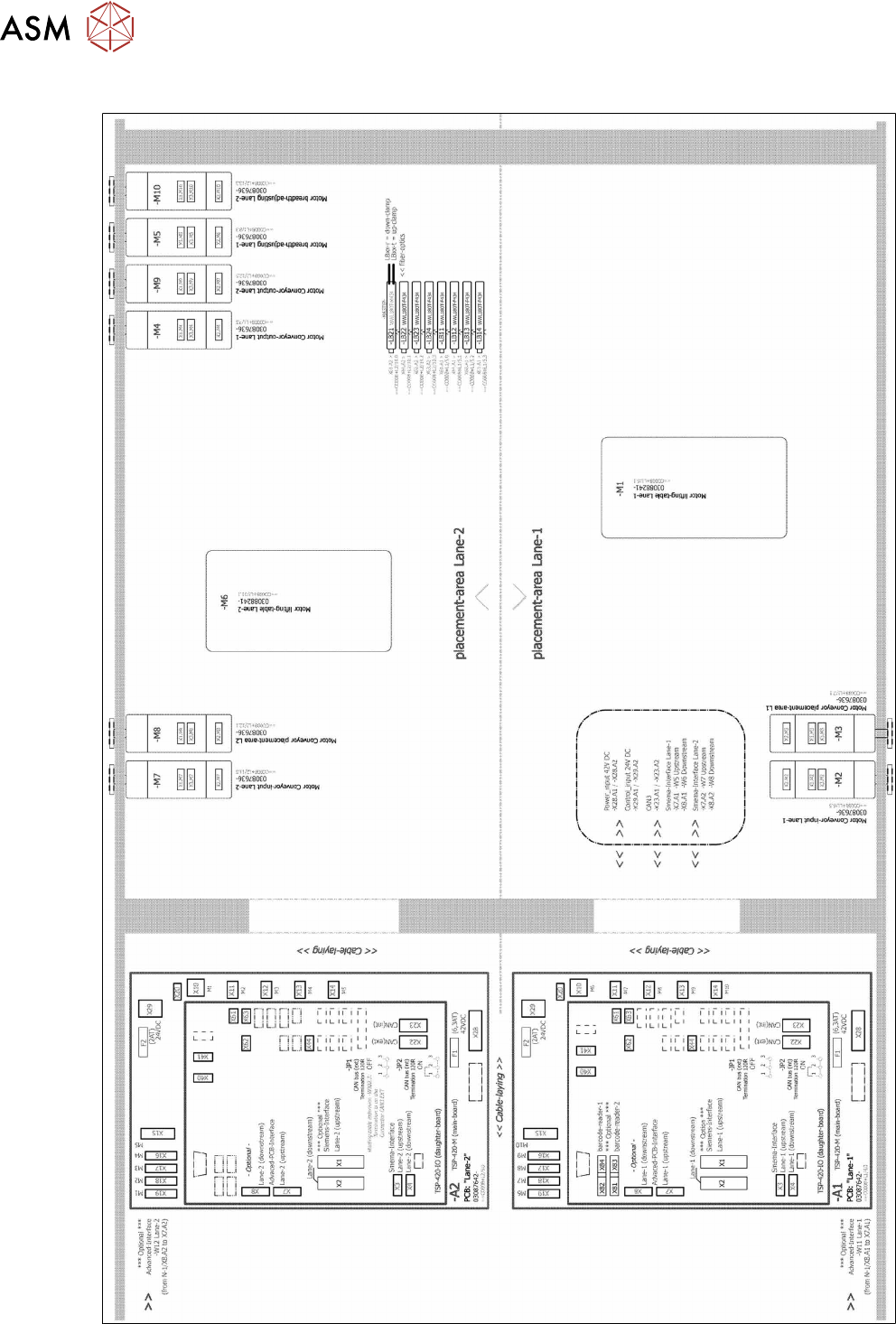

Fig.27: Overview of cables
4 Replacing spare parts at the conveyor
4.3 Conveyor drive
Service Manual ASM ProcessLens Dual-lane 09/2018 55
Removal
CAUTION
Do not loosen the wrong screws
Make sure that you do not loosen any other screws except those ones explicitly mentioned.
Loosening other screws could lead to irreparable misalignment or damage to the conveyor.
► Use the software or manually move the conveyor rail into a position which allows you best
access.
– To move the conveyor rail manually, pull the toothed belt of the width adjustment unit.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
Fig.28: Table plate and covers
► Remove the four screws fastening the lifting table
plate(1) (see also 4.2.1 "Replacing the lifting
table plate" [}38]).
► Remove the fixing spacer bolts of the covers(2)
above the conveyor control (two screws each
cover) and remove the covers.
Fig.29: Cables
The cables(1) run from the respective motor over the
floor of the conveyor to the conveyor control(2).
► Carefully unthread the cables
Remove any cable ties.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Observe the installation instructions for the conveyor drive where necessary.
► Replace any open cable ties.
Make sure that the cable ties and the heads of the cable ties do not rub against any
parts when you do this.
4 Replacing spare parts at the conveyor
4.4 Width adjustment
56 Service Manual ASM ProcessLens Dual-lane 09/2018
4.4 Width adjustment
4.4.1 Replacing the toothed belt (width adjustment)
Parts
Fig.30: Toothed belt (width adjustment)
1 Track 1 (shorter) 03121586‑xx Toothed belt BRECOFLEX 5+-0.1 AT3/1509
2 Track 2 (longer) 03121584‑xx Toothed belt BRECOFLEX 5+-0.1 AT3/1701
Equipment and tools
00326015‑xx Belt tension measuring device
00353832-xx Allen key set
Overview
Fig.31: Toothed belt (width adjustment)
1) Conveyor track 1
1a) Toothed belt for width adjustment
1b) Width adjustment motor
2) Conveyor track 2
2a) Toothed belt for width adjustment
2b) Width adjustment motor
