4 Replacing spare parts at the conveyor
4.5 Conveyor belt, belt drive and hexagonal shaft
Service Manual ASM ProcessLens Dual-lane 09/2018 71
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Tighten the fixing screw with a torque of 0.58Nm. Make sure that you do not tighten
the screws too much. This could cause irreparable damage to the conveyor!
The corresponding threads are only in 1.5 to 2mm thick plates and could be damaged
if you use a torque which is too high.
For this reason, avoid using screws which are too short. Use a measuring scale to
check, if needed!
► Use any spacers available.
► Do not bend or damage the toothed belt.
► Make sure that the toothed belt is positioned accurately in the guidance on the motor
shaft or in the belt drive.
► Remove the adhesive tape, if necessary.
► While you tighten the idler pulley, set the tension of the toothed belt correctly (see Set-
ting the tension of the conveyor toothed belt).
4.5.5 Replacing the pinion gear drive
Parts

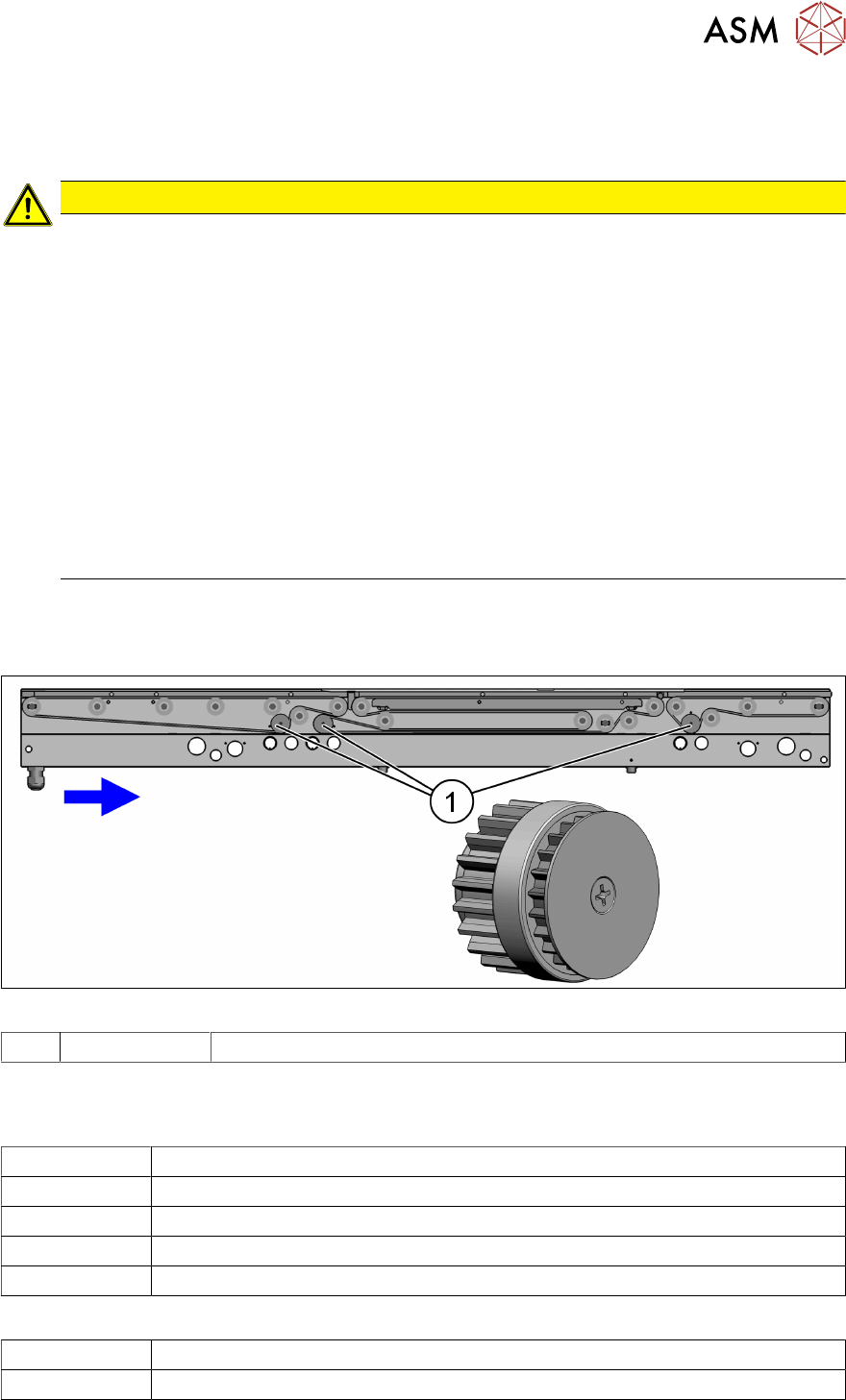

Fig.47: Pinion gear drive
1 03112876‑xx Drive pinion cpl. M-C
See also Replacing the idler pulley (conveyor belt)
Equipment and tools
00386253‑xx Torque screwdriver ESD 0.4 - 1.0Nm
03078706‑xx Bit holder for screwdriver TorqueVario
00326015‑xx Belt tension measuring device
00353832-xx Allen key set
Bit, size 4
If required:
Magnet lifter or tweezers and adhesive tape
Measuring scale
4 Replacing spare parts at the conveyor
4.5 Conveyor belt, belt drive and hexagonal shaft
72 Service Manual ASM ProcessLens Dual-lane 09/2018
Removal
CAUTION
Toothed belt
► Make sure that the toothed belt is not folded or otherwise damaged.
► Use the software or manually move the conveyor rail into a position which allows you best
access.
– To move the conveyor rail manually, pull the toothed belt of the width adjustment unit.
– Make sure that the rear side of the conveyor rail is also accessible.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.

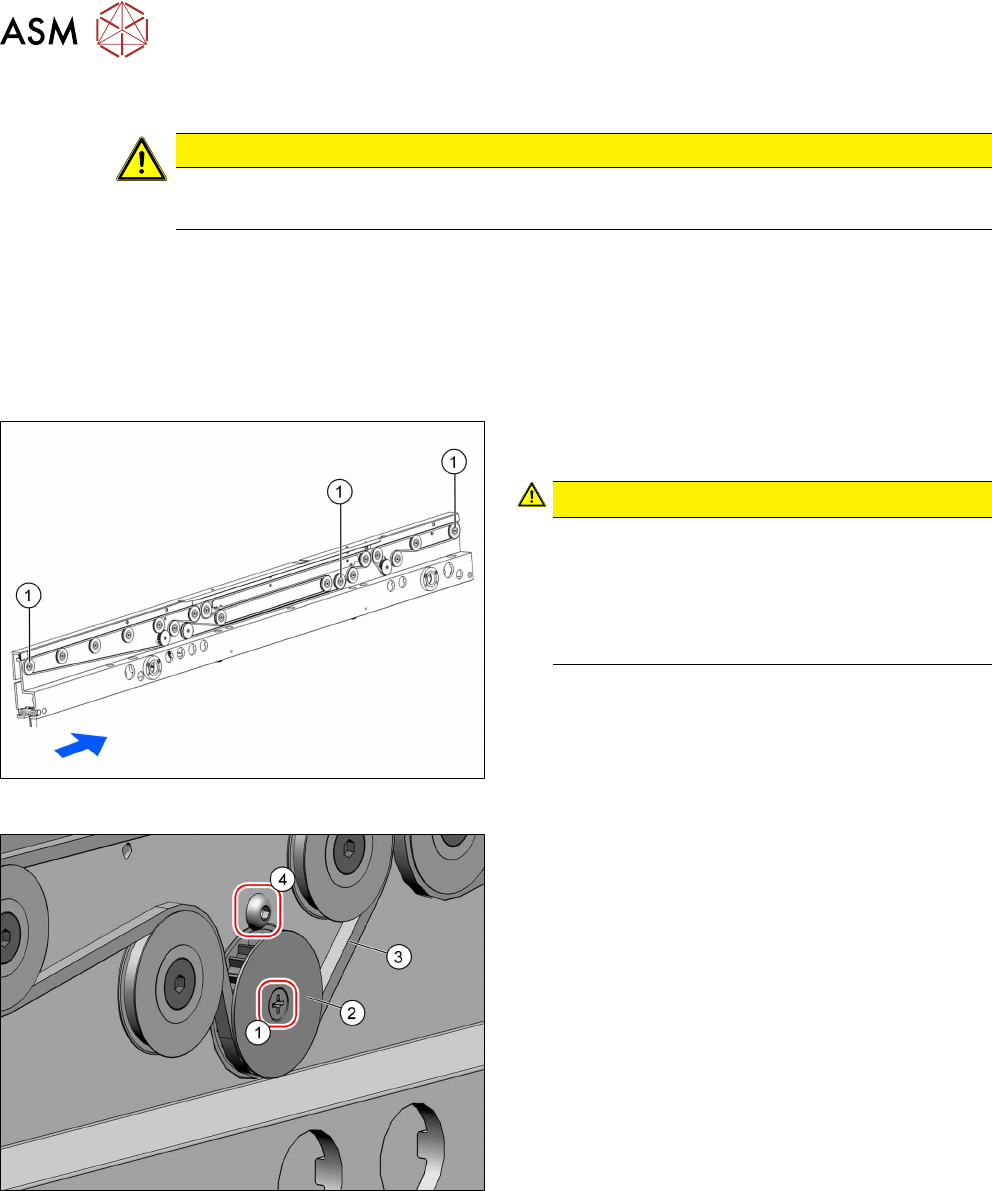

Fig.48: Movable idler pulleys
► Loosen the fixing screw of the relevant movable
idler pulley(1) to release the tension of the belt.
CAUTION!
Loosen the movable idler pulley only as far
as necessary!
Do not remove the movable idler pulley (unless
you explicitly need to remove it). Otherwise the T
slot nut on the inner side fall into the conveyor
rail.
.
See also Replacing the idler pulley (conveyor belt)
Fig.49: Washer
► Remove the fixing screw(1) (cross head) and
take off the washer(2).
► Remove the toothed belt(3).
► Remove the fastening screw(4) (Allen).
4 Replacing spare parts at the conveyor
4.5 Conveyor belt, belt drive and hexagonal shaft
Service Manual ASM ProcessLens Dual-lane 09/2018 73
Fig.50: Pulling out the pinion gear drive
► From the rear of the rail, push the pinion gear
drive out.
Fig.51: Pulling off the bearing
► Pull the bearing(1) off the pinion gear drive.
Installation
Fig.52: Inserting the bearing
► Insert the bearing(1) into the rail.
Make sure that the bearing does not fall into the
rail.
