4 Replacing spare parts at the conveyor 4.2 Lifting table Service Manual ASM ProcessLens Dual-lane 09/2018 39 Removal NOTICE Does the lifting table stay in the top position? If the lifting table remains in the top positi…
4 Replacing spare parts at the conveyor
4.2 Lifting table
38 Service Manual ASM ProcessLens Dual-lane 09/2018
4.2 Lifting table
4.2.1 Replacing the lifting table plate
Parts

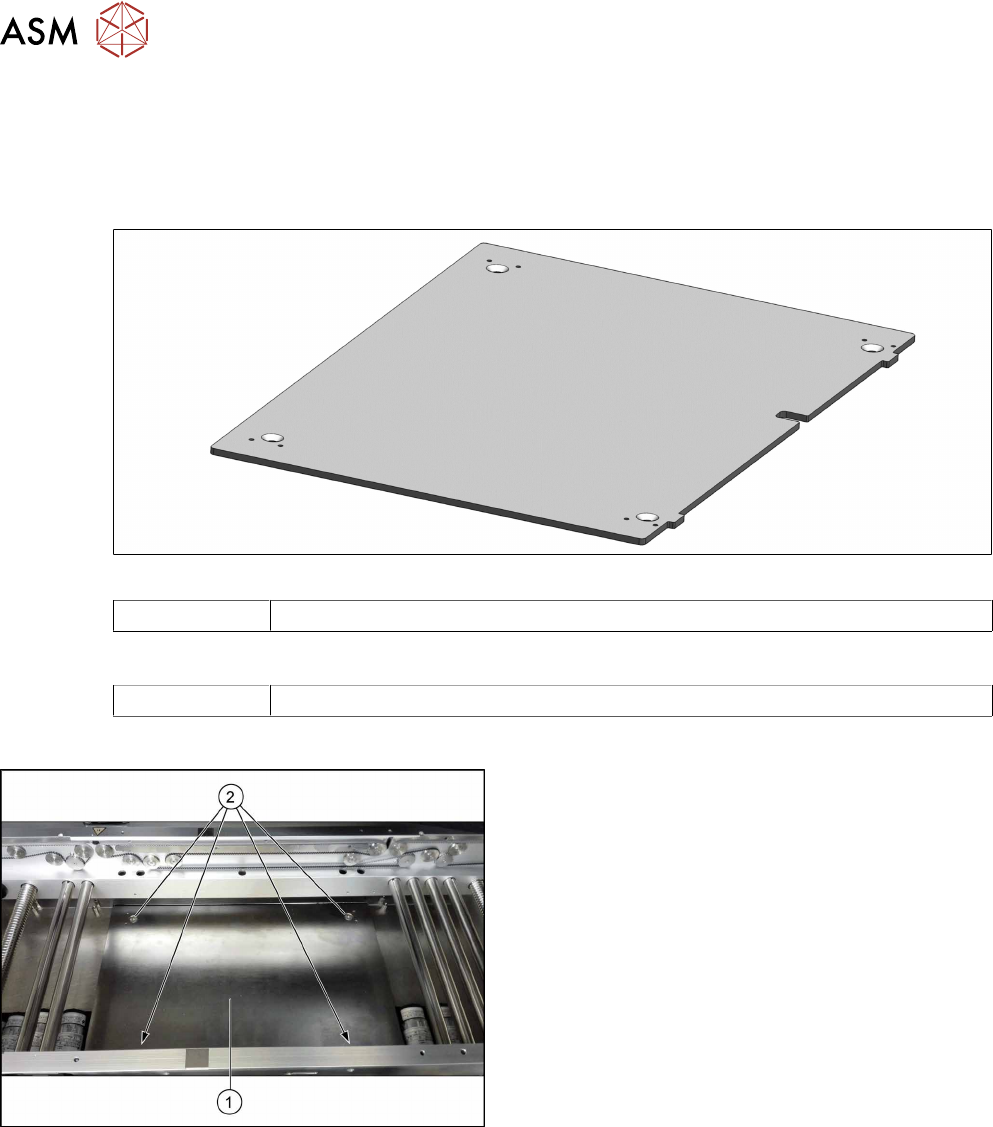

Fig.7: Lifting table plate
03114873‑xx Lifting table plate M-C
Equipment and tools
00376503-xx Torx L-Wrench Set with Spherical head (Torx 30)
Overview
Fig.8: Lifting table plate
1. Lifting table plate
2. Fastening screws (Torx30) for lifting table plate
4 Replacing spare parts at the conveyor
4.2 Lifting table
Service Manual ASM ProcessLens Dual-lane 09/2018 39
Removal
NOTICE
Does the lifting table stay in the top position?
If the lifting table remains in the top position and cannot be lowered, you will not be able to
dismantle the lifting table plate. In this case, call the SIPLACE Service team.
► Use the software or manually move the conveyor rail into a position which allows you best
access.
– To move the conveyor rail manually, pull the toothed belt of the width adjustment unit.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
► Move the gantry out of the transport area as far as possible to one side of the machine.
► Remove the screws fastening the lifting table plate and remove the lifting table plate from the
machine. The lifting table plate is pinned to the table plate guides but can be easily pulled off.
Fig.9: Plate guides
► Mark the positions of the table plate guides(1) to
make it easier to refit them later on.
Make sure you do not confuse these. If you do,
you will need to reset the parallelism of the lifting
table plates.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Place the lifting table plate onto the guidance pins. Make sure that the fastening
screws slide properly into the precut thread.
► Check the free movement of the lifting table (see Checking free movement of lifting
table).
4 Replacing spare parts at the conveyor
4.2 Lifting table
40 Service Manual ASM ProcessLens Dual-lane 09/2018
4.2.2 Replacing the plate guides
Parts
Fig.10: Plate guide
03119681‑xx Plate guide RC
03119681Sxx Plate guide RC (spare parts kit)
Includes:
●
Plate guide RC [03119681‑xx]
●
Self-cutting screw REMFORM RF-SN85-6 x 20-9.8 [03034122‑xx]
●
2x pin ISO 8734 - 3 x 12 - A-ST [03015751‑xx]
Equipment and tools
00376503-xx Torx L-Wrench Set with Spherical head (Torx 30)
Overview
Fig.11: Plate guide
1. Plate guide 1
2. Plate guide 2
3. Pins
4. Self-cutting screw
