4 Replacing spare parts at the conveyor
4.7 Boards
96 Service Manual ASM ProcessLens Dual-lane 09/2018
Fig.83: 03087641-02
4 Replacing spare parts at the conveyor
4.7 Boards
Service Manual ASM ProcessLens Dual-lane 09/2018 97

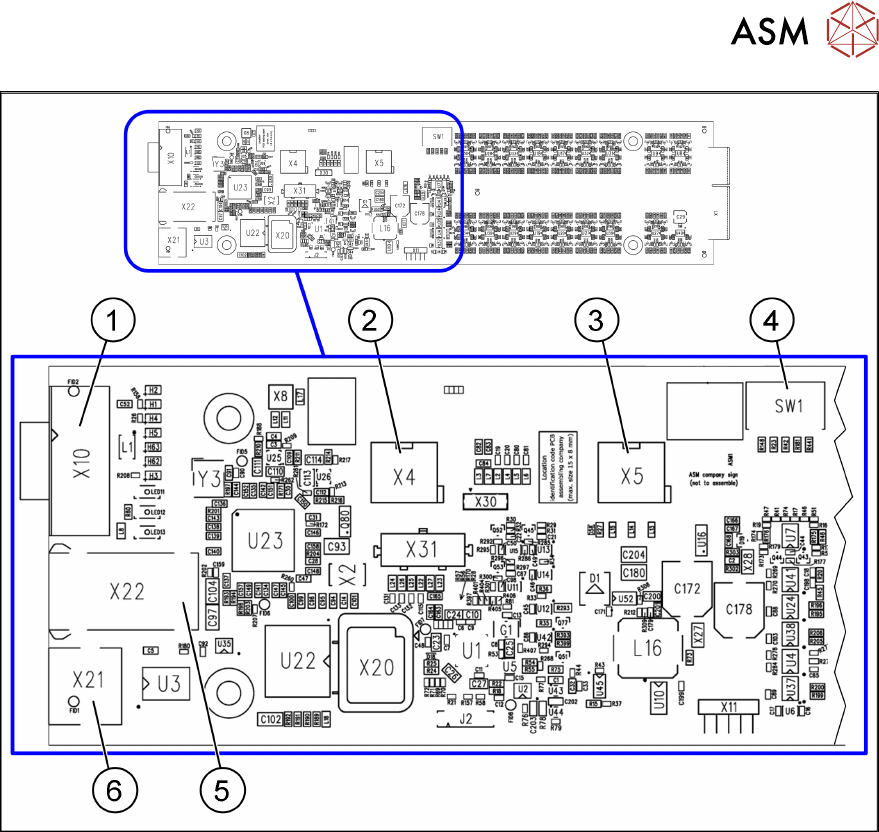

Fig.84: TSP420 overview
Spare fuses:
●
F1: Fuse T5A 5x20mm SPT series (0001.2511 Schurter)
●
F2: Fuse T2A 5x20mm (0034.3120 Schurter / 0239 002 XP Littelfuse)
4 Replacing spare parts at the conveyor
4.7 Boards
98 Service Manual ASM ProcessLens Dual-lane 09/2018

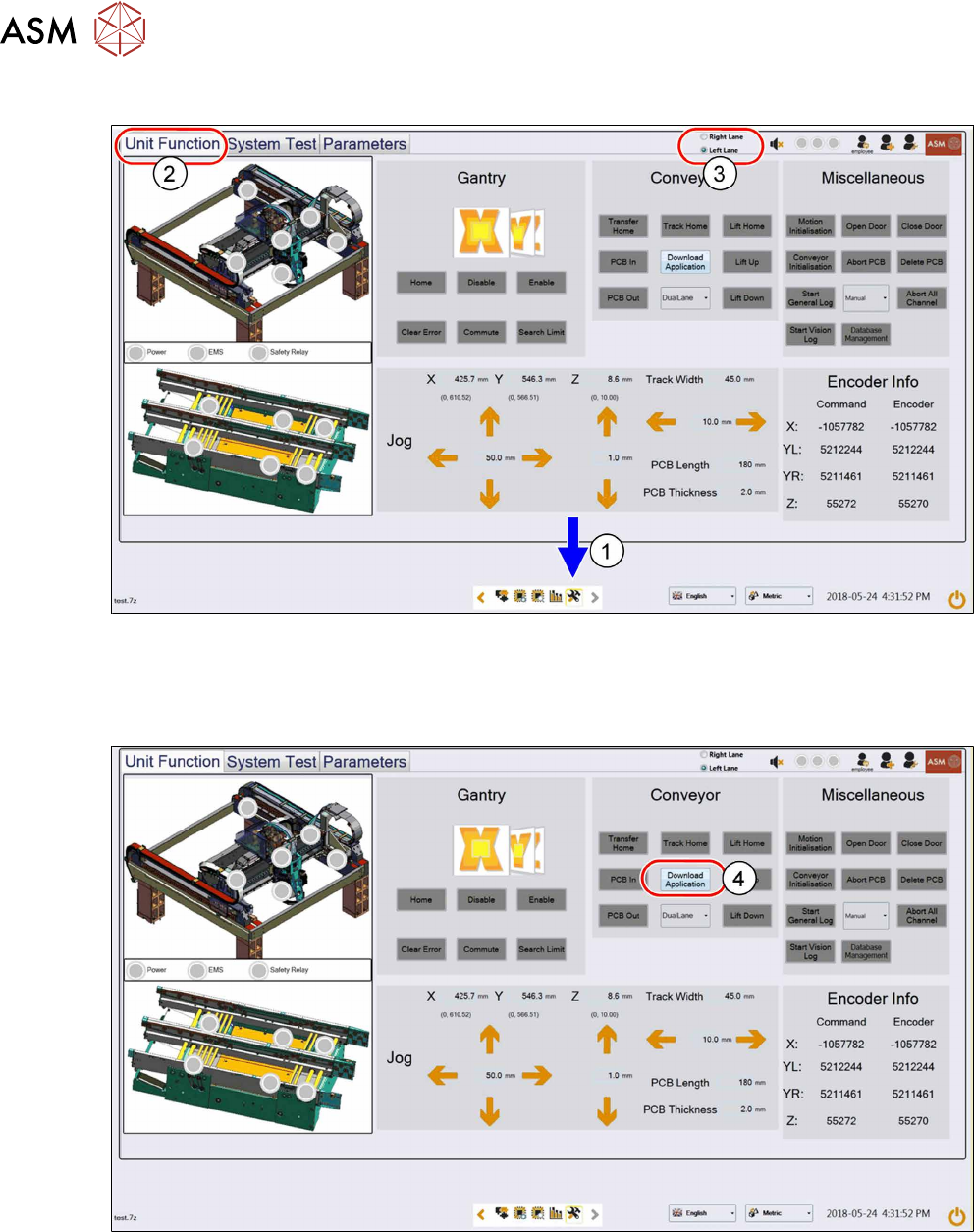

4.7.2 eSW Download
► Click on this icon(1) to enter the settings menu.
► Click on Unit Function(2) to enter the settings user menu.
► Select the Right Lane or the Left Lane(3).
► Switch to operator level Machine service.
► Click on Download Apllication(4) to proceed the download of the eSW.
