4 Replacing spare parts at the conveyor 4.5 Conveyor belt, belt drive and hexagonal shaft 74 Service Manual ASM ProcessLens Dual-lane 09/2018 Fig.53: Inserting the pinion gear drive ► Insert the pinion gear drive. Fig.…
4 Replacing spare parts at the conveyor
4.5 Conveyor belt, belt drive and hexagonal shaft
Service Manual ASM ProcessLens Dual-lane 09/2018 73

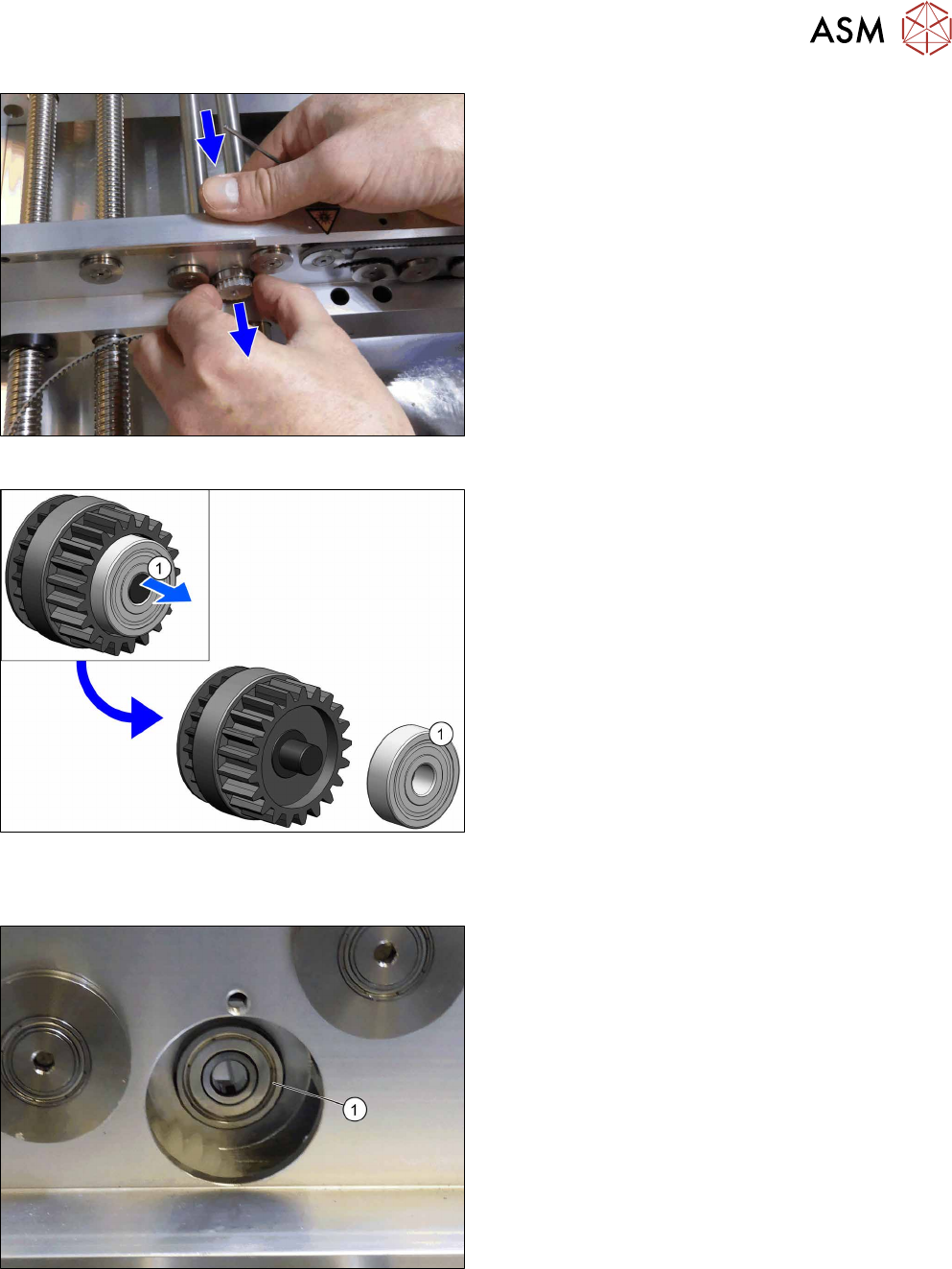

Fig.50: Pulling out the pinion gear drive
► From the rear of the rail, push the pinion gear
drive out.
Fig.51: Pulling off the bearing
► Pull the bearing(1) off the pinion gear drive.
Installation
Fig.52: Inserting the bearing
► Insert the bearing(1) into the rail.
Make sure that the bearing does not fall into the
rail.
4 Replacing spare parts at the conveyor
4.5 Conveyor belt, belt drive and hexagonal shaft
74 Service Manual ASM ProcessLens Dual-lane 09/2018

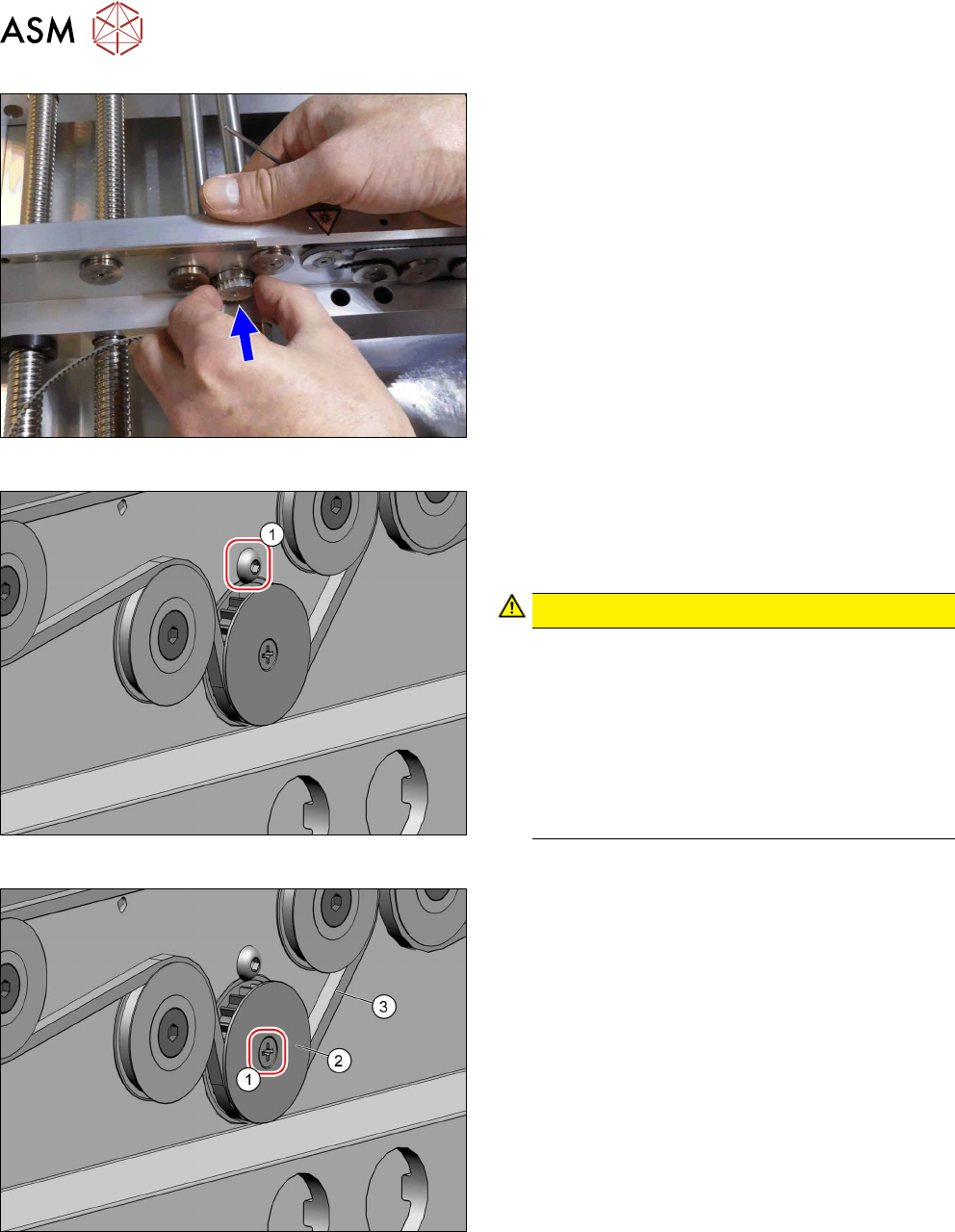

Fig.53: Inserting the pinion gear drive
► Insert the pinion gear drive.
Fig.54: Screw
► Secure the pinion gear drive with the screw(1)
(Allen, DIN EN ISO 7380-M3x4-A2-70
[03074775‑xx]). Tighten the screw with a torque
of 0.58Nm.
CAUTION!
Make sure that you do not tighten the screw
too much. This could cause irreparable dam-
age to the conveyor!
The corresponding threads are only in 1.5 to
2mm thick plates and could be damaged if you
use a torque which is too high.
For this reason, avoid using screws which are
too short. Use a measuring scale to check, if
needed!
.
Fig.55: Screw
► Thread in the toothed belt(3).
Make sure that the toothed belt is positioned ac-
curately in the guidance on the motor shaft or in
the belt drive.
► Fix the washer(2) with the screw(1) (cross
head).
► When you tighten the idler pulley, set the tension of the toothed belt.
Setting the tension of the conveyor toothed belt
4 Replacing spare parts at the conveyor
4.6 Fiber optic cables and laser light barriers
Service Manual ASM ProcessLens Dual-lane 09/2018 75
4.6 Fiber optic cables and laser light barriers
4.6.1 Replacing the laser light barrier for the transmitter/receiver
Parts

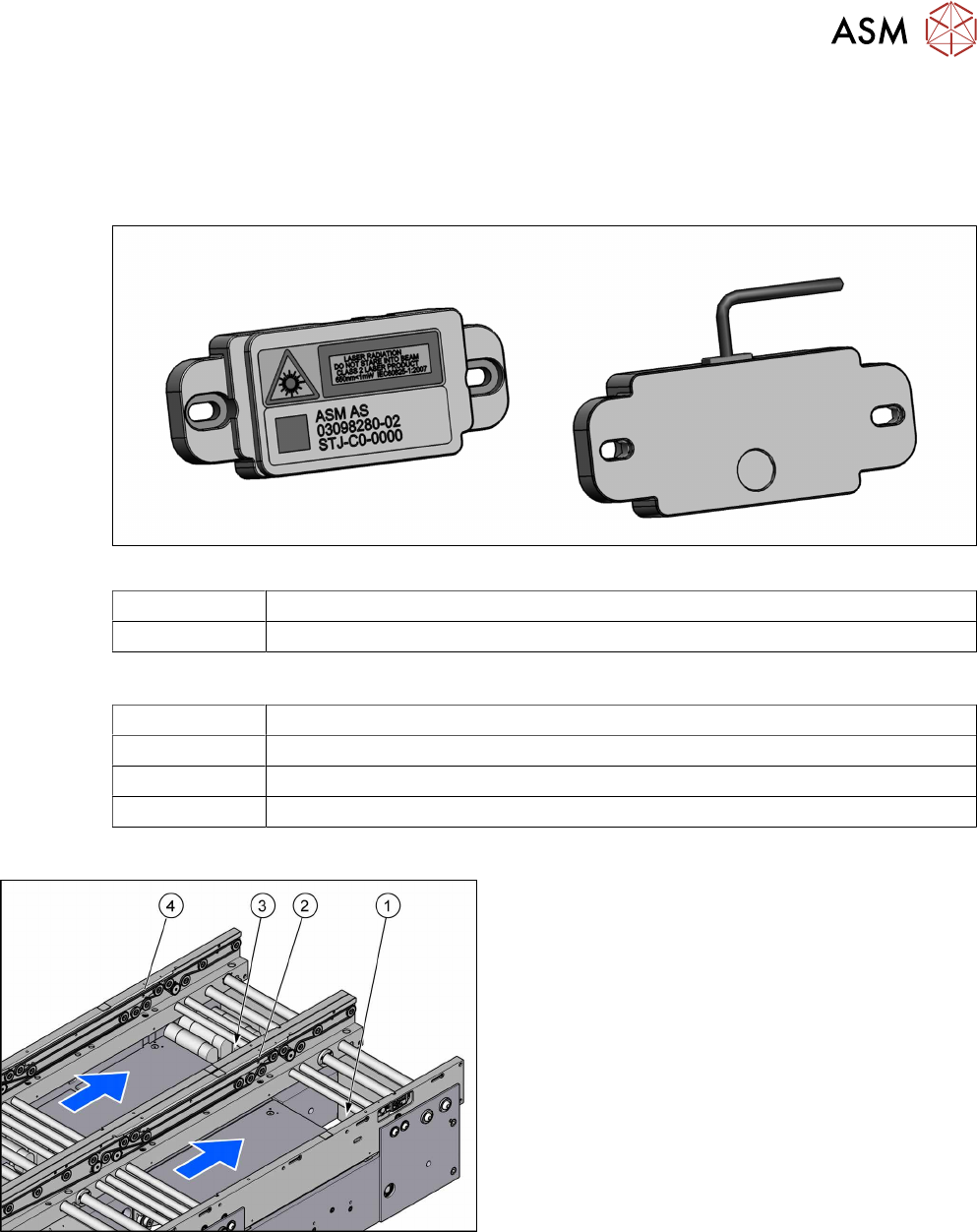

Fig.56: Laser light barrier transmitter and receiver
03098280‑xx Laser light barrier transmitter
03098281‑xx Laser light barrier receiver
Equipment and tools
00353832-xx Allen key set
Flash light
Magnet lifter
Tweezers
Overview
Fig.57: Transmitter and receiver
1. Transmitter PA (track 1)
2. Receiver PA (track 1)
3. Transmitter PA (track 2)
4. Receiver PA (track 2)
