4 Replacing spare parts at the conveyor
4.1 Conveyor - overview
Service Manual ASM ProcessLens Dual-lane 09/2018 37

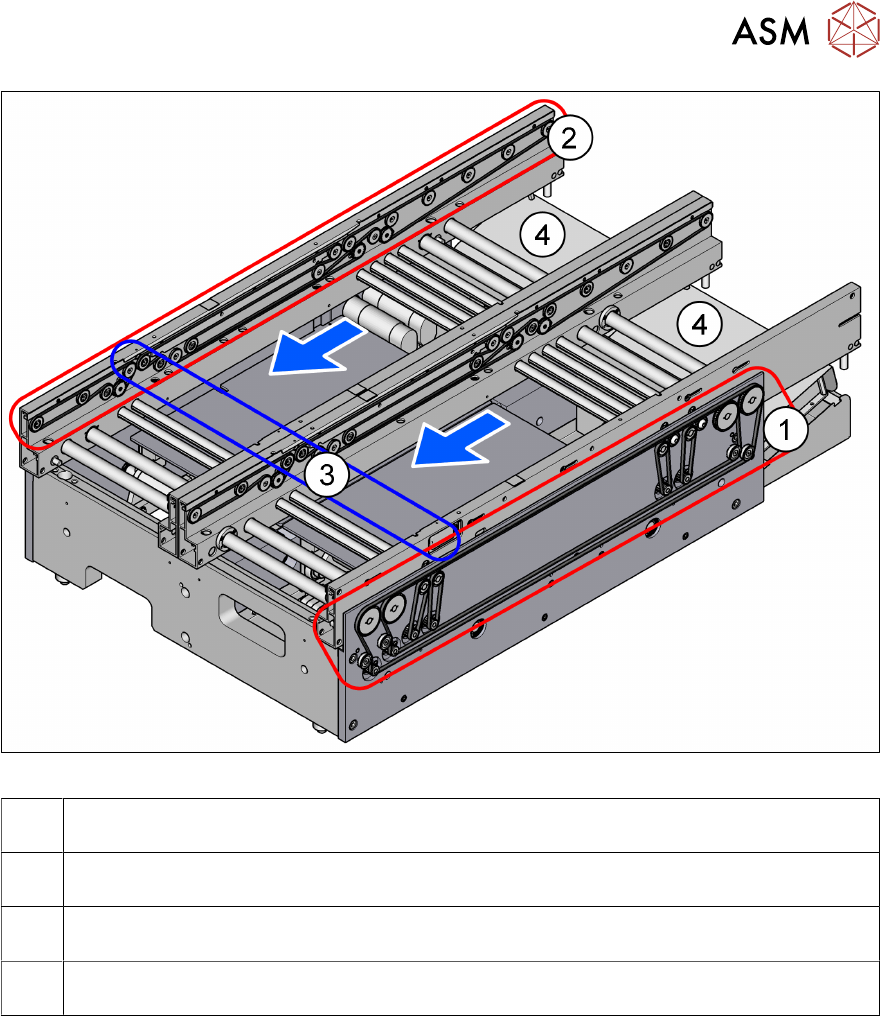

Fig.6: Conveyor overview - part 2
1 Width adjustment
4.4 "Width adjustment" [}56]
2 Conveyor belts
4.5 "Conveyor belt, belt drive and hexagonal shaft" [}63]
3 Light barriers
4.6 "Fiber optic cables and laser light barriers" [}75]
4 Conveyor control TSP420
4.7 "Boards" [}93]
The flexible dual conveyor has two conveyor tracks that are electrically and mechanically inde-
pendent of one another.
By default, the fixed conveyor rails are in the "outer" position.
Optionally, the fixed conveyor rail can be selected - right/right or left/left.
Setting the fixed conveyor rail
The PCB dual conveyor can also be operated as a flexible single conveyor. For SIPLACE Pro jobs,
a separate license is required. Mapping at the station is possible without a separate license.
4 Replacing spare parts at the conveyor
4.2 Lifting table
38 Service Manual ASM ProcessLens Dual-lane 09/2018
4.2 Lifting table
4.2.1 Replacing the lifting table plate
Parts
Fig.7: Lifting table plate
03114873‑xx Lifting table plate M-C
Equipment and tools
00376503-xx Torx L-Wrench Set with Spherical head (Torx 30)
Overview
Fig.8: Lifting table plate
1. Lifting table plate
2. Fastening screws (Torx30) for lifting table plate
4 Replacing spare parts at the conveyor
4.2 Lifting table
Service Manual ASM ProcessLens Dual-lane 09/2018 39
Removal
NOTICE
Does the lifting table stay in the top position?
If the lifting table remains in the top position and cannot be lowered, you will not be able to
dismantle the lifting table plate. In this case, call the SIPLACE Service team.
► Use the software or manually move the conveyor rail into a position which allows you best
access.
– To move the conveyor rail manually, pull the toothed belt of the width adjustment unit.
► Switch off the machine, disconnect it from the power supply and secure it to prevent
unauthorized reactivation.
► Move the gantry out of the transport area as far as possible to one side of the machine.
► Remove the screws fastening the lifting table plate and remove the lifting table plate from the
machine. The lifting table plate is pinned to the table plate guides but can be easily pulled off.
Fig.9: Plate guides
► Mark the positions of the table plate guides(1) to
make it easier to refit them later on.
Make sure you do not confuse these. If you do,
you will need to reset the parallelism of the lifting
table plates.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Place the lifting table plate onto the guidance pins. Make sure that the fastening
screws slide properly into the precut thread.
► Check the free movement of the lifting table (see Checking free movement of lifting
table).
