4 Replacing spare parts at the conveyor 4.7 Boards Service Manual ASM ProcessLens Dual-lane 09/2018 95 Fig.82: 03087640-02
4 Replacing spare parts at the conveyor
4.7 Boards
94 Service Manual ASM ProcessLens Dual-lane 09/2018

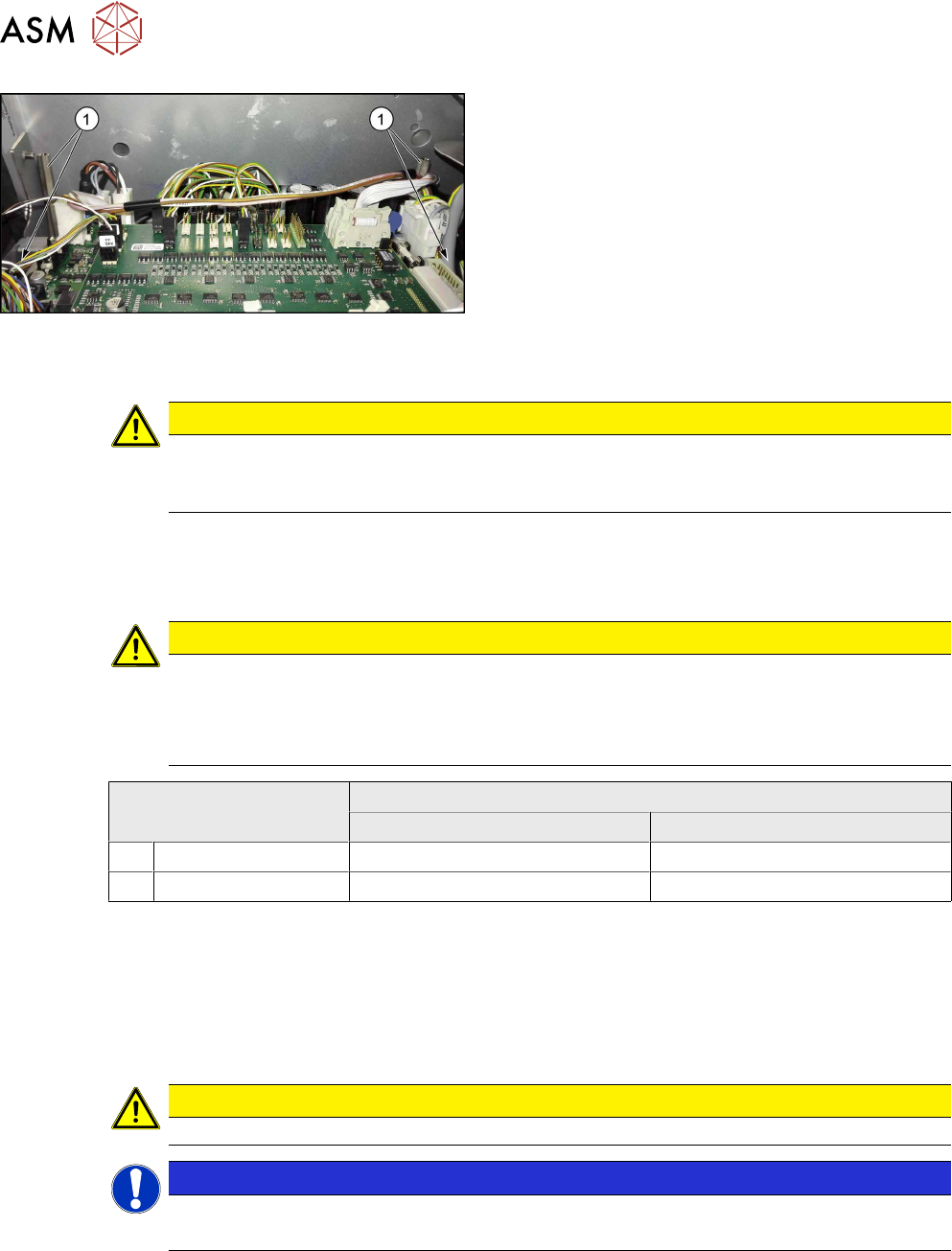

Fig.81: Spacer bolts
► Loosen the four spacer bolts(1).
► Remove the conveyor control together with the mounting plate from the machine.
CAUTION
Do not remove the conveyor control from the mounting plate.
The conveyor control may not be removed from the mounting plate because the mounting
plate serves as a cooling element for the conveyor control.
Installation
► Follow the removal instructions in reverse order for installation. Also observe the following
instructions:
CAUTION
Installation instructions
► Perform a download if needed (see LINK).
► Check the jumper setting: jumper 1 and 2 must be set correctly for both TSP420 (see
table).
Jumper Dip switch setting
Lane 1 Lane 2
1 For MCAN 2-3 2-3
2 For internal CAN 1-2 1-2
4.7.1.1 Conveyor control TSP420 [03087642-xx]
Two TSP420 are fitted in SIPLACE TX-Series machines.
The conveyor control "TSP420 assembly" [03087642-xx] comprises the following components:
●
Main board: TSP420-M [ 03087640-xx ]
●
I/O board: TSP420-IO [ 03087641-xx ]
CAUTION
These two boards may not be separated!
NOTICE
Terminating resistor (cable set PCB dual conveyor [03110653‑xx])
The terminating resistor is set for the "Shuttle Option" by default.
4 Replacing spare parts at the conveyor
4.7 Boards
Service Manual ASM ProcessLens Dual-lane 09/2018 95

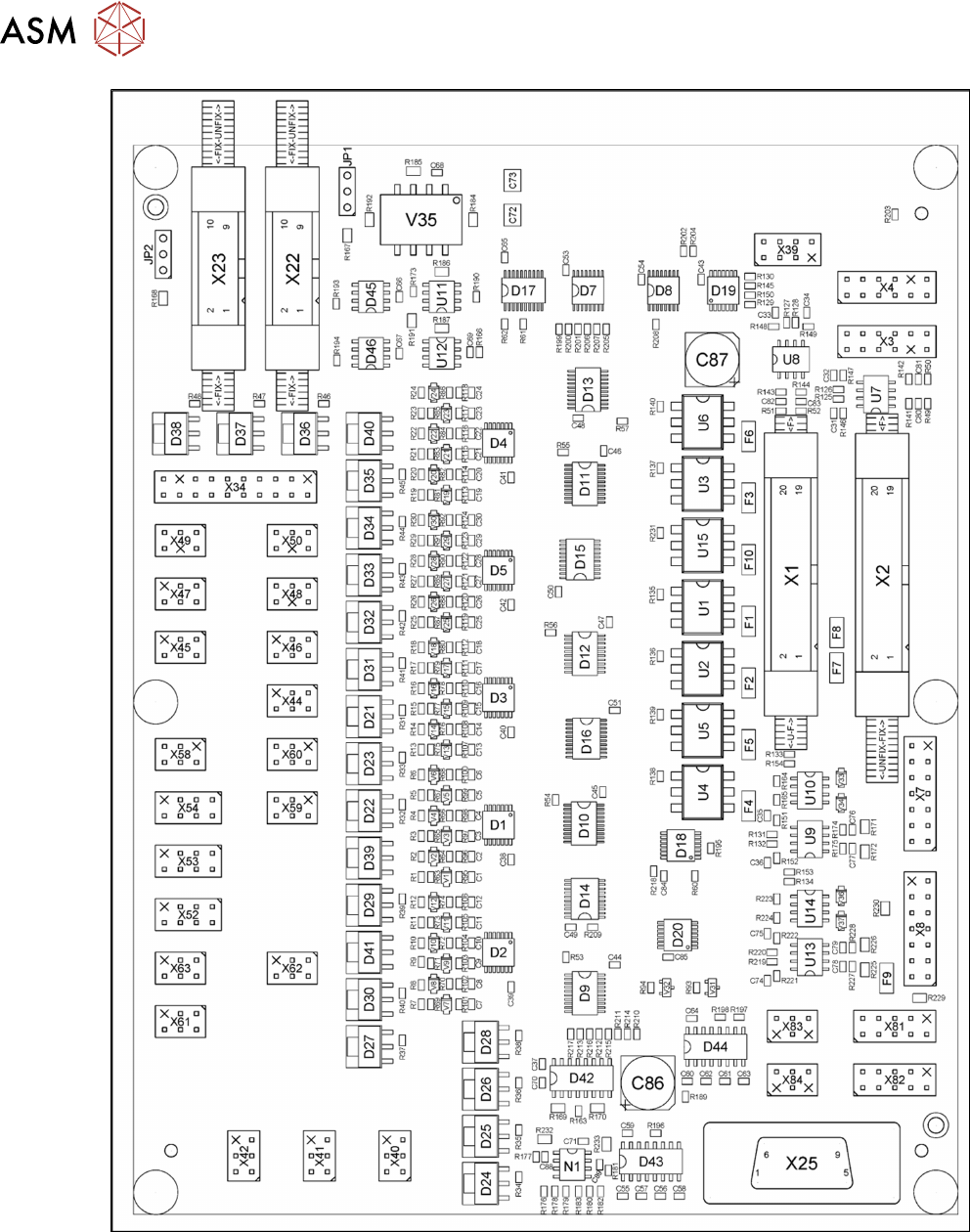

Fig.82: 03087640-02
4 Replacing spare parts at the conveyor
4.7 Boards
96 Service Manual ASM ProcessLens Dual-lane 09/2018
Fig.83: 03087641-02
