9 Revolver Head SIPLACE 80S/F/G Service M anual Edition 04/97 9 - 86

SIPLACE 80S/F/G Service Manual 9 Revolver Head

Edition 04/97

9 - 85

●

Nozzle-changing has been simplified.

●

The sealing piston V2 has been adapted to the modified nozzle.

NOTE

When you are performing servicing work make sure that you do not mix up segment version 1

components and with version 2 components.

9 Revolver Head SIPLACE 80S/F/G Service Manual

Edition 04/97

9 - 86

SIPLACE 80S/F/G Service Manual 9 Revolver Head

Edition 04/97

9 - 87

9.9 Optical PCB Position Recognition (PCB Vision

System)

The optical PCB position recognition or the PCB vision system registers the exact position of the PCB by

measuring the fiducials and then determines the offset in the x and y directions, the angle of rotation with

respect to the direction of PCB transportation and the shear of the PCB. Rejection markings (ink dots) are

also registered by the PCB vision system.

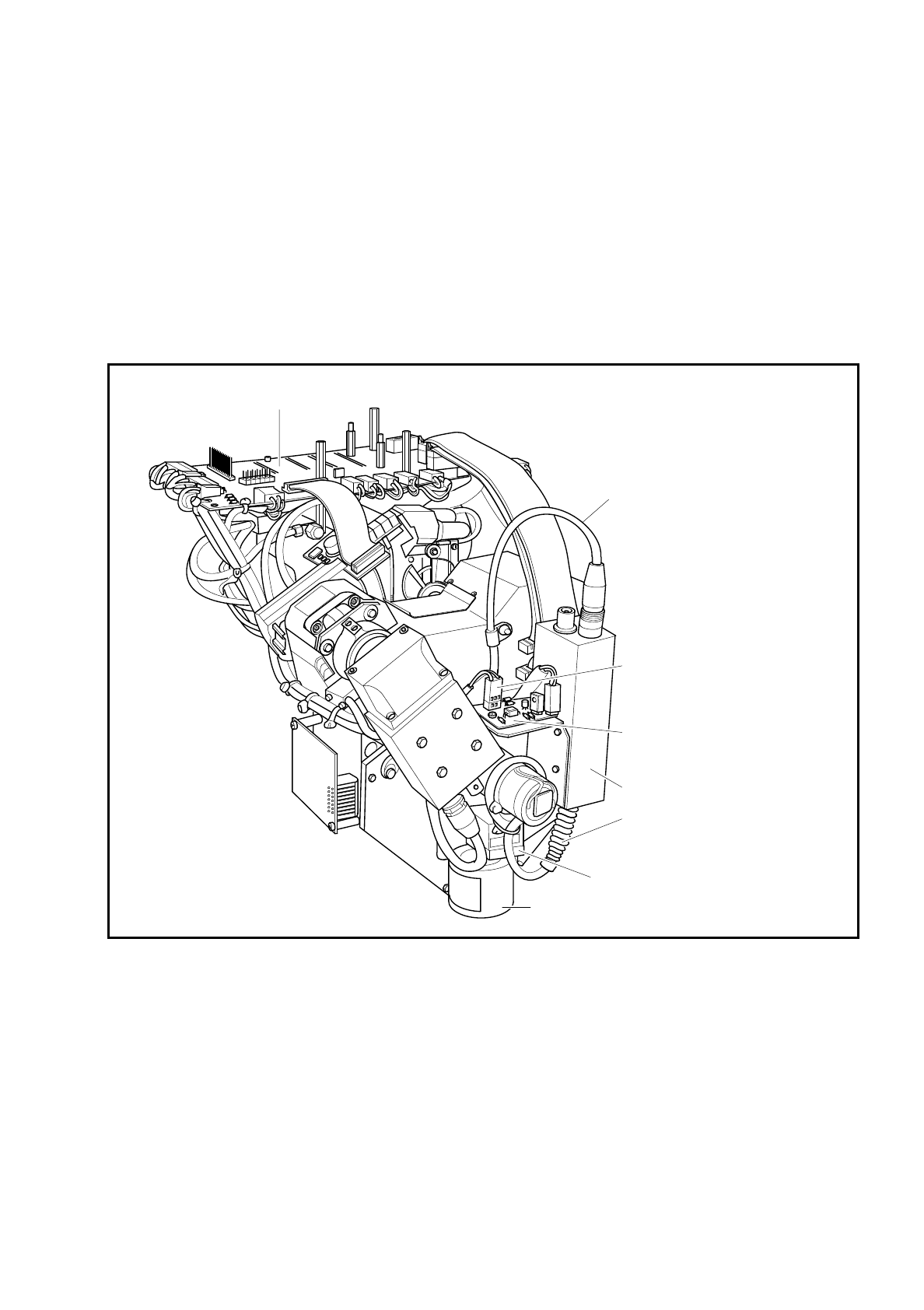

Fig. 9.9.1 Optical PCB position recognition (PCB board recognition)

Conversion board 'small axis' 1710460-Y0005

Y09597 cable to Y0005 conversion

board 'small axis' with power supply

for camera and signal lines to vision

evaluation unit MVS 100

Y0577-W1 cable to conversion

board 'small axis' Y0005

PCB optical system with illumination

Y0029 board

'illumination control PCB camera'

Camera amplifier Sony XC77

Cable CCD chip

camera amplifier

Housing with CCD chip
